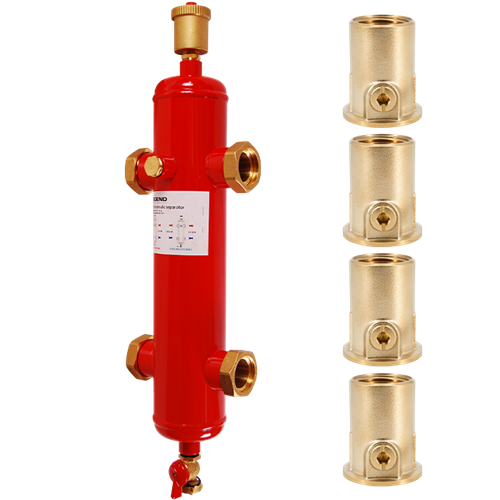

Legend Valve 800-836VF 1-1/4 ISO Valve FNPT Hydro Separator

Product Description

The Legend Valve 800-836VF is a hydraulic separator kit designed for efficient performance in plumbing applications. With a nominal size of one and one-fourth inches and FNPT connection, this unit is ideal for various installation needs. It operates at a working pressure of one hundred and forty-five psi and measures twenty-three point three inches in length. This product meets industry standards and is imported for quality assurance.

• High capacity field-serviceable automatic air vent with built-in check valve
• Compact insulation jacket for enhanced efficiency
• 1/4 turn drain valve with garden hose thread and tethered cap

Product Highlights

This hydraulic separator ensures optimal performance by allowing easy servicing and maintenance. It is suitable for high temperature applications, reaching up to two hundred thirty degrees Fahrenheit without insulation.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Warranty: 5 Years

Technical Specifications

• Connection Type: FNPT
• Dimensions: 23.3 inches long
• Domestic/Import: Import
• Nominal Size: 1-1/4 inches
• Series: HS-808
• Working Pressure: 145 psi
