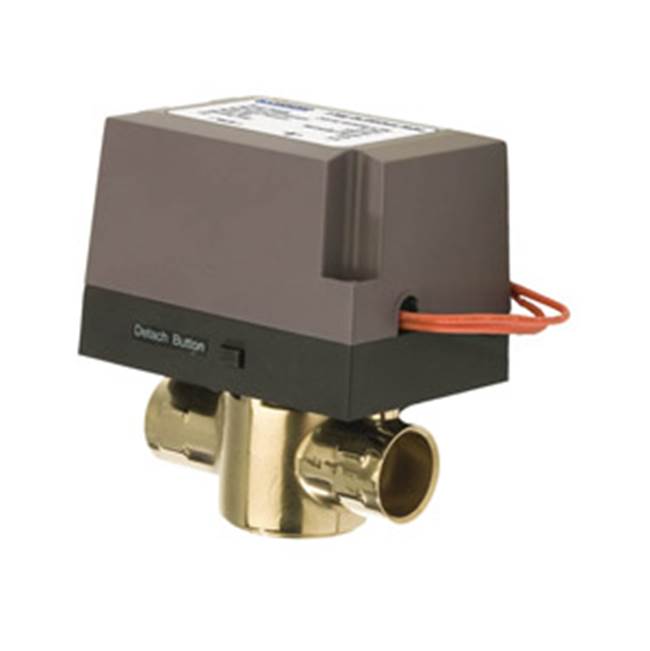

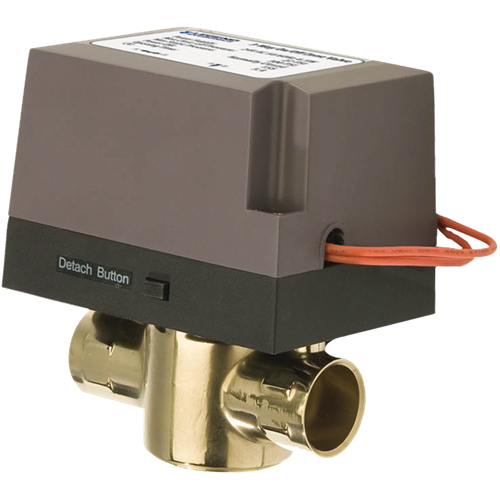

Legend Valve 800-705 2-way zone valve 1 inches swt

Product Description

The LEGEND VALVE 800-705 is a 2-Way Zone Valve, LZV-2 series, designed for precise fluid flow control in heating/cooling or low pressure steam systems. This valve features a 1 inch nominal size, a 300 psi pressure rating, and an 8 Cv flow coefficient. Operating on 250 VAC with a 3 A amperage rating, it is constructed from durable forged brass and is suitable for water temperatures ranging from 36 to 201 deg F.

• Suitable for heating/cooling or low pressure steam systems, including glycol mix up to 50%.
• Features a long-life synchronous motor and a stainless steel shaft with EPDM ball and seals.
• Designed for high differential pressure close-off, ensuring low noise operation.

Product Highlights

This normally closed 2-way zone valve provides reliable flow control with a 15-second time cycle and robust forged brass construction.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 800-705
• Country of Origin: China

Technical Specifications

• Amperage Rating: 3 A
• Coefficient of Volume: 8 Cv
• End Style: C
• Material: Forged Brass
• Nominal Size: 1 in
• Pressure Rating: 300 psi
• Series: LZV-2
• Time Cycle: 15 s
• Type: 2-Way
• Voltage Rating: 250 VAC
• Water Temperature: 36 to 201 deg F
• Connection Type: Sweat
• Configuration: Normally Closed
• Model: LZV-2
• Product Type: Zone Valve
