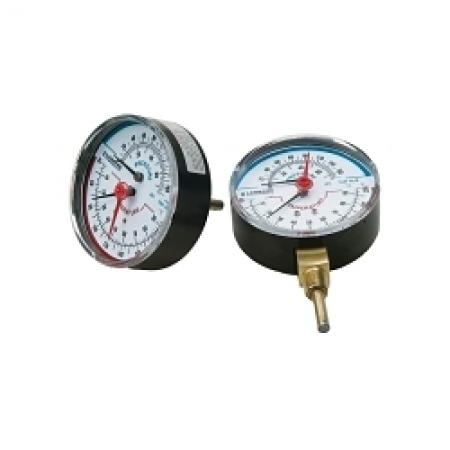

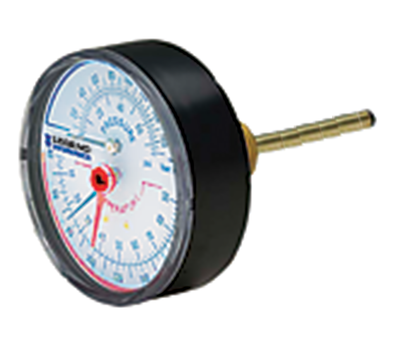

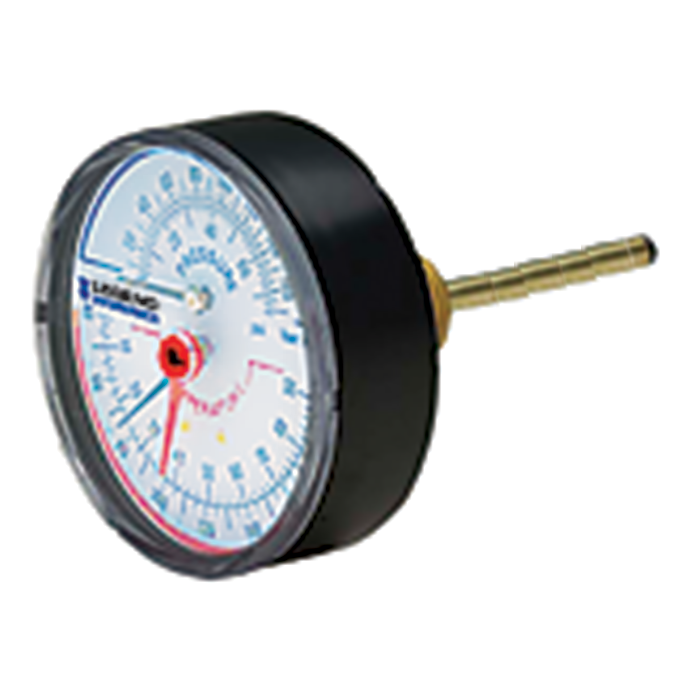

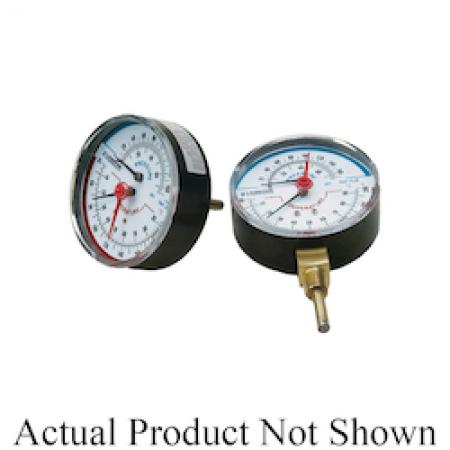

Legend Valve 800-662 1/4 Back Mount T & P Gauge

Product Description

The Legend Valve pressure and temperature gauge, MPN 800-662, is designed for HVAC and plumbing applications. This gauge features a compact size and provides reliable measurements of temperature and pressure.

• Pressure range up to seventy-five psi.
• Temperature range from forty to two hundred degrees Fahrenheit.
• Durable steel case with a painted black finish.

Product Highlights

This T&P gauge is used in various plumbing and heating systems for monitoring pressure and temperature effectively.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Series: T-825

Technical Specifications

• Accuracy: +/- 3% Full Scale
• Connection Size: 1/4 inch MNPT
• Dial Diameter: 3 inches
• Material: Steel Case
• Mounting Type: Rear
• Pressure Range: 0 to 75 psi
• Temperature Rating: 40 to 200 degrees Fahrenheit
