Legend Valve 800-144 5/8 Manifold Connector-Pair

Product Description

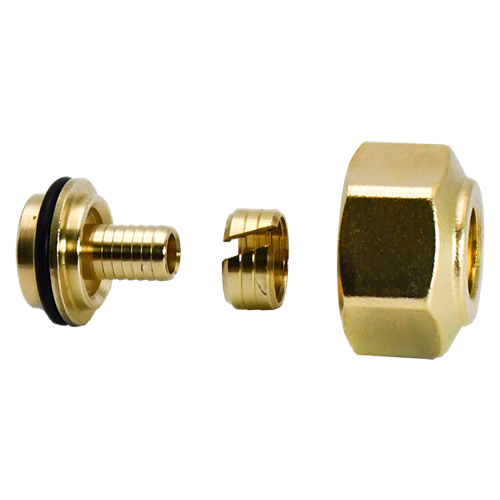

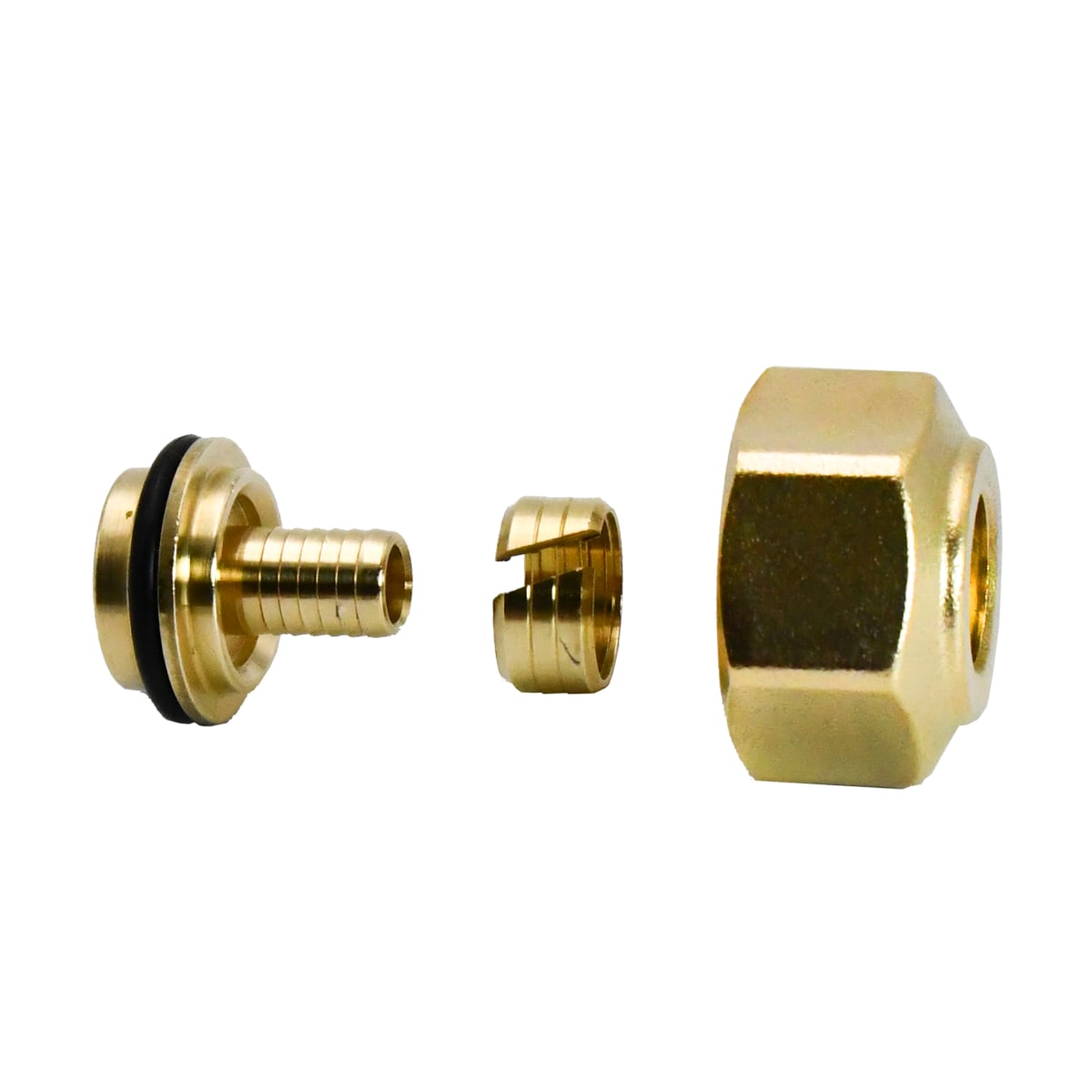

The Legend Valve 800-144 is a 5/8 inch manifold connector-pair designed for PEX tubing applications. This coupling fitting is useful for connecting PEX to manifold systems efficiently.

• Durable split ring compression connection ensures even compression on PEX tubing.
• Reliable O-ring seal provides a superior alternative to traditional washer-type seals.
• No special tools needed; a PEX cutter and adjustable wrench suffice for installation.

Product Highlights

This product is suited for plumbing professionals who work with PEX systems. It offers reliable leak-free performance in a wide range of environments.

Product Information

Standard Information

• Manufacturer: Legend Valve
• UPC: 662545066424

Technical Specifications

• Nominal Size: 5/8 inch
• End Style: PEX x Manifold
• Pressure Rating: 125 psi
• Temperature Rating: 230 degrees F
• Dimensions: 1.14 inches W x 0.86 inches D x 1.27 inches H
• Domestic/Import: Import
• Fitting/Connector Type: Coupling
