Legend Valve 507-515 1/2 F1960 x 8 flanged stub out

Product Description

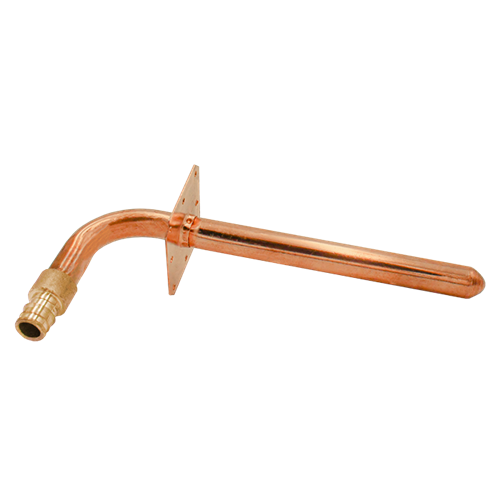

The LEGEND VALVE 507-515 is a wall mount stub-out fitting designed for plumbing applications. This copper stub-out features a 1/2 x 8 inch nominal size with PEX x Copper end styles, suitable for various connections. It is rated for a maximum pressure of 125 psi and can withstand temperatures up to 180 degrees F, making it versatile for different installations. This fitting ensures secure and reliable connections in residential or commercial plumbing systems.

• 125 psi Pressure Rating
• 180 deg F Temperature Rating
• Copper Material

Product Highlights

Wall mount copper stub-out with PEX x Copper ends, rated for 125 psi and 180°F.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 507-515

Technical Specifications

• Type: Wall Mount
• Material: Copper
• End Style: PEX x Copper
• Nominal Size: 1/2 x 8 in
• Pressure Rating: 125 psi
• Temperature Rating: 180 deg F
• Fitting/Connector Type: Stub-Out
• UPC: 662545140339
• Configuration: PEX (F1960) x Closed
