Legend Valve 507-505 1/2 inches F1960 PEX x 8 inches Stub Out

Product Description

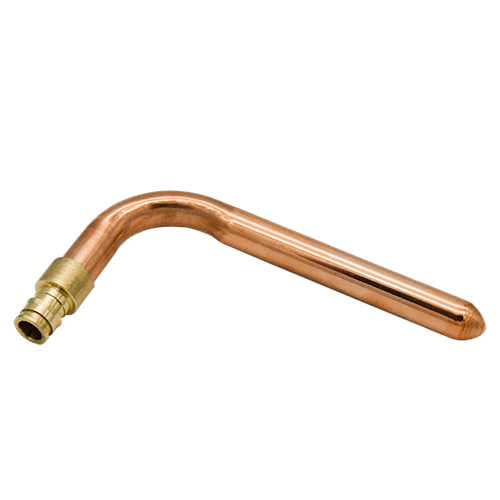

The LEGEND VALVE 507-505 Stub-Out is a wall mount fitting designed for plumbing applications. This PEX x Copper end style stub-out measures 1/2 x 8 inches nominally and is rated for a maximum pressure of 125 psi and a temperature of 180 degrees F. It is suitable for connecting PEX piping to copper fixtures, providing a secure and reliable connection point within a plumbing system.

• Wall mount design for secure installation in plumbing systems.
• PEX x Copper end style facilitates versatile connections.
• Rated for 125 psi pressure and 180 deg F temperature for reliable performance.

Product Highlights

Durable copper construction, ideal for PEX to copper plumbing transitions.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 507-505
• Country of Origin: Import

Technical Specifications

• Type: Wall Mount
• Material: Copper
• End Style: PEX x Copper
• Nominal Size: 1/2 x 8 in
• Domestic/Import: Import
• Pressure Rating: 125 psi
• Temperature Rating: 180 deg F
• Fitting/Connector Type: Stub-Out
• UPC: 662545140315
• Configuration: PEX (F1960) x Closed
