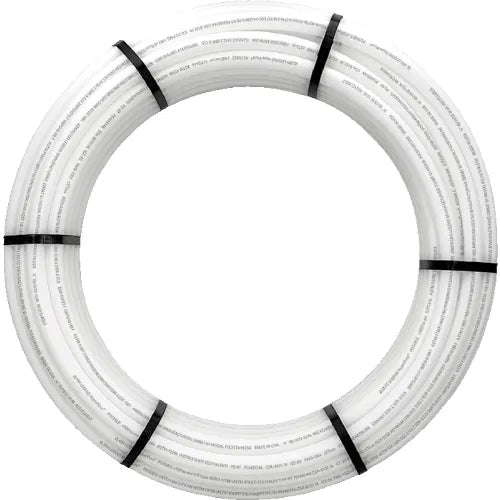

Legend Valve 500-38-100 HyperPure PE-RT Tubing 100 feet Coil

Product Description

The LEGEND VALVE 500-38-100 HyperPure Bi-Modal PE-RT Tube is manufactured using HyperTherm 2399 NT Bimodal PE-RT by The Dow Chemical Company. This 3/8" I.D. x 1/2" O.D. tubing comes in a 100' coil and is designed for potable water systems. It is rated for 200 psi at 73°F and 100 psi at 180°F.

• BPA Free
• Minimum bend radius equal to 6x the tubing outside diameter
• 100-year limited warranty

Product Highlights

Durable PE-RT tubing suitable for hot and cold water distribution. Certified to ANSI/NSF 14 and 61, and compliant with ASTM F2769 and CSA B137.18 standards.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 500-38-100
• Country of Origin: United States

Technical Specifications

• Type: Potable Water Tubing
• Brand: Legend Valve
• Material: Polyethylene Resin
• Length: 100 ft
• Diameter: 3/8 in
• Package Quantity: 1
• Bend Radius: 3 in
• Temperature Range: 73°F - 180°F °F
• Operating Pressure: 200
• Wall Thickness: 1/16 in
• Outside Diameter: 1/2 in
• Inside Dimensions: 3/8"
• Outside Dimension: 1/2
• Manufacturers Part Number: 500-38-100
• Certifications: ASTM F2769, ASTM E84, ANSI/NSF 14, CSA B137.18
• Operating Temperature Range: 73°F - 180°F
• Domestic/Import: Domestic
• End Style: CTS
• Schedule Rating: SDR-9
• Temperature Rating: 73 deg F
• Working Pressure: 200 psi
• MFR #: 500-38-100
• Zoro #: G2009308
• UPC #: 662545117904
• Country of Origin: United States
• Size: 3/8"
• Standards: 100p.s.i. @ 180°F, 200 p.s.i. @ 73°F, SDR 9
• Connection Type: 100' Coil
