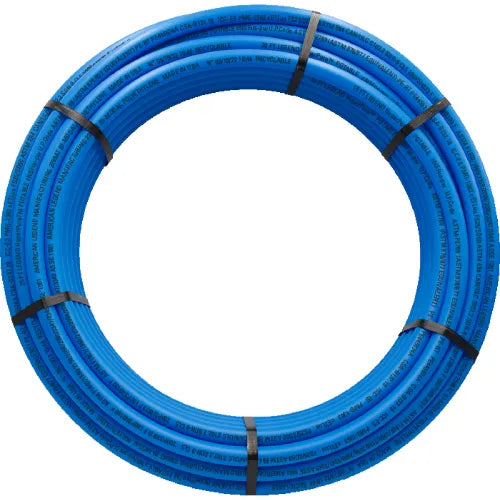

Legend Valve 500-10-300B Hyperpure PE-RT Tubing 200 psi 1 inch I.D. x 1-1/8 inch O.D. x 300 foot Coil

Product Description

The LEGEND VALVE 500-10-300B HyperPure PE-RT Tubing is a potable water tubing manufactured from HyperTherm 2399 NT Bimodal PE-RT by The Dow Chemical Company. This tubing is designed for hot and cold water distribution systems, offering a 200 psi operating pressure at 73°F and 100 psi at 180°F. It features a 1 inch inside diameter, 1-1/8 inch outside diameter, and comes in a 300 foot coil.

• BPA Free
• Minimum bend radius equal to 6x the tubing outside diameter

Product Highlights

HyperPure PE-RT tubing for potable water systems, certified to ASTM F2769 and NSF 14.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 500-10-300B
• Country of Origin: USA

Technical Specifications

• Brand: Legend Valve
• MPN: 500-10-300B
• Product Type: Potable Water Tubing
• Material: Polyethylene Resin
• Color: Blue
• Style: Coil
• Length: 300 ft
• Inside Diameter: 1 in
• Outside Diameter: 1-1/8 in
• Wall Thickness: 1/8 in
• Bend Radius: 6-3/4 in
• Operating Temperature Range: 73°F - 180°F
• Operating Pressure: 200 psi
• Certifications: ASTM F2769, ASTM E84, ANSI/NSF 14, CSA B137.18
• Schedule Rating: SDR-9
• Origin: Domestic
• End Style: CTS
• Linear Expansion Rate: 1.1"/10°F/100 ft.
• Capacity per 100 ft: 3.04 Gallons
• Standards: CSA B137.18, ASTM F1807, F2080, F2098, F2159, F1960, F3347, F3348, ASSE 1061-Fitting Standards
