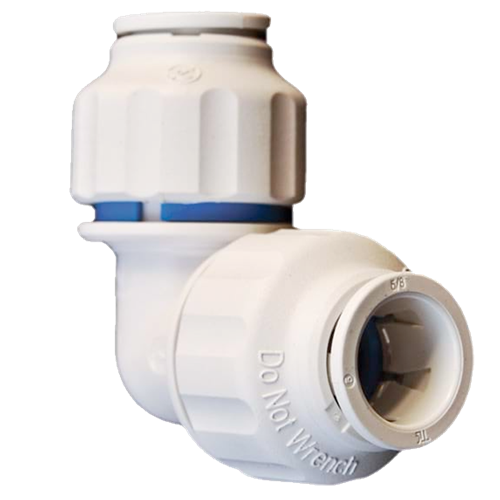

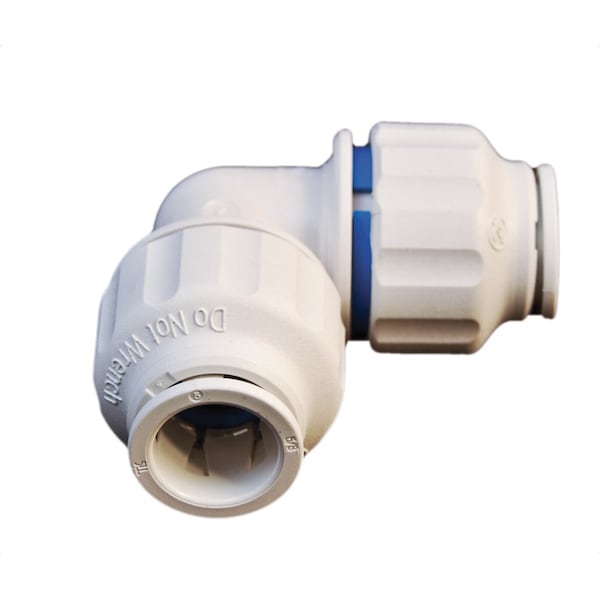

Legend Valve 465-047 Push Fit Elbow 3/4 Inch 90 Degree

Product Description

The LEGEND VALVE 465-047 Turn-n-Loc Elbow is a 90-degree push-fit fitting designed for plumbing and hydronic heating systems. Constructed from durable polysulfone resin, this 3/4 inch nominal elbow offers a secure, easy-to-install connection. It is rated for 250 psi CWP pressure at 73 degrees F, ensuring reliable performance in various applications. The push-fit end style simplifies installation, eliminating the need for sweating, gluing, or crimping.

• Simple push-to-connect installation eliminates the need for sweating, gluing or crimping, substantially lowering installation time and labor costs.
• Grip collar feature allows tubing removal without the need for a separate, often mis-placed, removal tool.
• A secure, easy-to-install fitting, ideal for making permanent connections on plumbing distribution and hydronic heating systems.

Product Highlights

Durable polysulfone resin construction with patented locking feature absorbs tubing line stresses and temperature variations.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 465-047
• Country of Origin: Korea, Republic of

Technical Specifications

• Material: Polysulfone Resin
• Connection Type: Push-Fit
• Nominal Size: 3/4 in
• Country of Origin: Import
• Pressure and Temperature Ratings: 250 psi CWP @ 73 deg F, 100 psi @ 180 deg F
• Fitting Type: 90 deg Elbow
• Certifications: ANSI/NSF 14/61-8 and 61-9, ASME A112.18.1, CSA B125.1, UPC/IAPMO Listed, ANSI/ASSE 1061
• UPC: 662545096452
