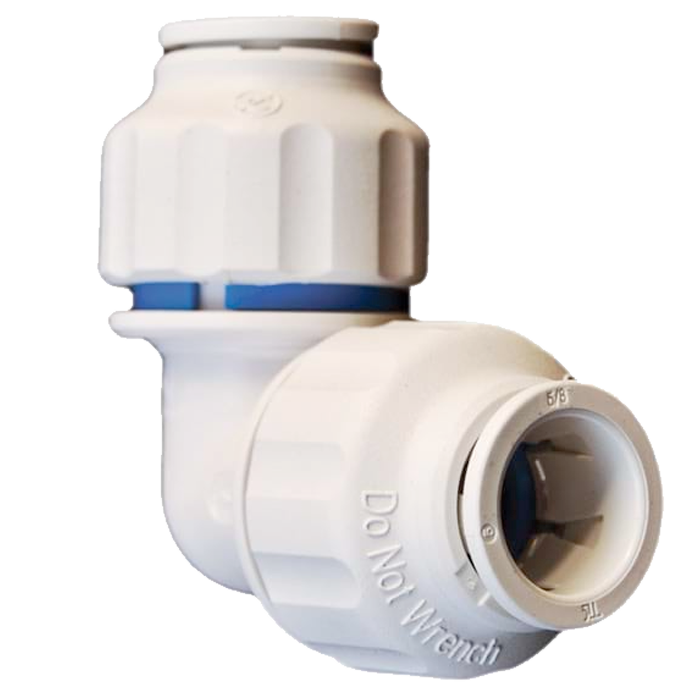

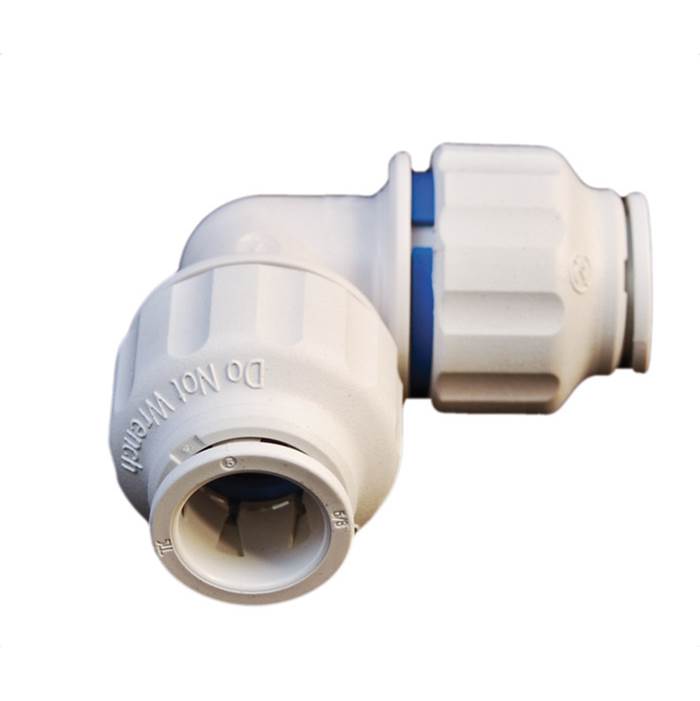

Legend Valve 465-046 Turn-n-Loc Push Elbow 1/2 in 90°

Product Description

Legend Valve 465-046 is a 1/2 in Turn-n-Loc push-fit 90° elbow designed for plumbing and hydronic heating tube connections. The push-to-connect x push-to-connect fitting is molded from polysulfone resin with a patented locking feature and grip collar for removable, reusable installations. It is rated for 250 psi cold working pressure at 73°F and conforms to multiple plumbing standards for potable water use.

• 1/2 in push-to-connect x push-to-connect Turn-n-Loc elbow constructed of polysulfone resin with a patented locking feature
• Pressure ratings: 250 psi CWP @ 73°F; 100 psi @ 180°F; not suitable for steam service
• Includes grip collar for tubing removal, tool-free installation; conforms to ASSE 1061, ANSI/NSF, ASME A112.18.1, CSA B125.1, UPC/IAPMO

Product Highlights

1/2 in Turn-n-Loc push-fit 90° elbow, polysulfone construction, 250 psi @ 73°F, tool-free push-to-connect installation

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 465-046
• Country of Origin: Import

Technical Specifications

• Brand: Legend Valve
• Manufacturer Part Number: 465-046
• Product Type: Elbow fitting
• Fitting/Connector Type: 90° Elbow
• Connection Type: Push-to-connect x Push-to-connect (Turn-n-Loc)
• End Style: Push-Fit
• Nominal Size: 1/2 in
• Material: Polysulfone resin
• Pressure Rating: 250 psi CWP @ 73°F; 100 psi @ 180°F
• Temperature Rating: Rated per pressure table (73°F and 180°F)
• Service Limitation: Not suitable for steam service
• Standards/Approvals: ASSE 1061; ANSI/NSF; ASME A112.18.1; CSA B125.1; UPC/IAPMO
• UPC: 662545096445
• Country of Origin: Korea, Republic of
• Weight Each: 0.1 LB
• Each Dimensions (inches): 4 x 2.75 x 1.25
• Package Quantity: 1
