Legend Valve 462-625NL 1 inches NL 1960 x 1 inches SWT Adapter 1 inches

Product Description

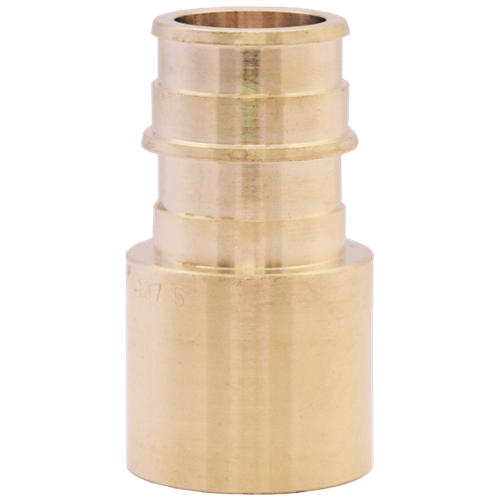

The LEGEND VALVE 462-625NL is a 1" NL 1960 x 1" SWT Adapter, designed for cold expansion PEX x Sweat connections. This adapter is constructed from DZR Lead-Free Brass, ensuring durability and compliance with lead-free standards for potable water applications. It features a 1-inch connection size for both F1960 PEX and Sweat connections, rated for 100 psi pressure and up to 180 deg F. This forged brass fitting meets ASTM F1960 material specifications.

• Lead-free DZR Brass construction for potable water applications.
• Designed for cold expansion PEX (F1960) to Sweat connections.
• Rated for 100 psi pressure and temperatures up to 180 deg F.

Product Highlights

Lead-free DZR brass adapter for PEX and Sweat connections.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 462-625NL
• Country of Origin: China

Technical Specifications

• Manufacturer: LEGEND VALVE
• Connection Size: 1"
• Applicable Standard: ASTM F 1960, CSA 137.5, NSF/ANSI 14/61, IAPMO
• Connection Type: PEX (F1960) x Sweat
• Country of Origin: China
• Fitting Type: Adapter
• Material: DZR Lead-Free Brass
• Pressure Rating: 100 psi
• Temperature Rating: 180 deg F
• UPC: 662545127958
• Type: Female
• Application: Potable Water
• Process: Forged
• Material Specification: ASTM F1960
• End Connection: Cold Expansion PEX x Female Soldered
• Finish: No Finish Group
