Legend Valve 461-915 Ppsu Pex Coupling 1 Inch F1960

Product Description

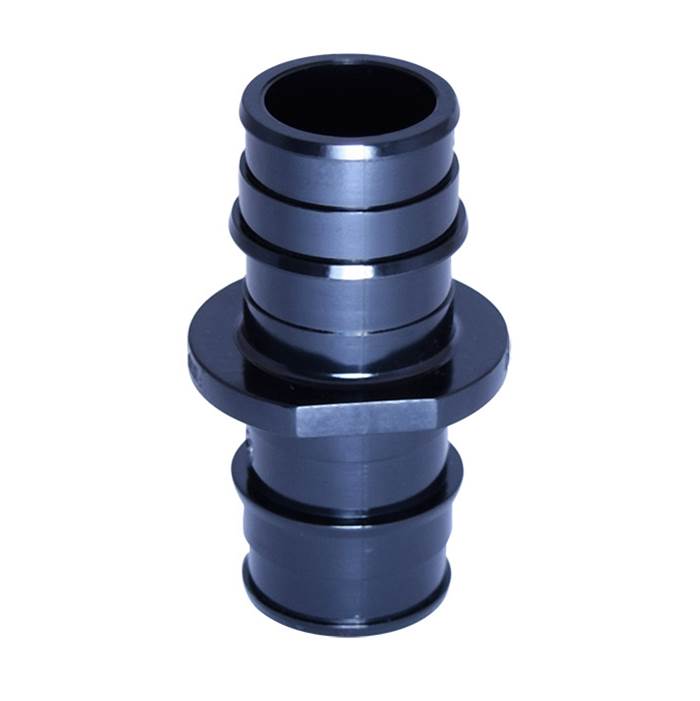

The LEGEND VALVE 461-915 is a 1-inch PPSU PEX coupling manufactured to the ASTM F1960 standard. PPSU (polyphenylsulfone) is a high-performance thermoplastic known for its resistance to heat, pressure, and chemical exposure, making it a dependable choice for PEX expansion-style connections. This coupling joins two sections of 1-inch PEX tubing using the cold-expansion method required by the F1960 specification. Licensed plumbers and pipefitters install this fitting in potable water distribution and radiant heating systems where a reliable, tool-driven connection is required.

This coupling is suited for residential and light commercial plumbing applications where 1-inch PEX-A tubing is used. It is commonly installed in water supply lines, manifold distribution systems, and hydronic radiant floor heating layouts. The F1960 cold-expansion method requires an expansion tool and the appropriate size expansion ring or integrated ring fitting. This part is intended for use with PEX-A tubing only, as the cold-expansion process is not compatible with PEX-B or PEX-C tubing types.

Key Features

• PPSU construction offers high heat and pressure resistance for demanding plumbing environments
• Meets ASTM F1960 standard for cold-expansion PEX fittings
• 1-inch nominal size for use with standard 1-inch PEX-A tubing
• No-solder, no-crimp installation using the cold-expansion method
• Suitable for potable water and hydronic heating applications

Compatibility

Designed as an F1960-compliant cold-expansion PEX coupling for use with 1-inch PEX-A tubing in residential and light commercial plumbing and radiant heating systems.

Installation Notes

Installation must be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off the water supply and relieve system pressure before cutting into any existing line. A calibrated F1960 expansion tool and correctly sized expansion rings are required to make the connection. Do not use this fitting with PEX-B or PEX-C tubing, as the cold-expansion method requires the memory properties of PEX-A.

Technical Specifications

• Standard: ASTM F1960
• Material: PPSU (Polyphenylsulfone)
• Nominal Size: 1 inch
• Connection Type: Cold Expansion PEX
• UPC: 662545126883

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 461-915
