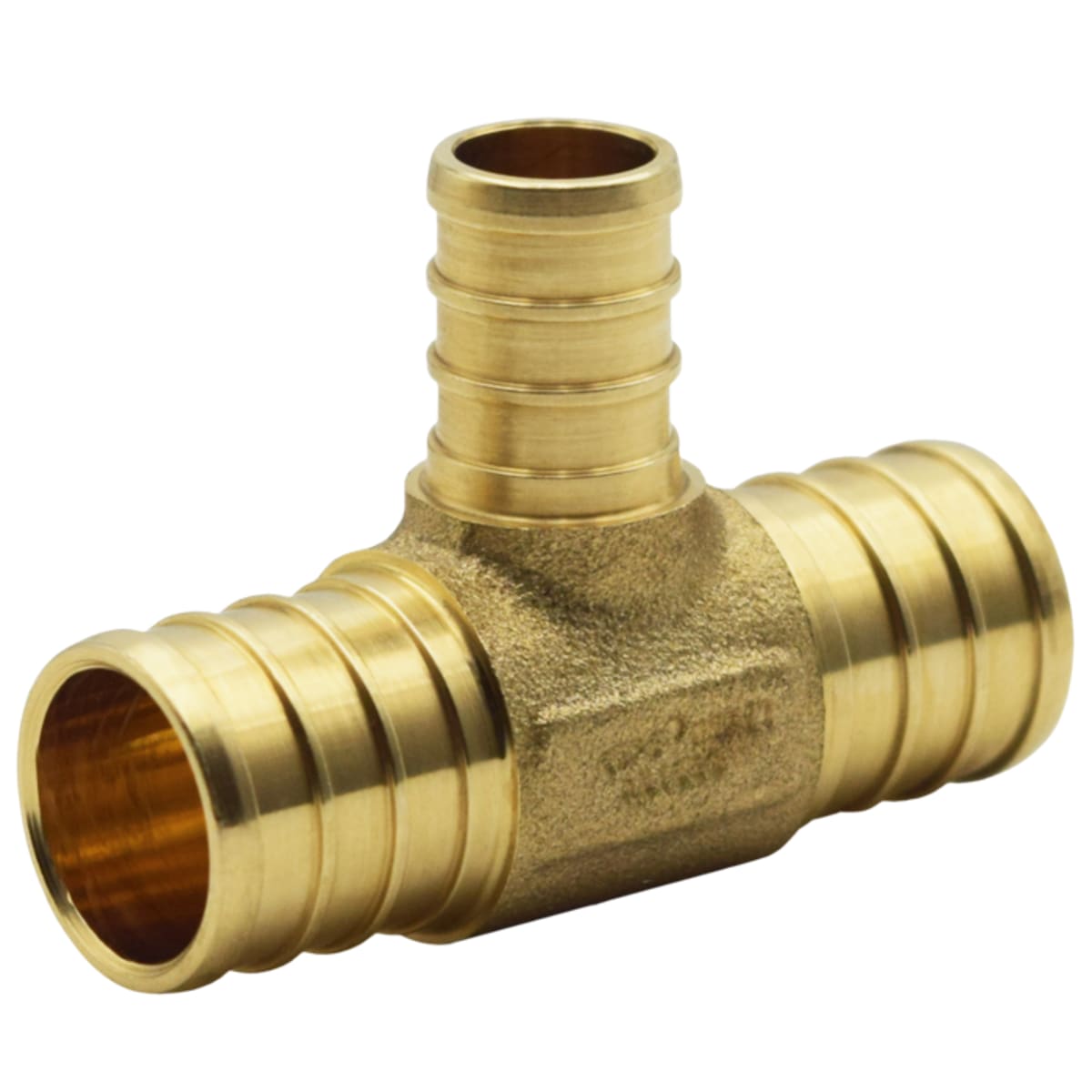

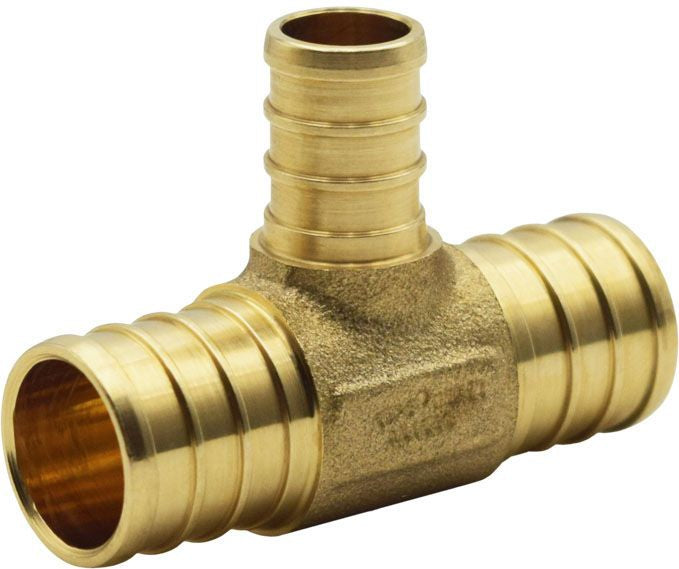

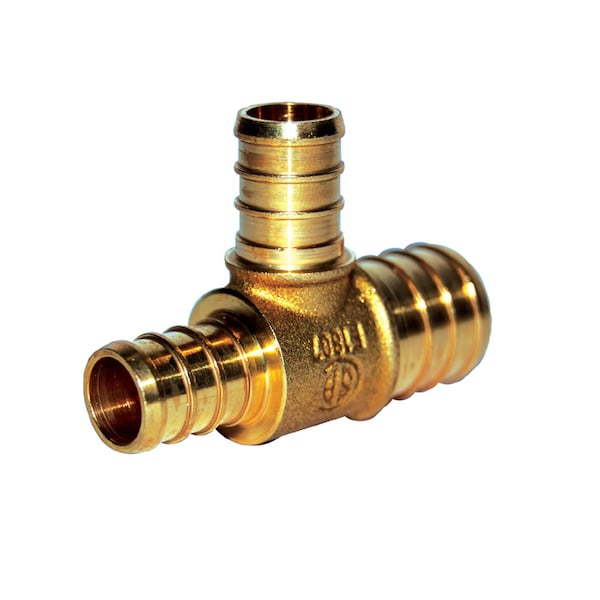

Legend Valve 460-208NL 1/2 x 1/2 x 3/4 PEX Tee (1 Each)

Product Description

Legend Valve 460-208NL is a 1/2 x 1/2 x 3/4 reducing tee for PEX systems, constructed from no-lead dezincification-resistant (DZR) forged brass. The fitting features F1807 barbed PEX connections on all three ports and meets ASTM F1807/F876/F877 standards for potable water distribution. It is rated to 100 psi and 180 deg F and is compatible with copper crimp rings or stainless steel clamp rings.

• No-lead DZR forged brass construction (UNS C46500) for potable water applications
• F1807 PEX connections (1/2 in x 1/2 in x 3/4 in) compatible with crimp and clamp rings
• Meets ASTM F1807/F876/F877 and ANSI/ASME B1.20.1; pressure rating 100 psi, temperature rating 180 deg F

Product Highlights

Reducing PEX tee, F1807 (crimp) connections, no-lead DZR forged brass, rated 100 psi and 180 deg F

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 460-208NL
• Country of Origin: China

Technical Specifications

• Brand: Legend Valve
• Manufacturer Part Number (MPN): 460-208NL
• UPC: 662545109886
• Size: 1/2 in x 1/2 in x 3/4 in
• Fitting Type: Reducing tee
• Connection Type: F1807 PEX (barbed) x PEX x PEX
• Material: No-lead / DZR forged brass (UNS C46500)
• Material Specification: ASTM F876, ASTM F877, ASTM F1807
• Process: Forged
• Pressure Rating: 100 psi (non-shock)
• Temperature Rating: 180 deg F
• Standards / Certifications: ANSI/ASME B1.20.1, ANSI/NSF 14/61G, CUPC/IAPMO
• Application: Potable water distribution, hot and cold water plumbing
• Compatibility: Designed for use with copper crimp rings (ASTM F1807) or stainless steel clamp rings (ASTM F2098)
• Weight Each: 0.06 lb
• Each Dimensions (inches): 1.2 x 2.15 x 0.85
• Carton Quantity: 25 Each
• Case Quantity: 250 Each
• Carton Dimensions (inches): 6.3 x 6.65 x 1.55
• Case Dimensions (inches): 10.85 x 9.1 x 7.7
• Country of Origin: China
