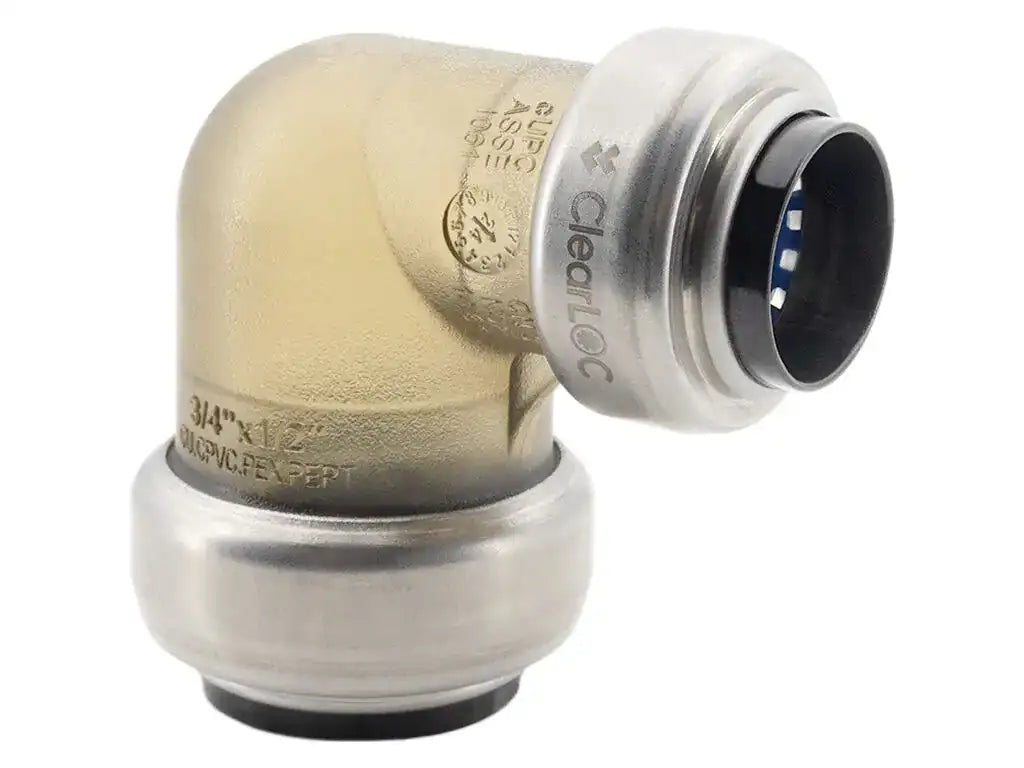

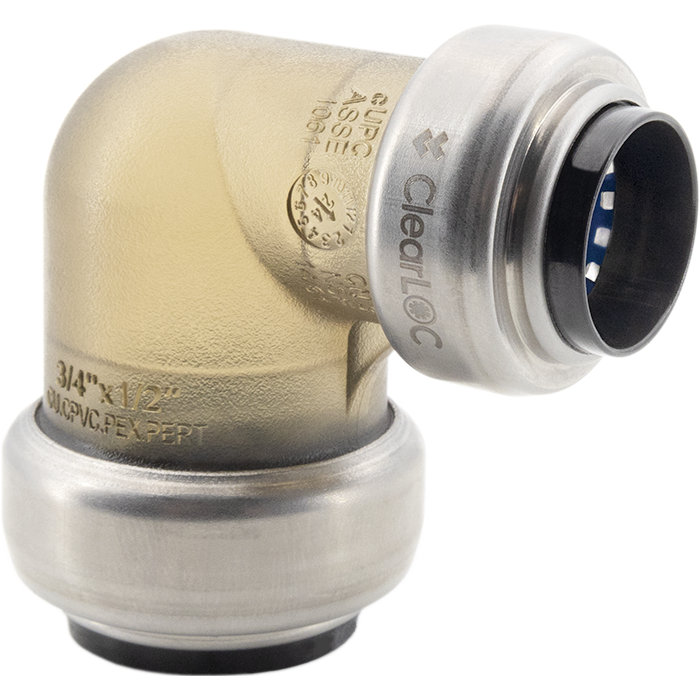

Legend Valve 457-084 3/4 x 1/2 Push Fit Elbow

Product Description

The LEGEND VALVE 457-084 is a 3/4" x 1/2" ClearLOC reducing elbow designed for seamless connections. Its transparent body allows for visual verification of the connection point, ensuring the tube reaches the integrated stop. Compatible with PE-RT, PEX, copper, and CPVC tubing. It installs quickly, eliminating the need to measure insertion depths.

• Features a push-to-connect x push-to-connect configuration.
• Constructed from durable PPSU material.
• Rated to 250 PSI @ 200 F.

Product Highlights

This push-fit reducing elbow provides tight, leak-free connections for plumbing applications. Its innovative design ensures quick and efficient installation.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 457-084
• Country of Origin: China

Technical Specifications

• Ratings: 250 PSI @ 200 F ASSE 1061 NSF / ANSI 14 NSF / ANSI 61
• Size: 3/4" x 1/2"
• Configuration: Push-to-Connect x Push-to-Connect
• Basic Fitting Material: PPSU
• Application: PE-RT, PEX, Copper, CPVC
• Standards: ASSE 1061,ANSI 14, ANSI 61, ANSI 372, ASME B1.20.1, Third Party Certified
• MFR #: 457-084
• UPC #: 662545145914
• Country of Origin: China
• ADA Compliance: No
• Angle: 90 Deg
• End Style: Push x Push
• Side A: 3/4"
• Side B: 1/2"
• Fitting Type: Push to Fit Reducing Elbow
• Item Type: Elbows
• Manufacturer: Legend Valve Company
• MPN: 457-084
• Material: Clearloc
• Product Family: Fittings
• DESCRIPTION: 3/4 x 1/2 PUSH FIT ELBOW
