Legend Valve 457-063 1/2 PUSH x FNPT D.E. Elbow

Product Description

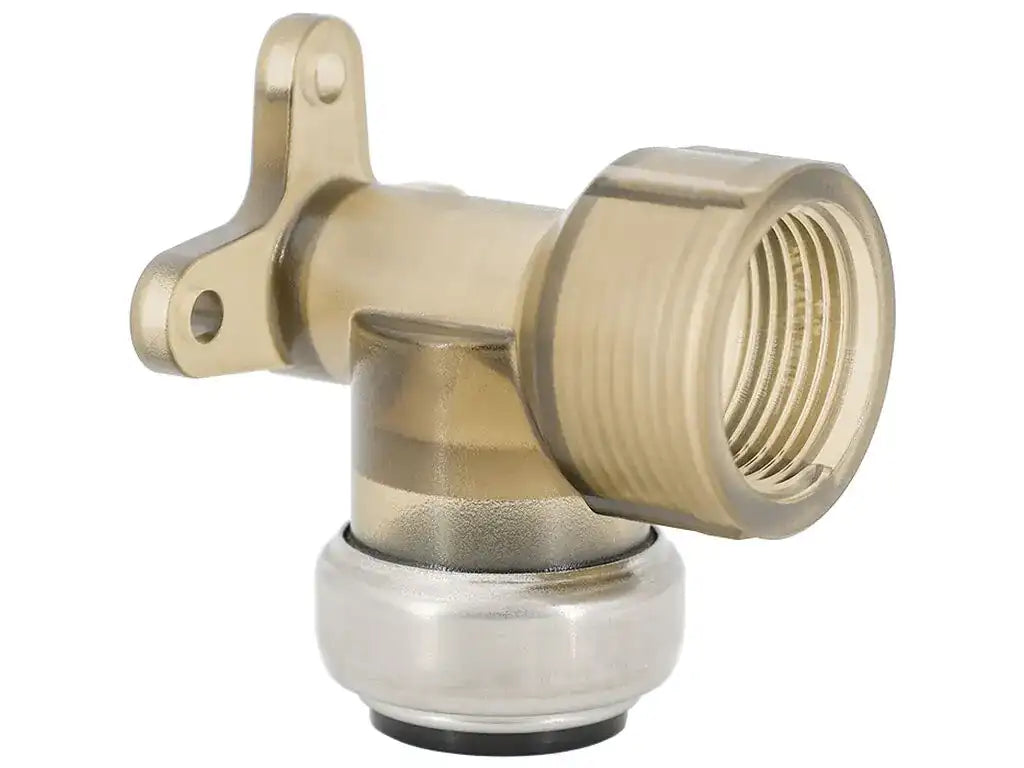

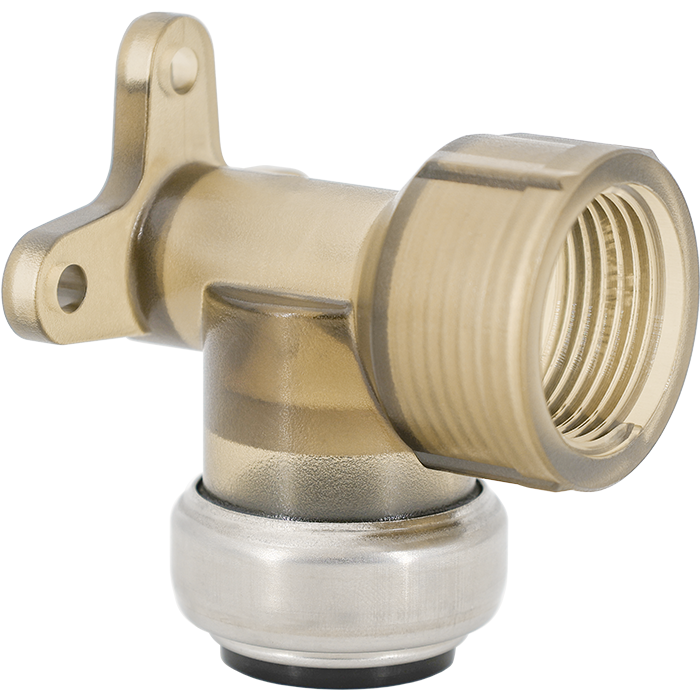

The LEGEND VALVE 457-063 ClearLOC Drop Ear Elbow installs faster than traditional fittings. Its transparent body is made from advanced engineered PPSU resin, the same material used in plastic PEX fittings. Compatible with copper, PE-RT / PEX, and CPVC tubing, these fittings are removable and reusable with release tools.

• Removable and reusable with available release tools
• Compatible with copper, PE-RT / PEX, and CPVC tubing
• Installs 50% faster than traditional fittings

Product Highlights

This elbow fitting is commonly utilized in residential plumbing systems, especially in areas where sharp turns in piping are necessary. It can be found in both new constructions and remodel projects.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 457-063

Technical Specifications

• Ratings: Not for use in a pot filler application. 250 PSI @ 200 F ASSE 1061 NSF / ANSI 14 NSF / ANSI 61
• Size: 1/2"
• Configuration: Push-to-Connect x FNPT
• Brand: Legend Valve
• ADA Compliance: No
• Angle: 90 Deg
• End Style: Push x Female
• Side A: 1/2"
• Side B: 1/2"
• Fitting Type: Push to Fit Drop Ear Elbow
• Item Type: Elbows
• Manufacturer: Legend Valve Company
• MPN: 457-063
• Material: Clearloc
• Product Family: Fittings
