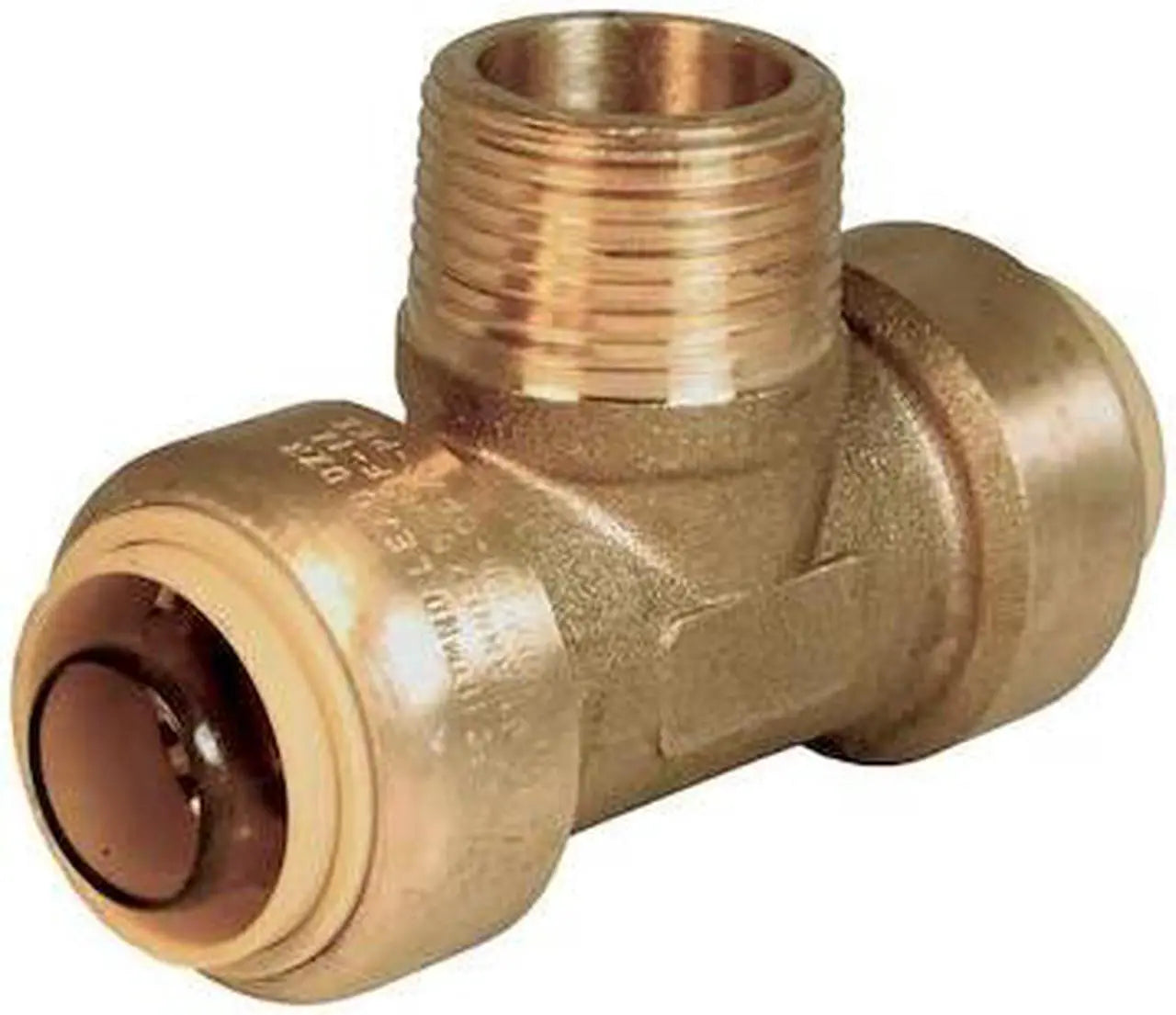

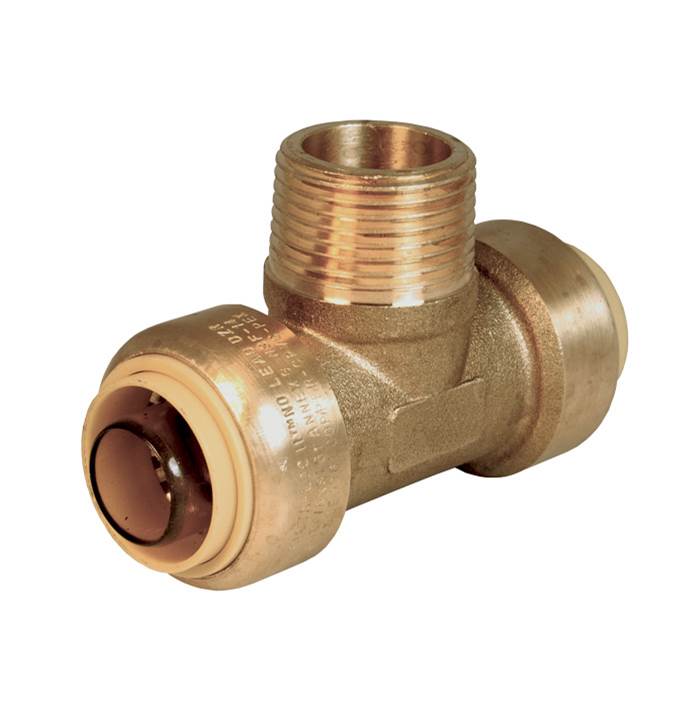

Legend Valve 456-170NL 1/2 Push Fit x MNPT Tee

Product Description

The Legend Valve 456-170NL is a 1/2 inch Insta-Loc II™ lead-free tee fitting designed for plumbing and hydronic heating systems. Constructed from dezincification-resistant (DZR) forged brass, it offers durability and corrosion resistance. This tee features Push-to-Connect x Push-to-Connect x MNPT connections, suitable for copper, PEX, or CPVC tubing. It is rated for 200 psi CWP and temperatures up to 250 degrees F, ensuring reliable performance in various applications.

• Lead-free construction for no-lead plumbing systems.
• Dezincification-resistant (DZR) forged brass for corrosion resistance.
• Compatible with copper, PEX, and CPVC tubing.

Product Highlights

INSTA-LOC II™ fittings are removable and re-useable with release tools, and suitable for underground and non-accessible installations.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 456-170NL
• Country of Origin: China

Technical Specifications

• Material: Brass
• Nominal Size: 1/2 in
• Pressure Rating: 200 psi CWP
• Temperature Rating: 250 deg F
• Method of Manufacture: Forged
• Fitting/Connector Type: Tee
• Standards/Approval: ANSI/ASME B1.20.1, ANSI/NSF 14/61 Annex G, ASSE 1061, UNS C69300, UPC/IAPMO Listed
• UPC: 662545106007
• Connection Configuration: Push-to-Connect x Push-to-Connect x MNPT
• Finish: No Finish Group
• Collection: Push Fit Fittings
