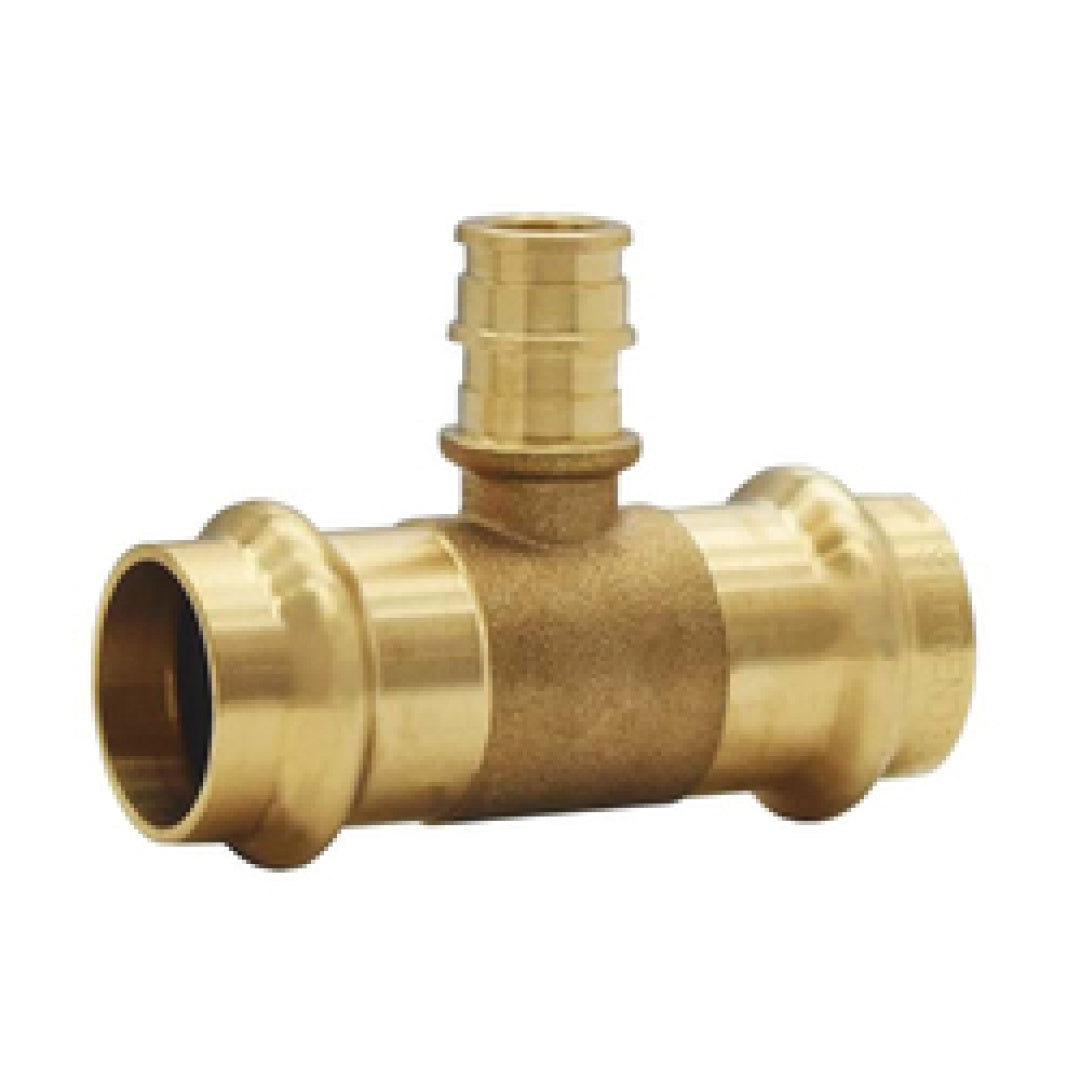

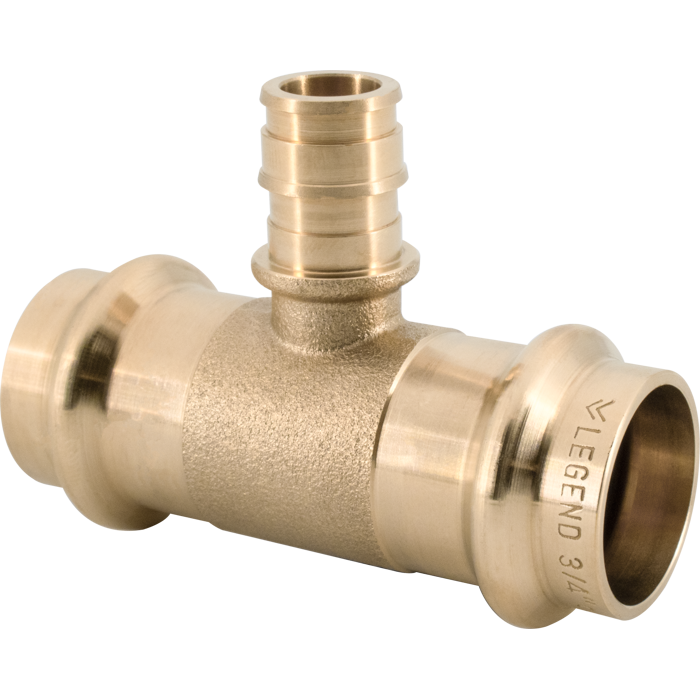

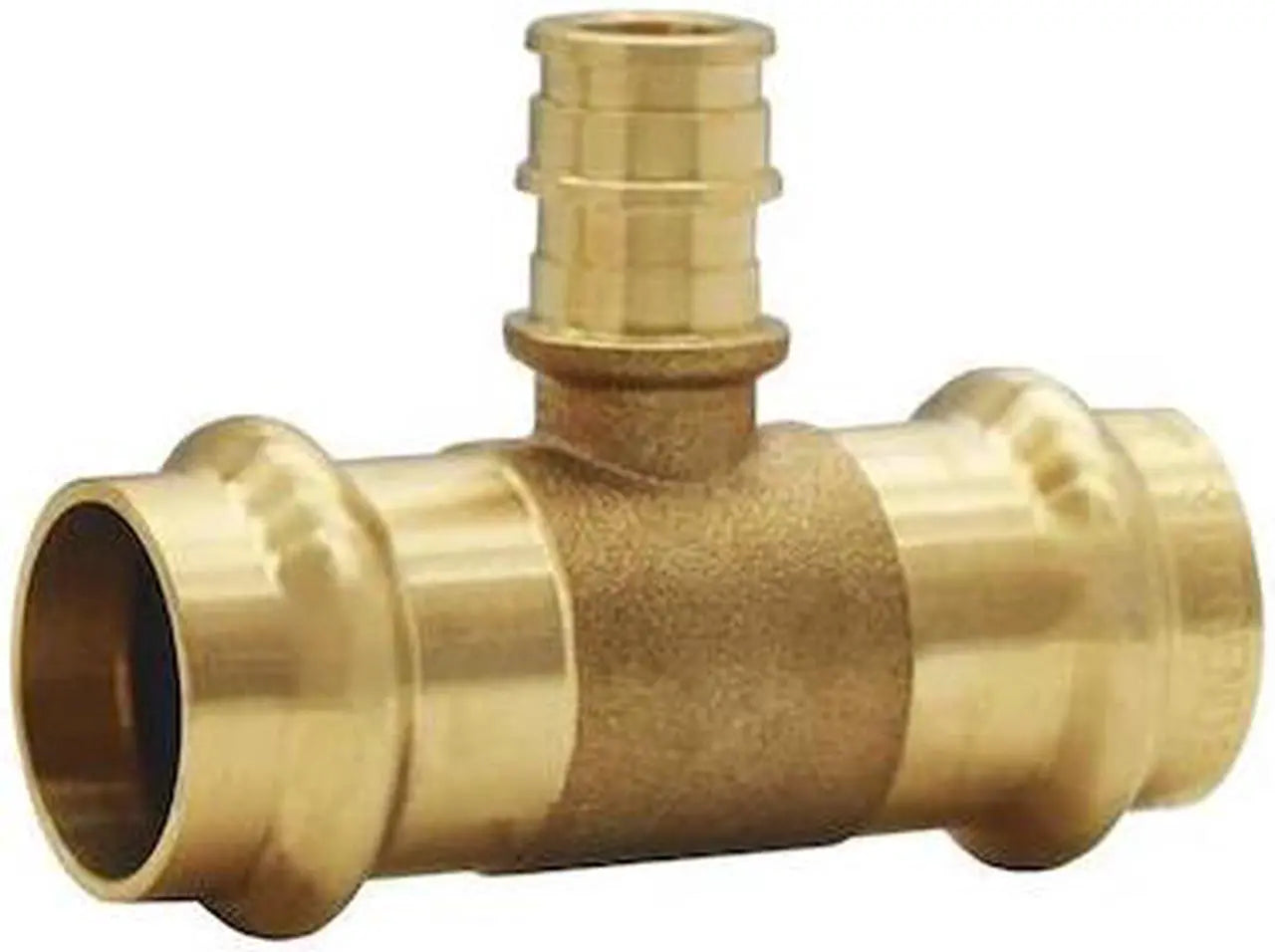

Legend Valve 450-884P 1 inches Press x 3/4 inches F1960 Tee (1 x 1 x 3/4 in)

Product Description

Legend Valve 450-884P is a 1" press x 3/4" F1960 PEX tee for press-to-press and press-to-F1960 PEX connections. The fitting is lead-free, DZR forged brass with press-type end connections designed for ASTM B88 types K, L and M hard-drawn copper tubing and F1960 PEX. It is rated 200 psi CWP / 15 psi WSP and 0 to 250�F, and conforms to ANSI/NSF 14/61/372 and ASME B16.51 standards.

• Press-type end connections eliminate soldering and enable press-to-press and press-to-F1960 PEX installations
• DZR forged brass construction with no-lead design; compatible with ASTM B88 copper tubing and F1960 PEX
• Pressure rating 200 psi CWP / 15 psi WSP and temperature rating 0 to 250�F; certified to ANSI/NSF 14/61/372 and ASME B16.51

Product Highlights

1" x 1" x 3/4" press x press x F1960 PEX tee, lead-free DZR brass, 200 psi CWP / 15 psi WSP, 0�250�F

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 450-884P
• Country of Origin: Import

Technical Specifications

• Manufacturer: LEGEND VALVE
• MPN: 450-884P
• Product Name: 1" Press x 3/4" F1960 PEX Tee
• Fitting Type: Tee
• End Style: Press x Press x F1960 PEX
• Configuration: Press-to-press and press-to-F1960 PEX connections
• Nominal Size: 1 x 1 x 3/4 in
• Material: Brass (DZR forged)
• Lead Free: Yes
• Pressure Rating: 200 psi CWP / 15 psi WSP
• Temperature Rating: 0 to 250 deg F
• Compatible Tubing: ASTM B88 types K, L and M hard-drawn copper; F1960 PEX
• Certifications/Standards: ANSI/NSF 14/61/372; ASME B16.51; NPC of Canada; UPC Listed
• UPC: 662545131825
• Weight (each): 0.35 lb
• Dimensions (each): 1.5 x 3.6 x 2.9 in
• Prop 65 Warning: Contains chemicals known to the State of California to cause cancer and reproductive harm
