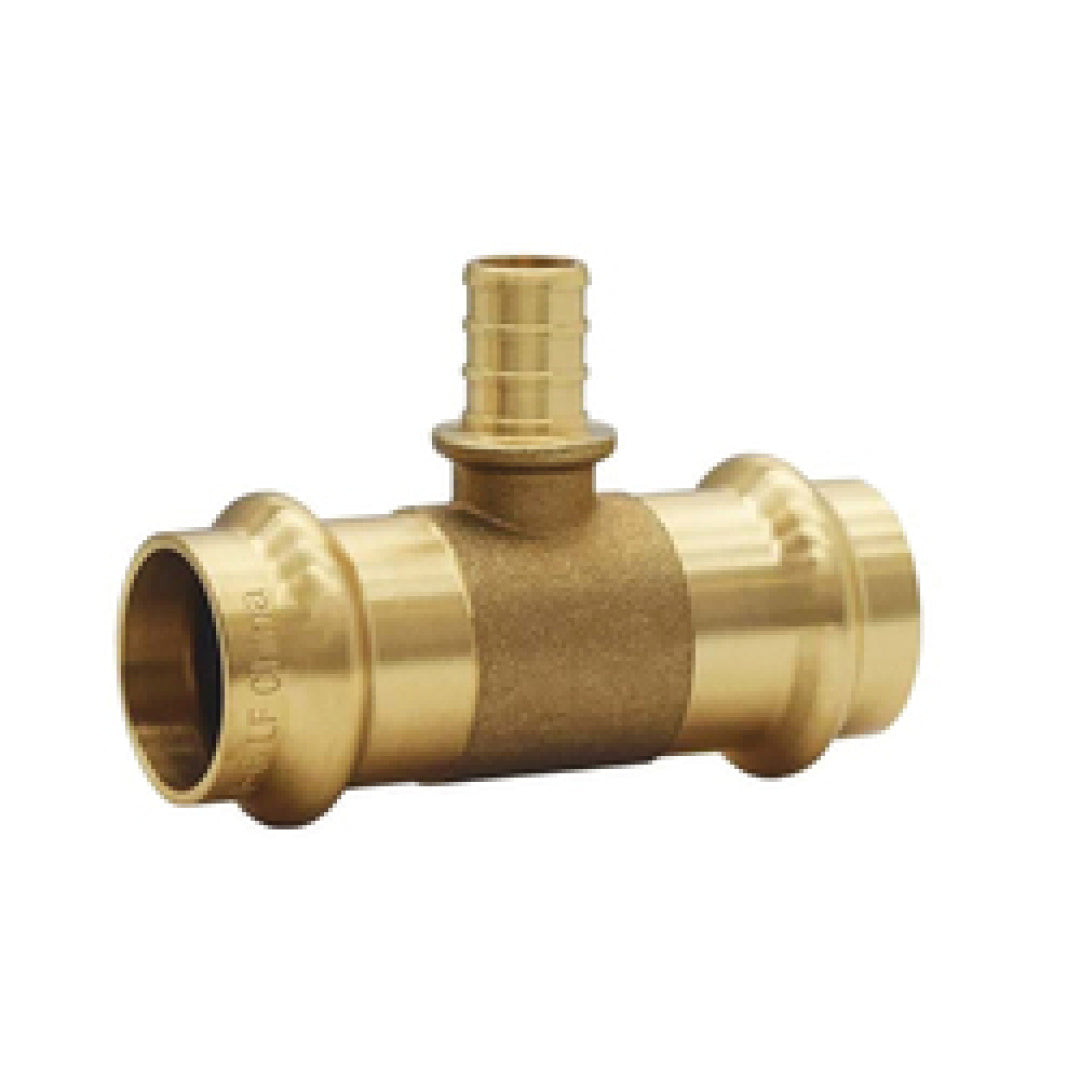

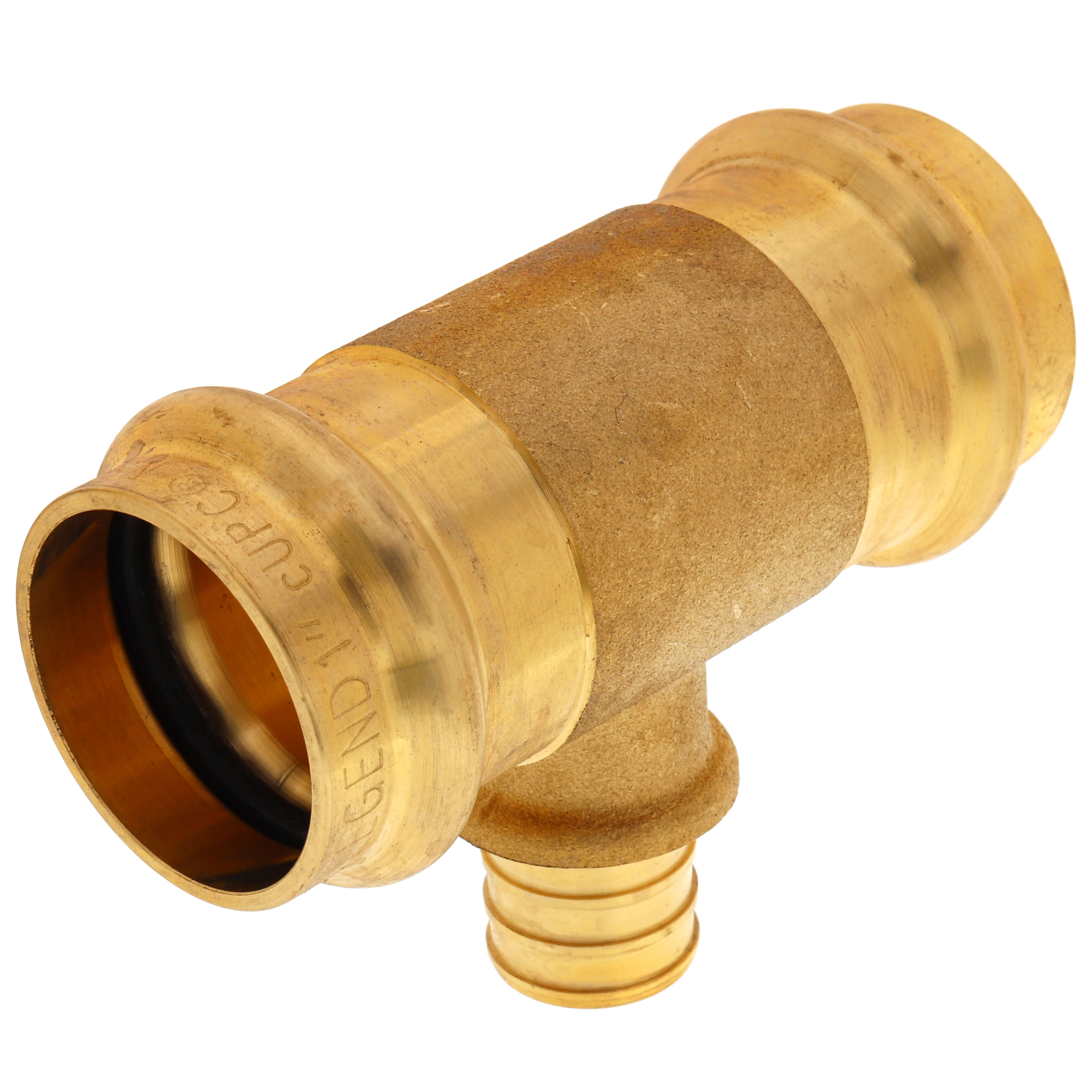

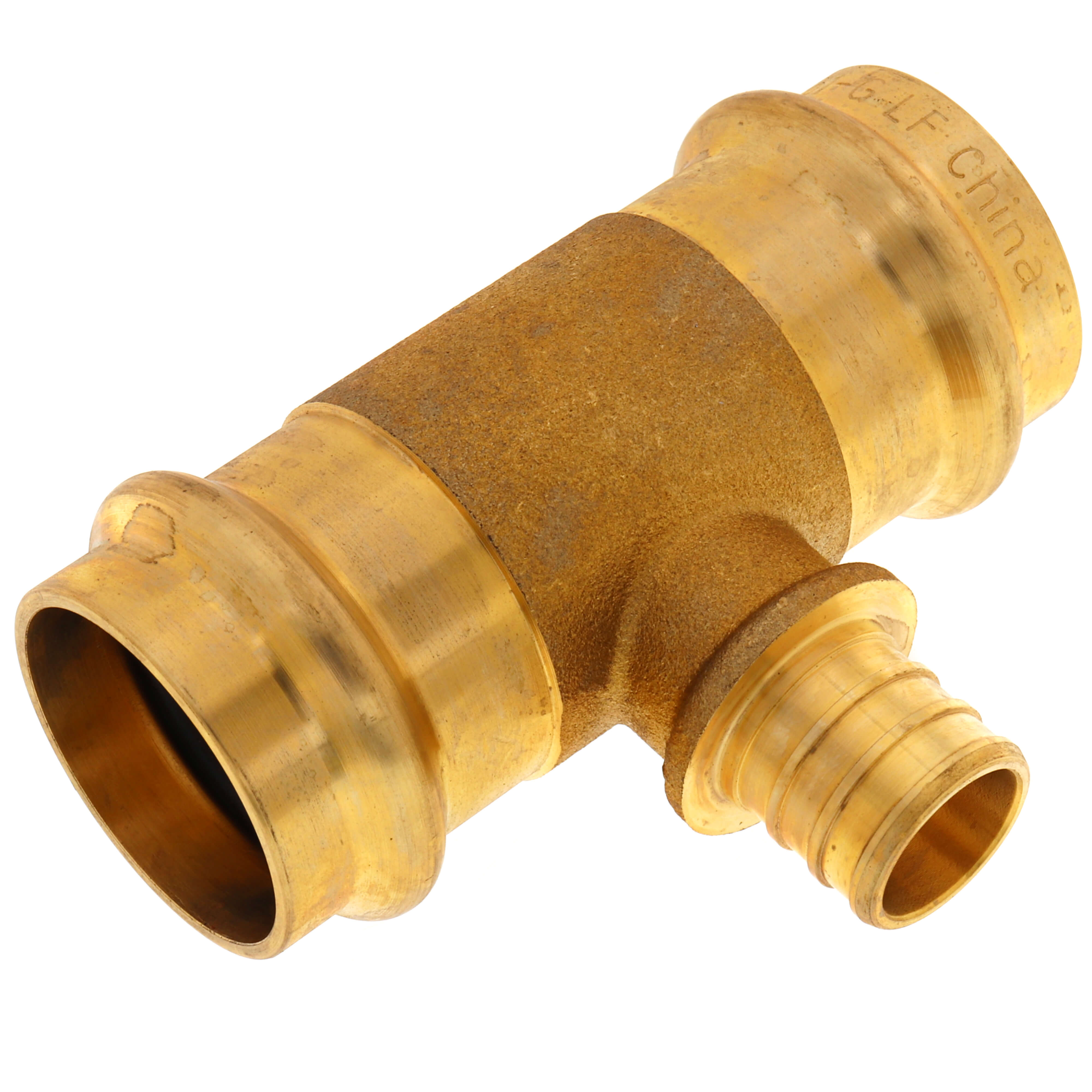

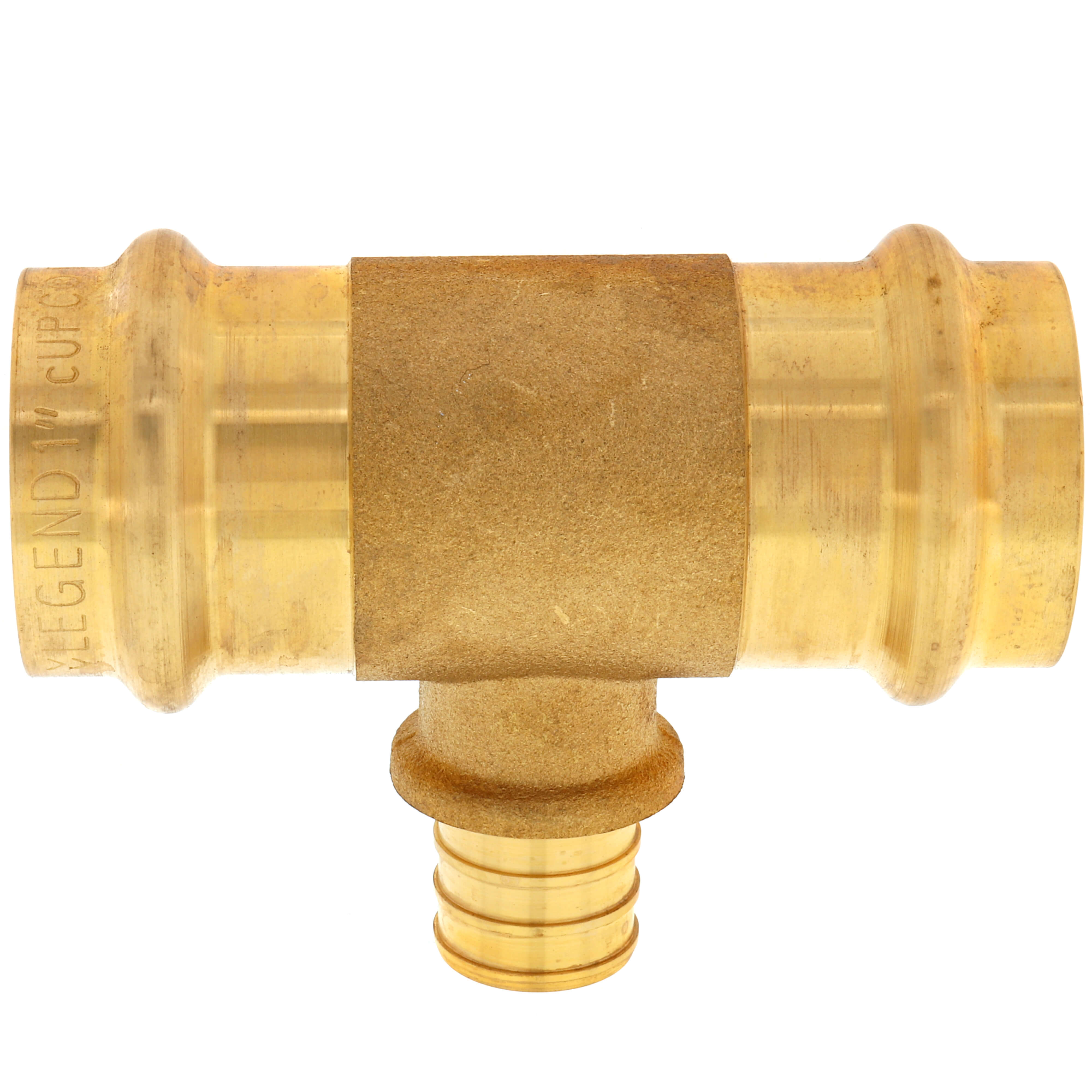

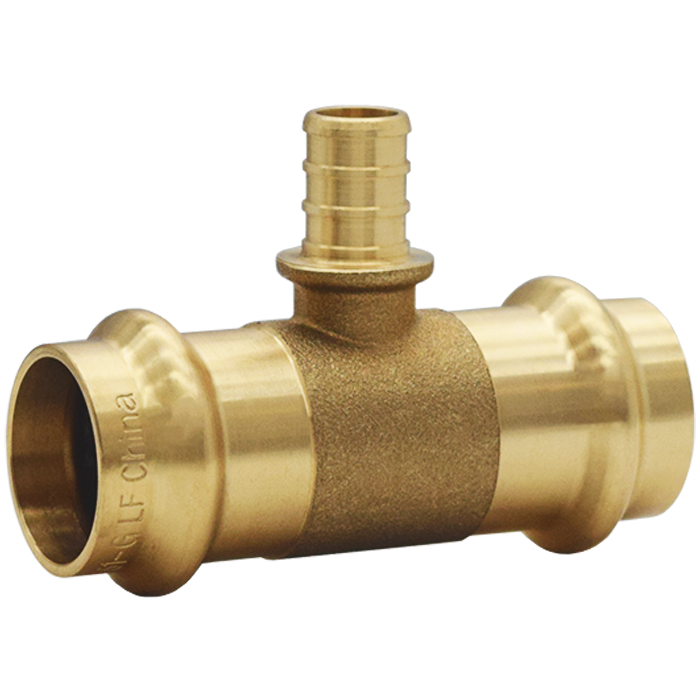

Legend Valve 450-874P 1 in Press x 3/4 in F1807 Tee (1 x 1 x 3/4 in)

Product Description

Legend Valve 450-874P is a 1 in press x 3/4 in F1807 PEX tee designed for press-fit plumbing connections. The fitting is DZR forged brass with press-type ends for sweatless installation onto ASTM B88 copper and F1807 PEX tubing. It is rated 200 psi CWP and 15 psi WSP, with a temperature range of 0 to 250 F, and carries ANSI/NSF and ASME approvals.

• Press x press x F1807 PEX connections eliminate the need for soldering and support press-fit installation
• DZR forged brass construction, no-lead design; nominal size 1 x 1 x 3/4 in and weight approximately 0.35 lb
• Rated 200 psi CWP and 15 psi WSP; temperature range 0 to 250 F; standards include ANSI/NSF 14/61/372 and ASME B16.51

Product Highlights

DZR forged brass press tee, 1 x 1 x 3/4 in, press x press x F1807 PEX, 200 psi CWP / 15 psi WSP, ANSI/NSF and ASME certified

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 450-874P
• Country of Origin: Import

Technical Specifications

• Brand: Legend Valve
• MPN: 450-874P
• Manufacturer: Legend Valve
• Connection Type: Press x Press x F1807 PEX
• Connection Method: Press
• Size: 1 x 1 x 3/4 in
• Configuration: Tee
• Fitting Type: Press x Press x F1807 PEX Tee
• Material: Brass (dezincification resistant, DZR forged)
• Method of Manufacture: DZR forged
• Pressure Rating: 200 psi CWP / 15 psi WSP
• Temperature Rating: 0 to 250 F
• Standards/Approvals: ANSI/NSF 14/61/372; ASME B16.51; NPC of Canada; UPC Listed
• Intended Tubing Compatibility: ASTM B88 types K, L, M hard drawn copper tubing and F1807 PEX tubing
• Weight: 0.35 lb
• Dimensions: 3 x 2 x 1.6 in
• UPC: 662545131740
• Country of Origin: China
