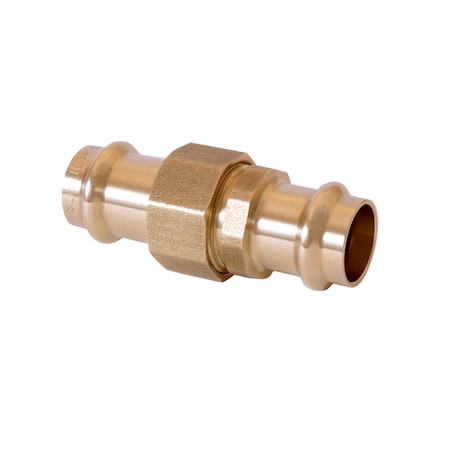

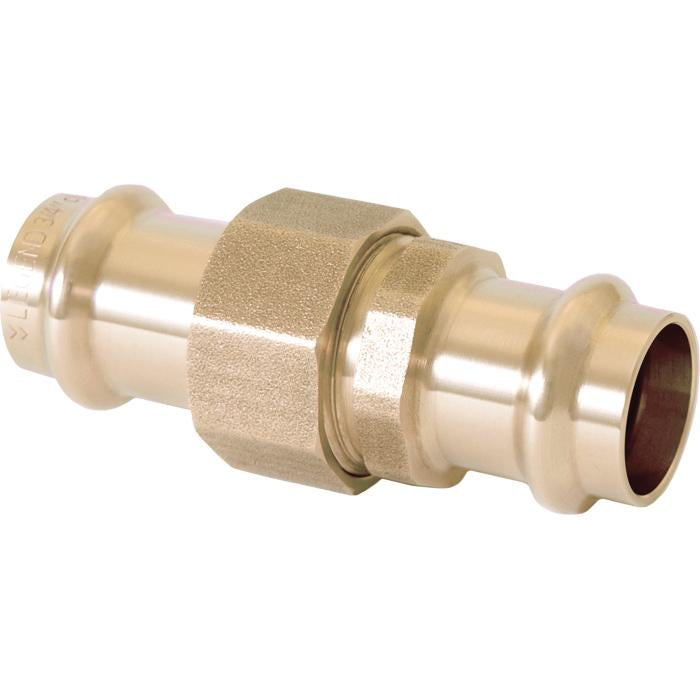

Legend Valve 450-817P Press Union 1-1/2 in

Product Description

Legend Valve 450-817P is a LegendPress 1-1/2 in press union made from dezincification-resistant (DZR) forged brass for press-fit piping systems. It provides press x press end connections with molded recess O-rings that create visible leak paths during pressure testing and is designed for ASTM B88 types K, L and M hard-drawn copper tubing. The union is rated to 200 psi and 0 to 250 deg F and meets potable water standards.

• Press x press union for 1-1/2 in nominal piping with LegendPress compatibility
• DZR forged brass, lead-free construction; forged manufacturing method
• Rated to 200 psi and 0 to 250 deg F; molded recess O-rings and VUS profile jaws for 1/2 to 2 in sizes

Product Highlights

1-1/2 in press union; DZR forged brass (lead free); press x press; 200 psi; 0 to 250 deg F; for ASTM B88 types K/L/M

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 450-817P
• Country of Origin: China

Technical Specifications

• Brand: Legend Valve
• Manufacturer: Legend Valve
• MPN: 450-817P
• Inventory SKU: LEG112UNI
• UPC: 662545126272
• Fitting Type: Union
• Connection Type: Press x Press
• Size: 1-1/2 in
• Material: DZR forged brass (lead free)
• Construction Method: Forged
• Series: LegendPress
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Standards: ANSI/NSF 61-G; 15 WSP; 200 CWP
• For Use With: ASTM B88 types K, L and M hard-drawn copper tubing
• O-ring: Molded recess O-rings (create visible leak paths when un-pressed)
• Profile Jaws: VUS profile jaws (sizes 1/2 to 2 in)
• Country of Origin: China
• Dimensions: 2.25 x 2.25 x 4.00 in (W x H x D)
