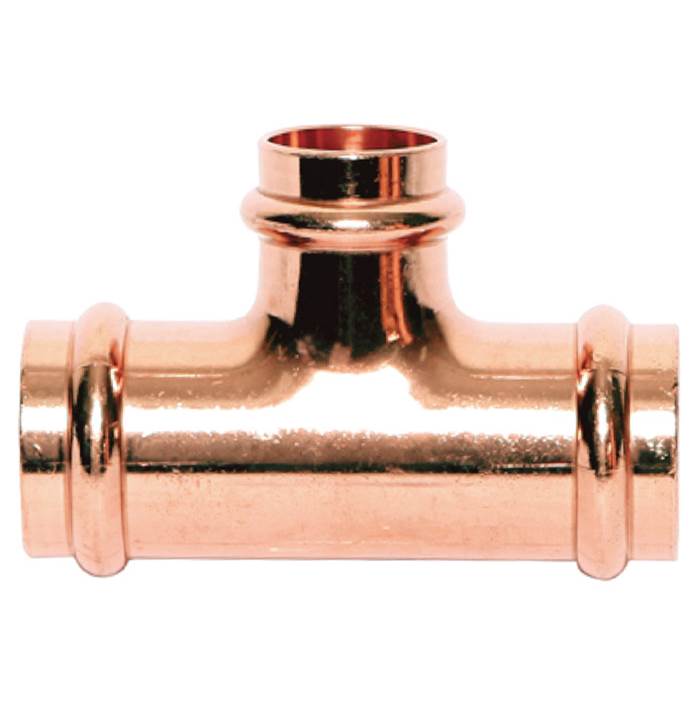

Legend Valve 450-238P LegendPress Reducing Tee (1-1/4 in Press x 1 in Press x 1 in Press)

Product Description

The Legend Valve 450-238P is a LegendPress reducing tee designed for press-fit plumbing connections. It provides press connections on all three ends to join and reduce hard-drawn copper tubing, sized 1-1/4 in x 1 in x 1 in, and features molded O-rings that create leak paths during pressure testing. The fitting is copper, lead-free, and conforms to applicable dimension and pressure standards for plumbing systems.

• Press x Press x Press reducing tee for 1-1/4 in x 1 in x 1 in copper tubing with molded O-rings for pressure-test detection
• Copper construction, lead-free; rated 200 CWP (200 psi) and 15 WSP; temperature range 0 to 250 deg F
• Meets ANSI/ASME B16.51 and other industry standards; suitable for ASTM B88 types K, L and M hard-drawn copper tubing

Product Highlights

Press-fit reducing tee (1-1/4 in x 1 in x 1 in) for hard-drawn copper tubing, press connections on all ends, rated to 200 CWP, ANSI/ASME B16.51 compliant.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 450-238P
• Country of Origin: Import

Technical Specifications

• Brand: Legend Valve
• MPN: 450-238P
• Model: LegendPress 450-238P
• Fitting Type: Reducing tee
• Connection Type: Press x Press x Press
• Connection Sizes: 1-1/4 in x 1 in x 1 in
• Material: Copper (lead-free)
• For Use With: ASTM B88 types K, L and M hard-drawn copper tubing
• Pressure Rating: 200 CWP (200 psi); 15 WSP
• Temperature Rating: 0 to 250 deg F
• Dimension Standards: ANSI/ASME B16.51
• Standards/Certifications: ANSI/NSF 61; ASME B16.51; CSA certified; IAPMO listed
• Finish: No Finish Group (uncoated)
• UPC: 662545121055
