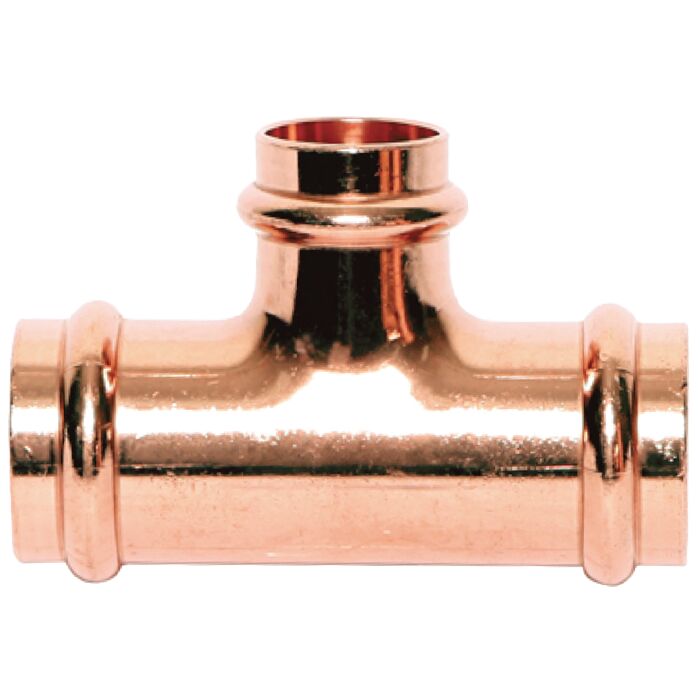

Legend Valve 450-206P Reducing Tee (1 in Press x 3/4 in Press x 3/4 in Press)

Product Description

Legend Valve 450-206P is a copper reducing tee with press connections designed for press-fit potable and HVAC piping systems. The fitting provides three press ends sized 1 in x 3/4 in x 3/4 in and is compatible with LegendPress systems. Press-type end connections eliminate soldering; molded recess O-rings provide leak-path detection during pressure testing. The fitting meets multiple plumbing standards and is specified for use with ASTM B88 types K, L, and M hard-drawn copper tubing.

• Press connection type: Press x Press x Press, nominal sizes 1 in x 3/4 in x 3/4 in
• Material: Copper construction; lead free; compatible with LegendPress systems
• Standards and ratings: ANSI/NSF 61, ASME B16.51, CSA, IAPMO; 15 WSP and 200 CWP

Product Highlights

Copper reducing tee with press ends and molded recess O-rings for pressure-test leak detection; compatible with ASTM B88 hard-drawn copper tubing.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 450-206P
• Country of Origin: Import

Technical Specifications

• Brand: Legend Valve
• MPN: 450-206P
• Model Name: Reducing Tee
• Type: Reducing tee
• Connection Type: Press x Press x Press
• Sizes (Nominal): 1 in x 3/4 in x 3/4 in
• Material: Copper
• Lead Free: Yes
• Compatible Systems: LegendPress
• Compatible Tubing: ASTM B88 types K, L, and M hard-drawn copper tubing
• Leak Detection Feature: Molded recess O-rings for pressure-test leak-path identification
• Standards/Approvals: ANSI/NSF 61; ASME B16.51; CSA Certified; IAPMO Listed
• Pressure Rating: 15 WSP; 200 CWP
• Country of Origin: China
• UPC: 662545120805
• Dimensions (Width x Height x Depth): 3.6 in x 1.4 in x 2.0 in
