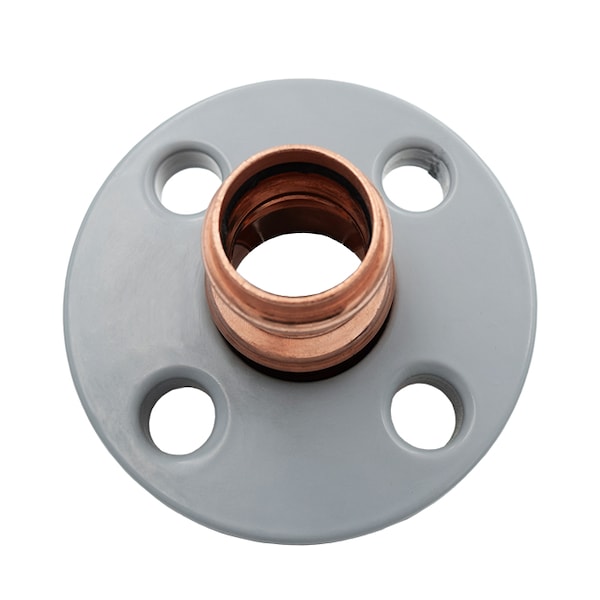

Legend Valve 450-180P 3 inches Press x Flange Adapter

Product Description

The LEGEND VALVE 450-180P is a 3-inch nominal Press x Flanged Adapter fitting. Constructed from wrot copper, it is designed for press-to-connect installations, eliminating the need for soldering. This adapter is suitable for use with ASTM B88 types K, L, and M hard drawn copper tubing, operating within a pressure range of 200 psi CWP/15 psi WSP and temperatures from 0 to 250 degrees F.

• Features press-type end connections, eliminating soldering, reducing labor, and removing fire hazards.
• Designed for installation on ASTM B88 types K, L, and M hard drawn copper tubing.
• Complies with ANSI/ASME B16.51, ANSI/NSF 61/372, NPC of Canada, and is UPC Listed.

Product Highlights

Wrot copper adapter with press x flanged end style, rated for 200 psi CWP and 0 to 250 deg F.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 450-180P
• Country of Origin: China

Technical Specifications

• MPN: 450-180P
• Manufacturer: Legend Valve
• Nominal Size: 3 in
• End Style: Press x Flanged
• Fitting Type: Adapter
• Material: Wrot Copper
• Pressure Rating: 200 psi CWP/15 psi WSP
• Temperature Rating: 0 to 250 deg F
• Domestic/Import: Import
• Certifications: ANSI/ASME B16.51, ANSI/NSF 61/372, NPC of Canada, UPC Listed
