Legend Valve 450-134P LegendPress® 90 deg Elbow, 1-1/4 in Press x 1-1/4 in FNPT

Product Description

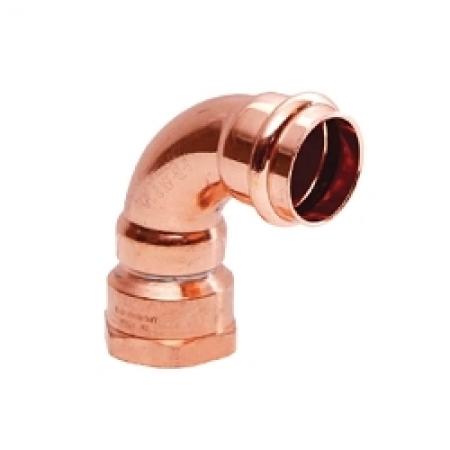

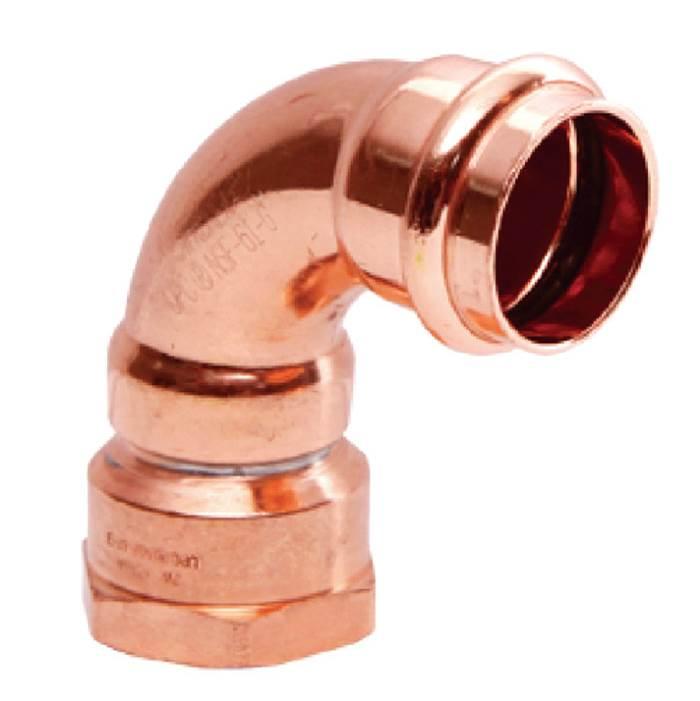

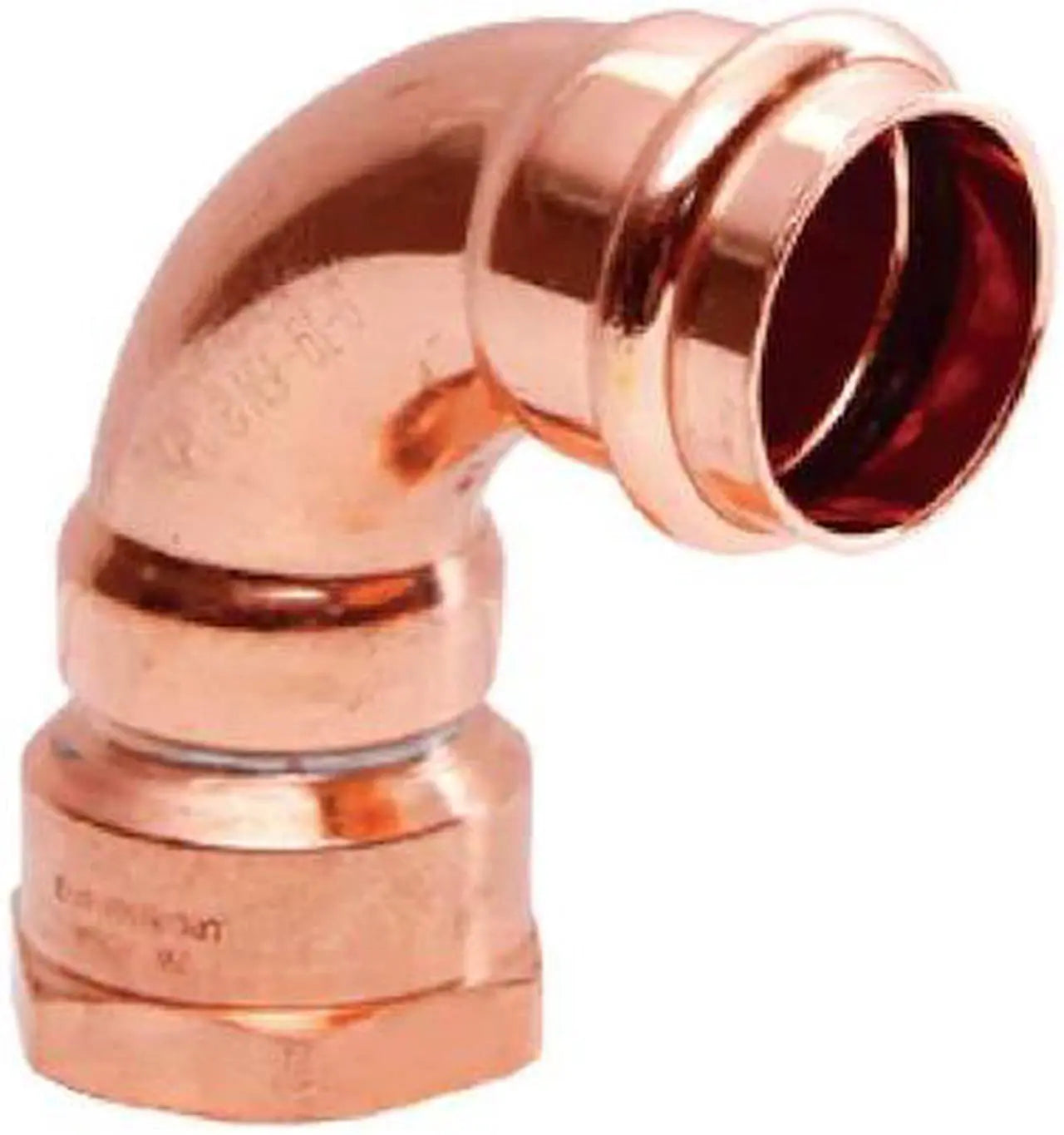

The Legend Valve LegendPress® 450-134P 90 deg Elbow features 1-1/4 in Press x 1-1/4 in FNPT connections. This fitting is designed for installation onto ASTM B88 types K, L and M hard drawn copper tubing. It is suitable for applications requiring a 90-degree change in direction within piping systems. The press-type end connections eliminate the need for soldering.

• Lead free
• ANSI/NSF 61, ASME B16.51, CSA Certified, IAPMO Listed
• Press-type end connections eliminate the need for soldering

Product Highlights

The Legend Valve 450-134P elbow reduces labor and material costs and eliminates the fire hazard associated with soldering.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 450-134P
• Country of Origin: China

Technical Specifications

• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 1-1/4 in
• End Style: Press x FNPT
• Pressure Rating: 200 psi CWP
• Temperature Rating: 0 to 250 deg F
• Material: Brass
• Brand: LEGEND VALVE
• MFR #: 450-134P
• Connection Type: Press x FNPT
• Connection Size 1: 1-1/4 in
• Connection Size 2: 1-1/4 in
• Connection Type 1: Press
• Connection Type 2: FNPT
• Dimension Standards: ANSI/ASME B1.20.1
• For Use With: ASTM B88 Type K, L and M Hard-Drawn Copper Tubing
• Material Construction: Lead-Free Brass
• Product Type: Elbow Fitting
