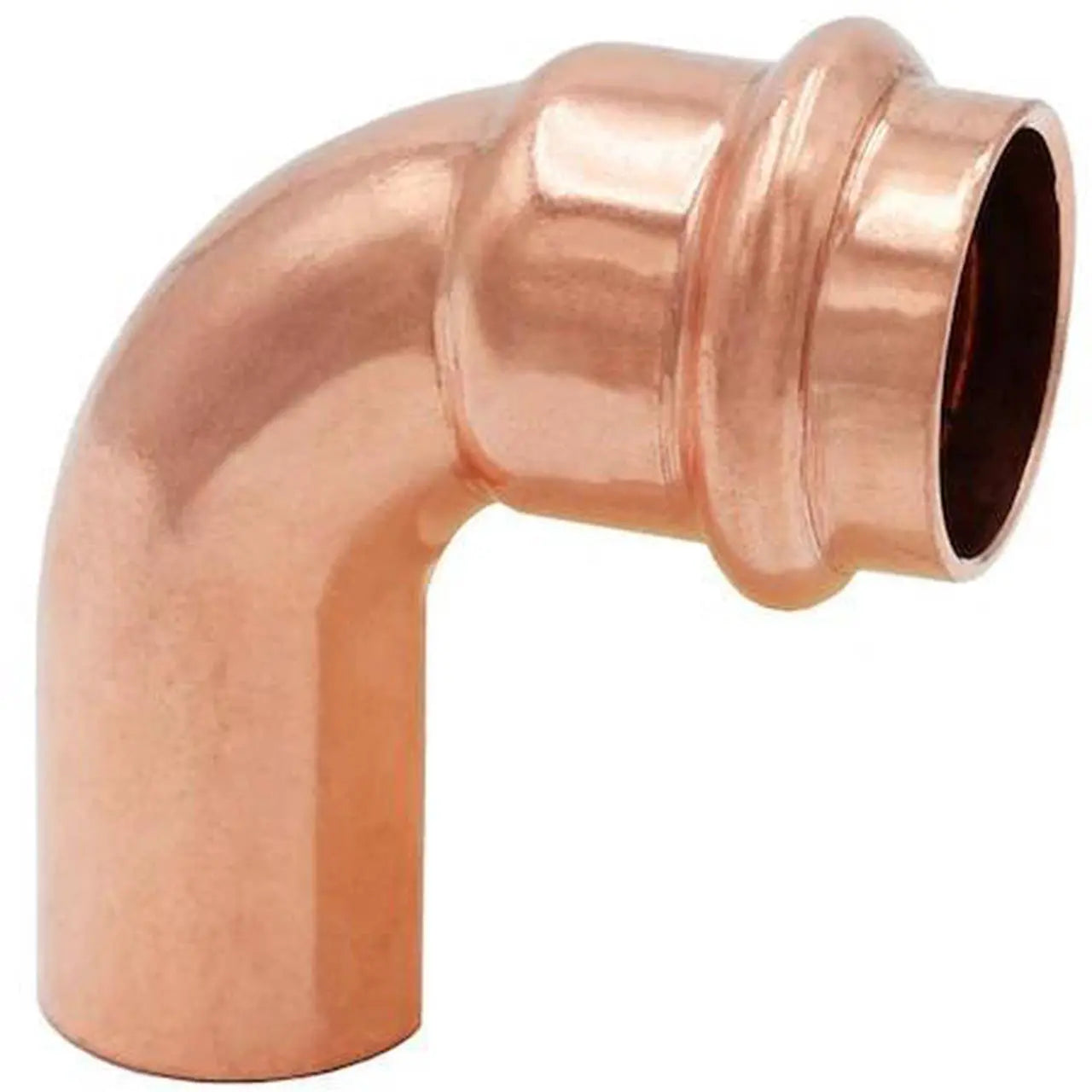

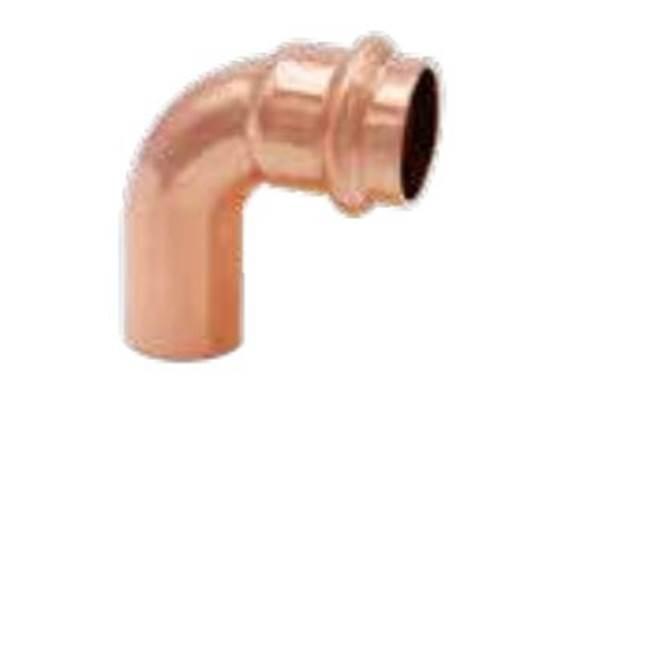

Legend Valve 450-095P LegendPress 90 deg Short Radius Street Elbow, 1 in Press x 1 in Fitting

Product Description

The Legend Valve LegendPress 450-095P is a 90-degree short radius street elbow with 1-inch press x 1-inch fitting. This fitting is designed for installation onto ASTM B88 types K, L, and M hard-drawn copper tubing. It features molded recess O-rings which, when un-pressed, create leak paths at multiple points during the pressure test.

• Press-type end connections eliminate the need for soldering.
• Reduces labor and material costs.
• Eliminates the fire hazard associated with soldering.

Product Highlights

This Legend Valve street elbow is made from wrot copper and ideal for plumbing applications requiring a 90-degree turn.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 450-095P
• Country of Origin: Import

Technical Specifications

• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 1 in
• Material: Wrot Copper
• Pressure Rating: 200 psi CWP/15 psi WSP
• Temperature Rating: 0 to 250 deg F
• Type: Short Radius
• End Style: C x FTG
• Connection Size 1: 1 in
• Connection Size 2: 1 in
• Connection Type 1: Press
• Connection Type 2: Fitting
• Dimension Standards: ANSI/ASME B16.51
• For Use With: ASTM B88 Type K, L and M Hard-Drawn Copper Tubing
• Material Construction: Wrot Copper
• Size: 1"
• Brand: LEGEND VALVE
• Product Type: Elbow Fitting
• Finish: No Finish Group
