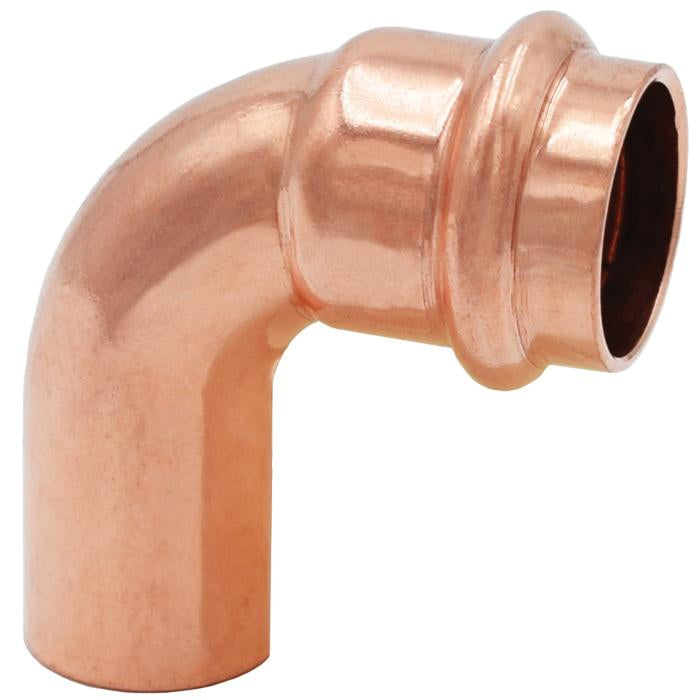

Legend Valve 450-094P LegendPress 90 deg short radius street elbow 3/4 in press x 3/4 in fitting

Product Description

Legend Valve 450-094P is a LegendPress 90 degree short radius street elbow with a 3/4 inch press connection and a 3/4 inch fitting (female thread) connection for copper plumbing. The copper press fitting is designed for ASTM B88 types K, L and M hard-drawn tubing and features molded recess O-rings to indicate un-pressed joints during pressure testing. The fitting meets ANSI/ASME B16.51 and NSF standards and is rated to 200 psi and 0 to 250°F.

• 3/4 in press x 3/4 in fitting connections (press x female thread) for press-to-connect installation on copper tubing
• Copper 90° short radius street elbow compatible with ASTM B88 types K, L and M hard-drawn copper tubing
• Rated 200 psi CWP / 15 psi WSP and 0 to 250°F; meets ANSI/ASME B16.51, ANSI/NSF 61/372, CSA, IAPMO and UPC standards

Product Highlights

90° short radius copper press x fitting elbow, 3/4 in, 200 psi, 0–250°F, ANSI/ASME B16.51 and NSF listed

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 450-094P
• Country of Origin: China

Technical Specifications

• Brand: Legend Valve
• MPN: 450-094P
• Product Name: Short Radius Street Elbow
• Series: LegendPress
• Connection Size 1: 3/4 in
• Connection Size 2: 3/4 in
• Connection Type 1: Press
• Connection Type 2: Fitting (Female Thread)
• End Style: Press x Female Thread (C x FTG)
• Angle: 90 deg
• Material: Copper
• For Use With: ASTM B88 types K, L and M hard-drawn copper tubing
• Pressure Rating: 200 psi CWP / 15 psi WSP
• Temperature Rating: 0 to 250 deg F
• Dimension Standards: ANSI/ASME B16.51
• Certifications: ANSI/NSF 61/372; ASME B16.51; ASTM B152 C11000; ASTM B75 C12200; CSA certified; IAPMO listed; UPC listed
• Country of Origin: China
• UPC: 662545131047
• Nominal Size: 3/4 in
• Dimensions (W x H x D): 0.7 in x 1.0 in x 1.0 in
