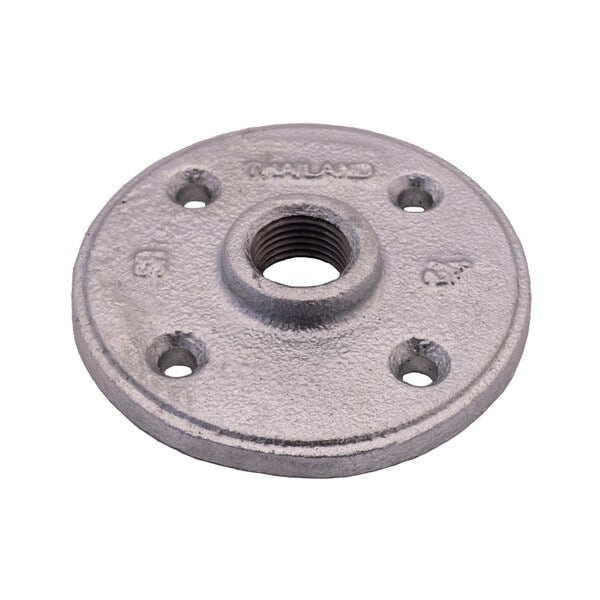

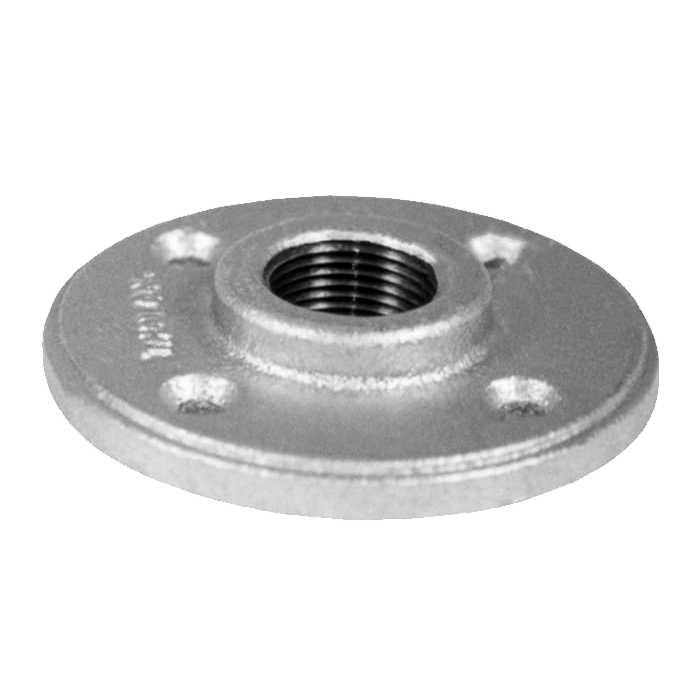

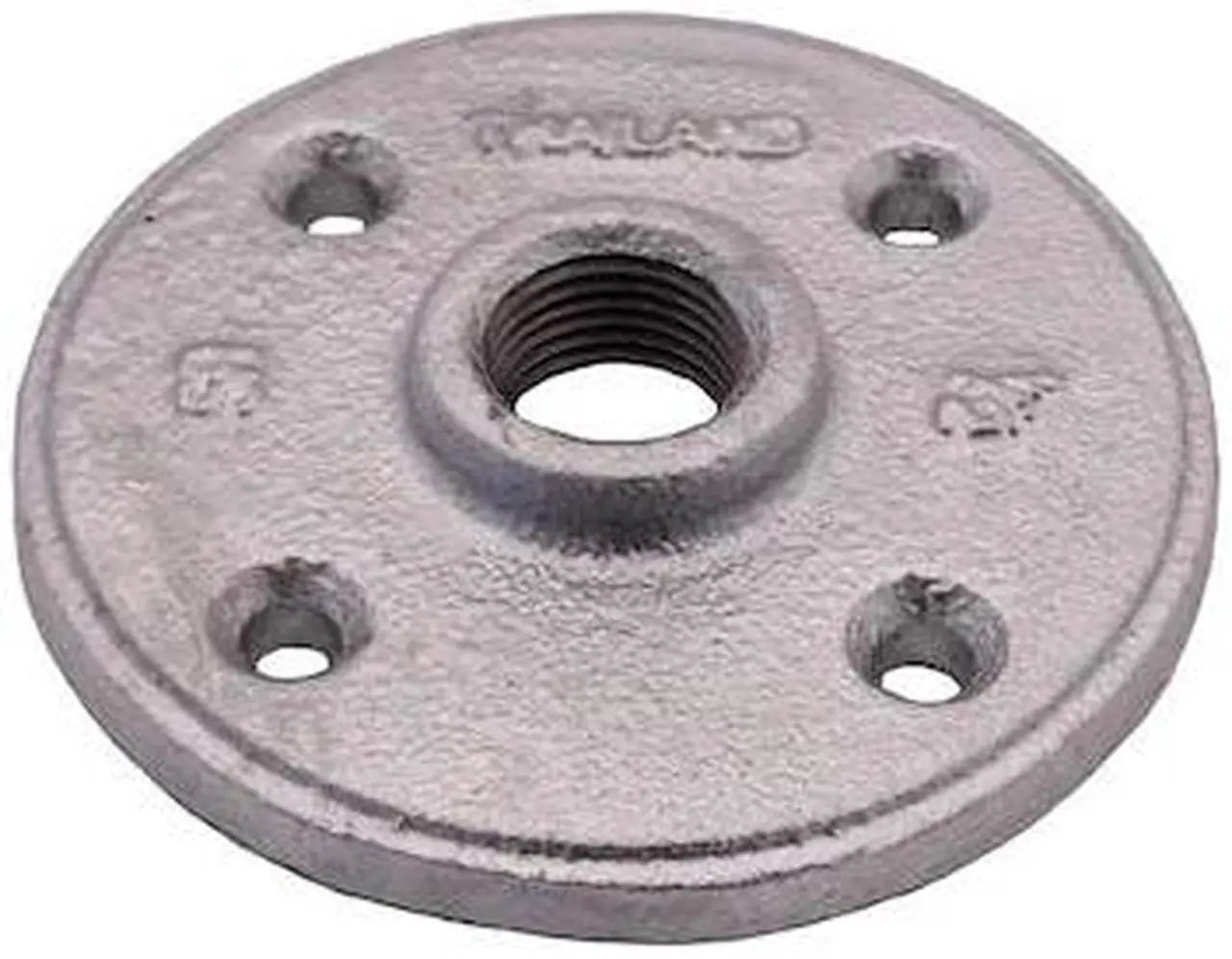

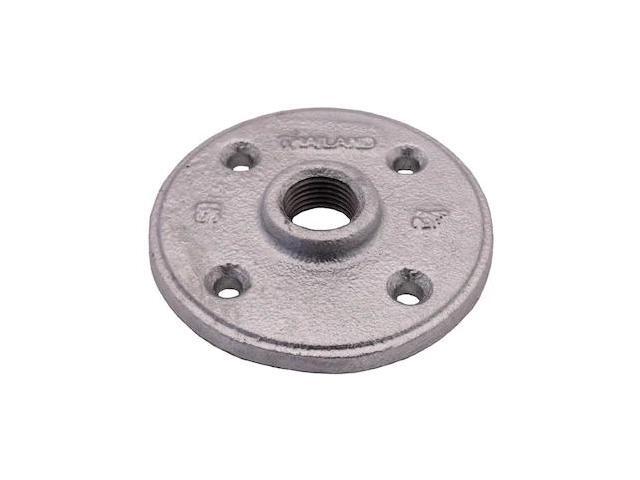

Legend Valve 352-466 1-1/4 inches Galv. Floor Flange (1-1/4 inches)

Product Description

Legend Valve model 352-466 is a 1-1/4 inch galvanized floor flange designed to secure and connect 1-1/4" piping to floors or mounting surfaces. The fitting is configured as a flange x FNPT connection and is rated Class 150. It meets ANSI/NSF 61 and is intended for use in galvanized pipe installations where a floor-mounted flange with female NPT threads is required.

• Size: 1-1/4" with galvanized construction for pipe-to-floor mounting
• Connection: Flange x FNPT (female NPT) configuration
• Ratings: Class 150 pressure rating; complies with ANSI/NSF 61

Product Highlights

1-1/4" galvanized floor flange, flange x FNPT configuration, Class 150 and ANSI/NSF 61 compliant

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 352-466
• Country of Origin: Thailand

Technical Specifications

• Brand: Legend Valve
• Manufacturer Part Number: 352-466
• Size: 1-1/4"
• Type: Floor flange
• Material/Finish: Galvanized
• Connection Type: Flange x FNPT (Female NPT)
• Thread: FNPT
• Pressure Rating: Class 150
• Standards: ANSI/NSF 61
• Configuration: SA galvanized floor flange
• Weight: 1.05 lb
• Dimensions: 4 x 4 x 0.7 in
• Package Quantity: 1
• Unit of Measure: EA
• Country of Origin: Thailand
• UPC: 662545027685
• Document: https://legendvalve.com/documents/pdf/SA Galvanized Floor Flange.pdf
