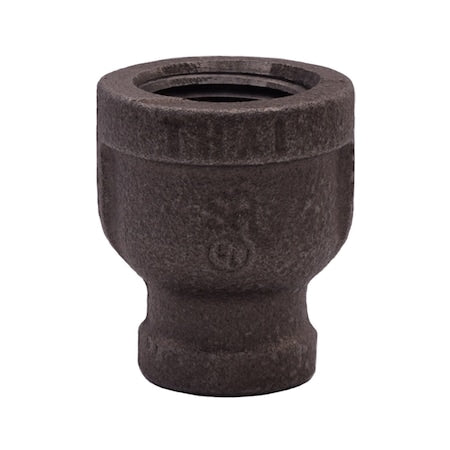

Legend Valve 350-529 Reducing Coupling 3/4 x 1/2

Product Description

The LEGEND VALVE 350-529 is a reducing coupling designed for plumbing applications. This malleable iron fitting features a 3/4 inch FNPT connection on one end and a 1/2 inch FNPT connection on the other, allowing for the reduction of pipe sizes. It is rated for a pressure class of 150 lb and a working pressure of 150 psi, suitable for low pressure systems. The coupling is constructed from malleable iron, ensuring durability and reliable performance in various installations.

• Malleable iron construction for durability.
• FNPT x FNPT connections for secure pipe reduction.
• Rated for 150 psi working pressure.

Product Highlights

Malleable iron reducing coupling for low pressure plumbing.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 350-529
• Country of Origin: Thailand

Technical Specifications

• Manufacturer: LEGEND VALVE
• Size: 3/4 x 1/2
• Connection Type: FNPT x FNPT
• Color: Black
• Connection Size 1: 3/4 in
• Connection Size 2: 1/2 in
• Connection Type 1: FNPT
• Connection Type 2: FNPT
• Fitting Type: Coupling
• Material: Malleable Iron
• Pressure Class: 150 lb
• Working Pressure: 150 psi
• MPN: 350-529
• UPC: 662545025803
• UNSPSC: 40172606
• Item Type: Pipe Reducing Coupling
• Nominal Size: 3-4 x 1-2 Inch
• End Style: FNPT
• Method of Manufacture: Cupola Casting
• Material Specification: ASTM A197
• Finish: Galvanized
• Industry Standards: ANSI B16.3, ANSI B1.20.1
• Temperature Rating: 200 deg F
• Certifications: NSF 372 Standard, UL Listed, UPC-IAPMO
• Application: Low Pressure Plumbing
• Unit Count: 1
• ASIN: B01GES5QVY
• Thread Type: NPT
