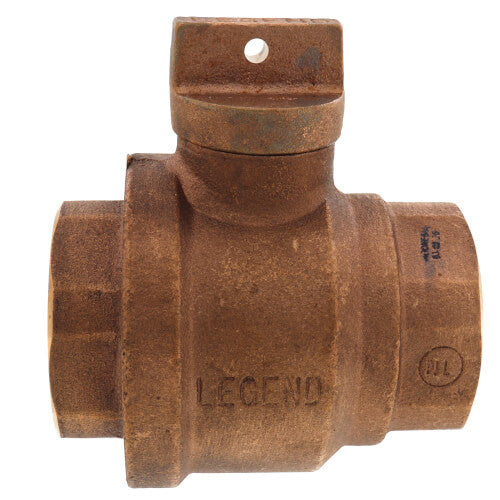

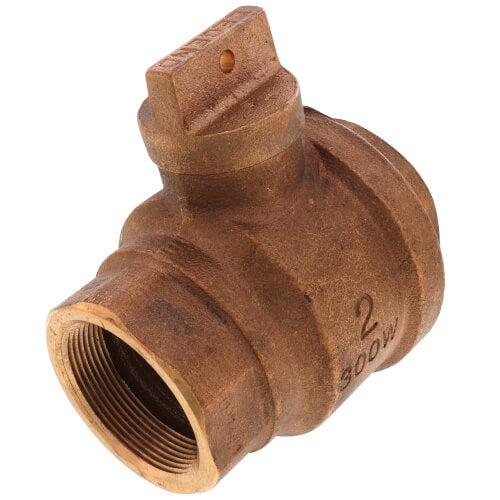

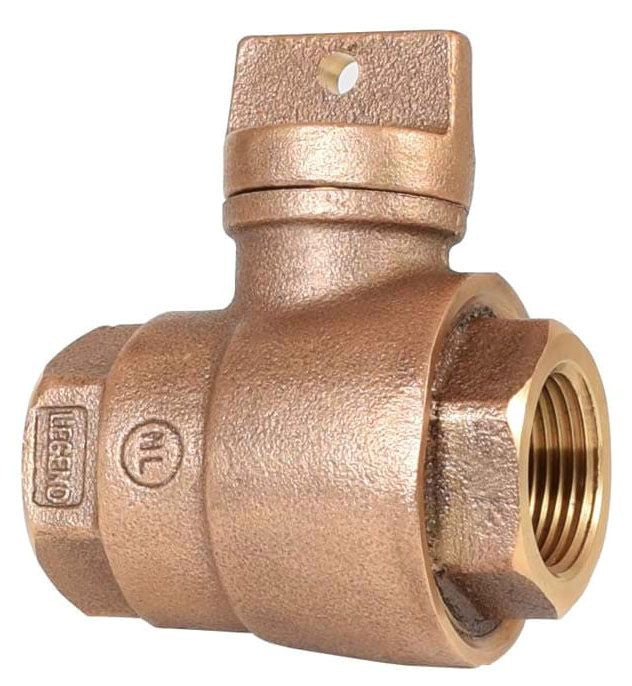

Legend Valve 314-258NL Curb Stop Valve 2 Inch Full Port Lead-Free

Product Description

The Legend Valve 314-258NL is a high-performance curb stop valve designed for potable water, plumbing, and underground water service applications. Engineally crafted from ASTM B584 UNS C89833 cast bronze, this valve offers a full port design for maximum flow and a bubble-tight shut-off for reliable performance.

• Lead-free construction, suitable for all no-lead installations
• Buna-N nitrilic rubber components ensure durability and compliance with NSF/ANSI 372 standards
• 80 PSI pressure rating, appropriate for commercial and residential installations

Product Highlights

This curb stop valve features a no-lead design that complies with lead-free plumbing laws. Its robust construction and enclosed head design facilitate low-torque operation and long service life, making it an excellent choice for both new installations and repairs.

Product Information

Standard Information

• Nominal Size: 2 Inch x 2 Inch
• Connection Type: Female Threaded x Female Threaded

Technical Specifications

• Material: Cast Bronze ASTM B584 UNS C89833
• Pressure Rating: 80 PSI at 80 Deg F
• Features: Full Port, Bubble Tight Shut-Off, Lead-Free
• Standards: NSF/ANSI 372, ANSI/ASME B1.20.1, AWWA C800
• Applicable Applications: Potable Water, Plumbing, Commercial, Underground Water Service
