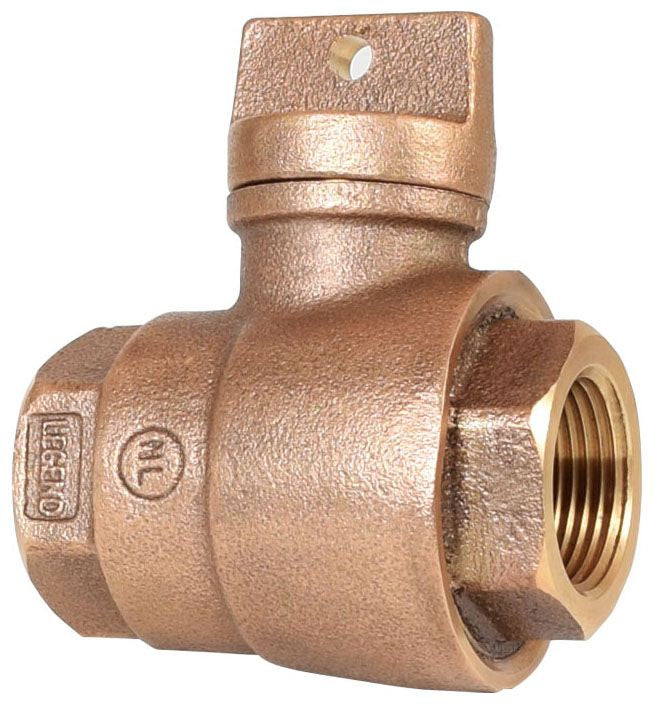

Legend Valve 314-255NL Curb Stop Valve Full Port Female Threaded 1 inch ASTM B584 UNS C89833 Certifications NSF ANSI 372 AWWA C800

Product Description

The Legend Valve 314-255NL curb stop valve is engineered for reliability and safety, making it a preferred choice for potable water and underground service installations. This valve facilitates easy shutoff from the water main to the building. Manufactured from lead-free cast bronze, it meets all current lead-free plumbing laws.

• Conforms to NSF/ANSI 372 and AWWA C800 standards.
• Rated for 100 PSI at 100 degrees Fahrenheit.
• Full port, bubble-tight design ensures a secure, leak-free seal.

Product Highlights

Designed for ease of operation and maintenance, the Legend Valve 314-255NL boasts a full port ball-and-seat design which is superior to traditional plug-type models. It features a durable, Teflon-coated ball for low torque operation and a long service life. The enclosed operating head stops and the rod cotter pin attachment ensure operational safety and dependability.

Product Information

Standard Information

• Connection Type: Female Threaded x Female Threaded.
• Material: ASTM B584 UNS C89833 Cast Bronze.

Technical Specifications

• Buna-N Nitrilic Rubber Seat: Enhances sealing and durability.
• Dimensions: 1 inch x 1 inch, end to end distance 3.33 inches.
• Pressure Rating: 100 PSI at 100 degrees Fahrenheit.
• Lead-Free Compliance: Meets all lead-free plumbing laws.
