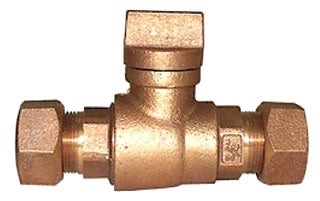

Legend Valve 314-157nl Curb Stop 1-1/2 in Compression

Product Description

The LEGEND VALVE 314-157nl is a lead-free bronze curb stop designed for water service line shutoff applications. It features a compression-by-compression end configuration, making it compatible with standard copper tubing connections without the need for soldering. Sized at 1-1/2 inches, this curb stop is built for use in municipal water service installations where lead-free compliance is required. Plumbing contractors and water utility professionals install this fitting at or near the curb box to provide a dedicated shutoff point between the main and the structure. The lead-free bronze construction meets modern potable water material standards.

This curb stop is suited for residential and light commercial water service applications. It is installed in-line on a water service lateral, typically below grade in a curb box or buffalo box, and is operated with a curb key tool. The compression-by-compression configuration allows connection to copper service tubing on both the inlet and outlet sides without open flame, making it appropriate for installations near combustible materials or in tight access conditions.

Key Features

• Lead-free bronze construction meets Safe Drinking Water Act requirements for potable water systems
• Compression x compression end connections eliminate the need for soldering or open-flame tools
• 1-1/2 inch fitting size suits residential and light commercial water service laterals
• Designed for below-grade curb box installation and curb key operation
• T5400NL series configuration for reliable shutoff at the service entry point

Compatibility

Designed as an OEM-style replacement or new-installation curb stop for 1-1/2 inch compression water service line applications requiring lead-free bronze fittings.

Installation Notes

Installation is performed by licensed plumbers in accordance with local plumbing codes and IPC requirements. Shut off the water main upstream before beginning any work on the service lateral. Compression fittings should be hand-tightened and then advanced with a wrench to the appropriate seat without over-torquing the compression nut. Confirm all connections are leak-free under service pressure before backfilling or closing the curb box.

Technical Specifications

• Fitting Size: 1-1/2 inches
• End Connection: Compression x Compression
• Material: Lead Free Bronze
• Series: T5400NL

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 314-157nl
