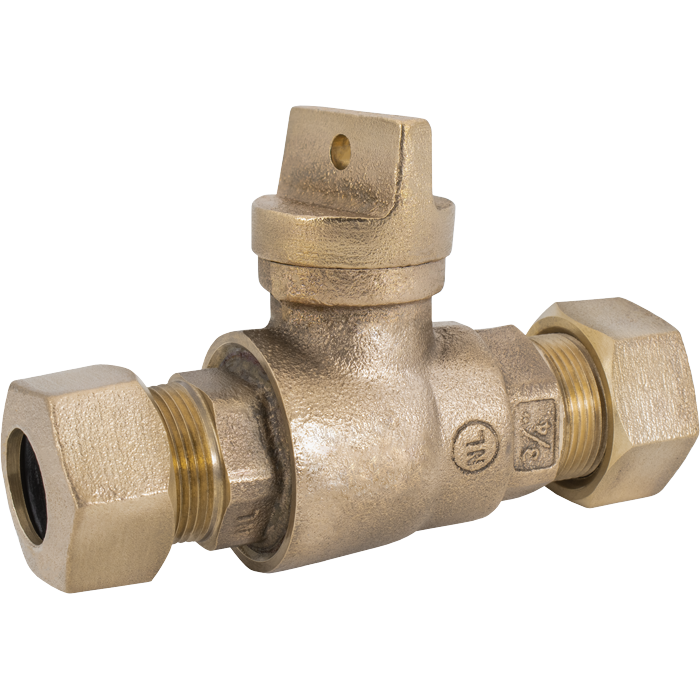

Legend Valve 314-154NL T-5400NL Comp Curb Stop 3/4 inches

Product Description

The LEGEND VALVE 314-154NL is a no lead bronze ring compression x ring compression curb stop with 1/4 turn operation and enclosed operating head stops. The operating head has been drilled to accept stationary rod cotter pin attachment. Durable, PTFE-coated ball assures positive, bubble-tight shutoff, low torque operation, and long service life.

• No lead bronze construction
• Ring compression x ring compression connection
• 1/4 turn operation

Product Highlights

This curb stop is designed for underground water service installations and conforms to AWWA C 800 standards.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 314-154NL
• Country of Origin: Indonesia

Technical Specifications

• Manufacturer: LEGEND VALVE
• Size: 3/4"
• Standards: 1-1/4" to 2" 80 p.s.i. 80°F, 1/2" to 1" 100 p.s.i. 100°F, Conforms to AWWA C 800
• Connection Type: Ring Compression x Ring Compression
• Country of Origin: Indonesia
• Configuration: Ring Compression (CTS) x Ring Compression (CTS)
• Ratings: Valve body is rated for 300 psi water pressure. End connections are manufactured in compliance to the latest version of AWWA C800, for high pressure.
• MFR #: 314-154NL
• Zoro #: G1845900
• UPC #: 662545107301
