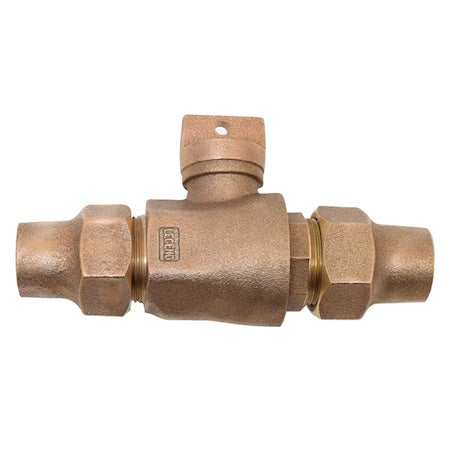

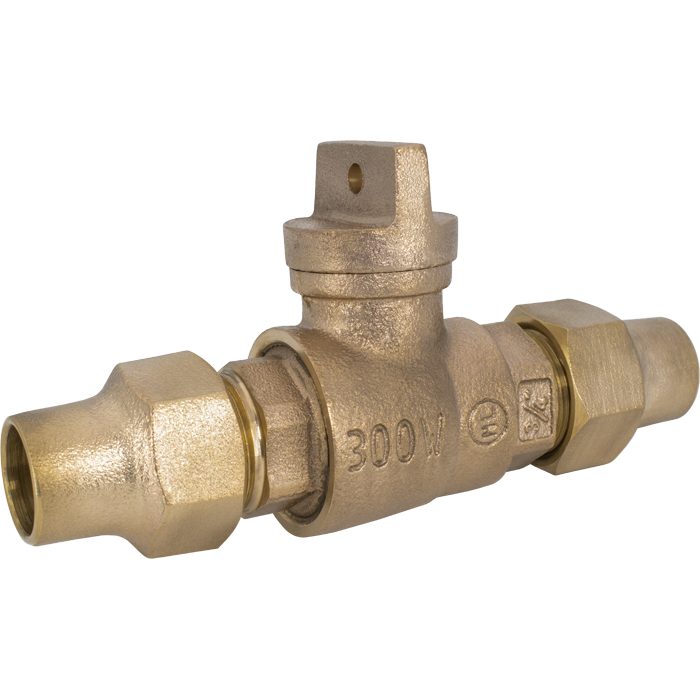

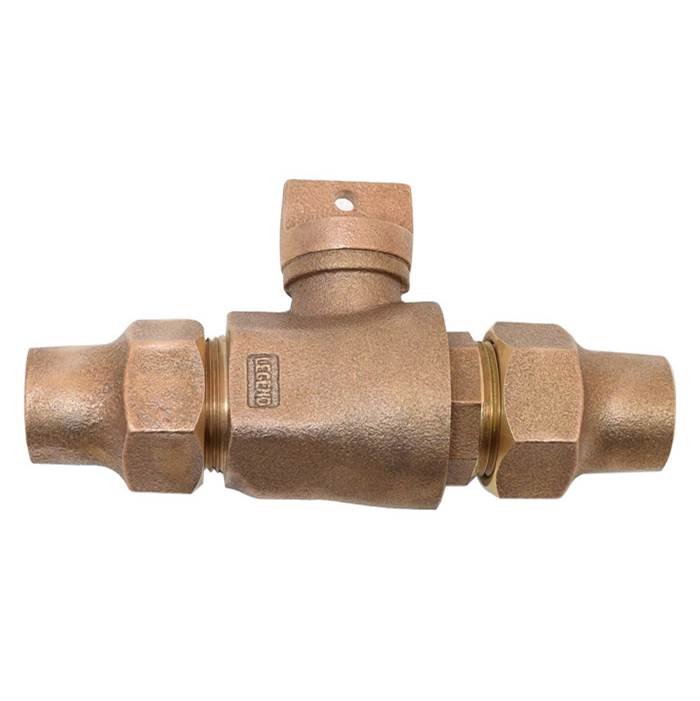

Legend Valve 314-106NL 1-1/4 t5200nl fl x fl curb sto

Product Description

The LEGEND VALVE 314-106NL is a 1-1/4 T5200NL FL x FL CURB STO. It is designed for underground water service installations to permit shut off of the water supply from the water main to the building. The lead-free design is suitable for all no-lead potable water installations for residential, commercial and industrial applications.

• Lead-free design is suitable for all no-lead potable water installations, in full compliance of the lead-free plumbing law.
• 90-degree operation with enclosed operating head stops.
• Operating head has been drilled to accept stationary rod cotter pin attachment.

Product Highlights

This curb stop valve features a full-port, ball-and-seat design and a durable, Teflon-coated ball for a bubble-tight shutoff and long service life. It has copper flare nut end connections for strong pullout resistance.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 314-106NL
• Country of Origin: Indonesia

Technical Specifications

• Manufacturer: Legend
• Size: 1-1/4"
• Standards: 1-1/4" to 2" 80 p.s.i. 80°F, 1/2" to 1" 100 p.s.i. 100°F, Conforms to AWWA C 800
• Connection Type: Flare x Flare
• Country of Origin (subject to change): Indonesia
• MPN: 314-106NL
• UPC / GTIN: 662545107257
• Series: T-5200NL
• Item Type: Curb Stop Valve
• Height (Inches): 2"
• Width (Inches): 4"
• Depth (Inches): 7.90"
• Weight: 5.45
• Material: Cast Bronze
• MFR #: 314-106NL
• Zoro #: G1777669
• UPC #: 662545107257
• Ratings: Valve body is rated for 300 psi water pressure. End connections are manufactured in compliance to the latest version of AWWA C800, for high pressure.
• Configuration: Flare x Flare
• Weight Each: 5.45 LB
• Each Dimension (inches): 4 x 7.9 x 2
• Carton Dimension (inches): 8.3 x 8.6 x 3.6
• Case Dimension (inches): 9.5 x 8.9 x 11.6
• Carton Quantity: 2 Each
• Case Quantity: 6 Each
• Product Type: Plumbing Fitting
• Finish: No Finish Group
• ITEM NUMBER: 314-106NL
• UPC: 662545107257
