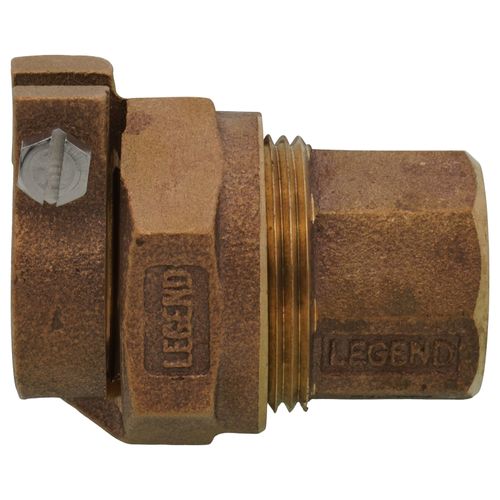

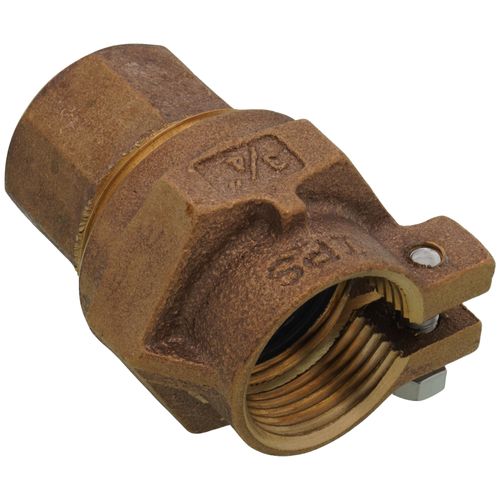

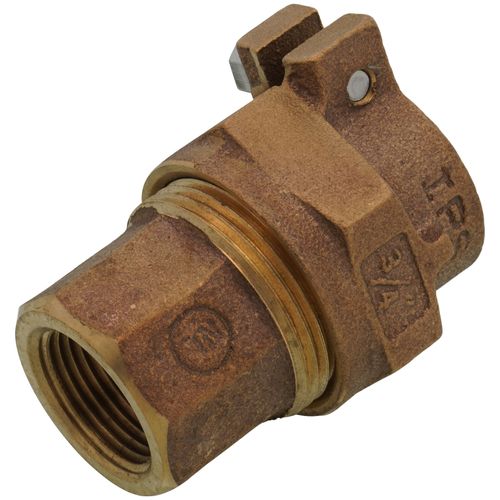

Legend Valve 313-284NL Pipe Coupling 3/4 Inch IPS x FNPT

Product Description

The Legend Valve 313-284NL is a pipe coupling with a 3/4 inch nominal size and IPS x FNPT end style. Constructed from bronze, this coupling is suitable for water service applications. It conforms to AWWA C800 standards and has a pressure rating of 100 PSI CWP. Insert stiffeners are required at each pack-joint connection when installing Polyethylene (PE) plastic tubing.

• Pack Joint (IPS) x FNPT Connection
• Lead-Free
• Suitable for water service applications

Product Highlights

The Legend Valve 313-284NL pipe coupling features bronze construction and IPS x FNPT end connections. It is ideal for use in water service applications.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 313-284NL
• Country of Origin: Indonesia

Technical Specifications

• Manufacturer: LEGEND VALVE
• Size: 3/4"
• Connection Type: Pack Joint PE Pipe (IPS) x FNPT
• Material: 304 Stainless Steel (Split Clamp Screw), Nylon (Anti-Friction Ring), Buna-N (Gasket), Bronze (Pack Joint Nut, Body)
• Lead Free: Yes
• Nominal Size: 3/4 Inch
• End Style: IPS x FNPT
• Fitting Size: 3/4 in
• Pressure Rating: 100 PSI CWP
• Series: T-4326NL Series
• Temperature Rating: 100 deg F
• Applicable Standard: AWWA C800
• Application: Water Service
• Diameter: 3/4 Inch
• End Connection: IPS Pack Joint x Female Threaded Coupling
• Material Specification: AISI Grade 304 (Split Clamp Screw), ASTM B62 (Pack Joint Nut)
• Size A: 3/4 Inch
• Size B: 3/4 Inch
• Brand: Legend
• MPN: 313-284NL
• UPC: 662545106687
