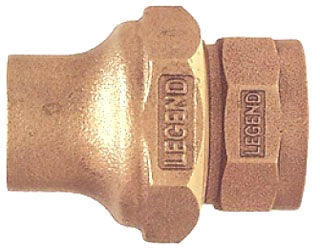

Legend Valve 313-024nl 3/4 in Flare X Female Coupling

Product Description

The LEGEND VALVE 313-024nl is a 3/4 inch lead free bronze flare x female coupling designed for connecting flare-end tubing to female threaded pipe in plumbing and HVAC refrigerant or gas piping systems. Constructed from lead free bronze, this fitting meets current regulatory requirements for potable water applications. The flare x female iron pipe (FIP) configuration allows a secure mechanical connection between flared copper tubing and standard female-threaded pipe fittings or valves. Licensed plumbers and HVAC technicians install this type of coupling during system assembly, repair, or retrofit work where a transition between a flare connection and a threaded fitting is required.

This coupling is suited for residential and light commercial plumbing, gas distribution, and refrigeration piping applications where a 3/4 inch flare-to-FIP transition is needed. The lead free bronze construction makes it appropriate for potable water service lines as well as gas and refrigerant piping where bronze fittings are specified. It is commonly used when connecting copper tubing to valves, manifolds, or threaded pipe sections.

Key Features

• Lead free bronze construction meets lead free requirements for potable water applications
• 3/4 inch flare x female iron pipe (FIP) end configuration
• Flare connection provides a leak-resistant mechanical joint without solder
• Suitable for water, gas, and refrigerant piping service
• Compact coupling design for space-limited installations

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with standard 3/4 inch flare and female threaded pipe connections in residential and commercial plumbing and HVAC systems.

Installation Notes

Installation should be performed by a licensed plumber or HVAC technician in accordance with applicable local plumbing codes and IFGC requirements. Shut off the water or gas supply and relieve system pressure completely before making or breaking any connections. Ensure the copper tubing end is properly flared with a calibrated flaring tool before tightening the flare nut to avoid leaks. Do not over-tighten the threaded female connection; use appropriate thread sealant or PTFE tape rated for the service fluid.

Technical Specifications

• Fitting Size: 3/4 inches
• End Connections: Flare x Female Iron Pipe (FIP)
• Material: Lead Free Bronze

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 313-024nl
