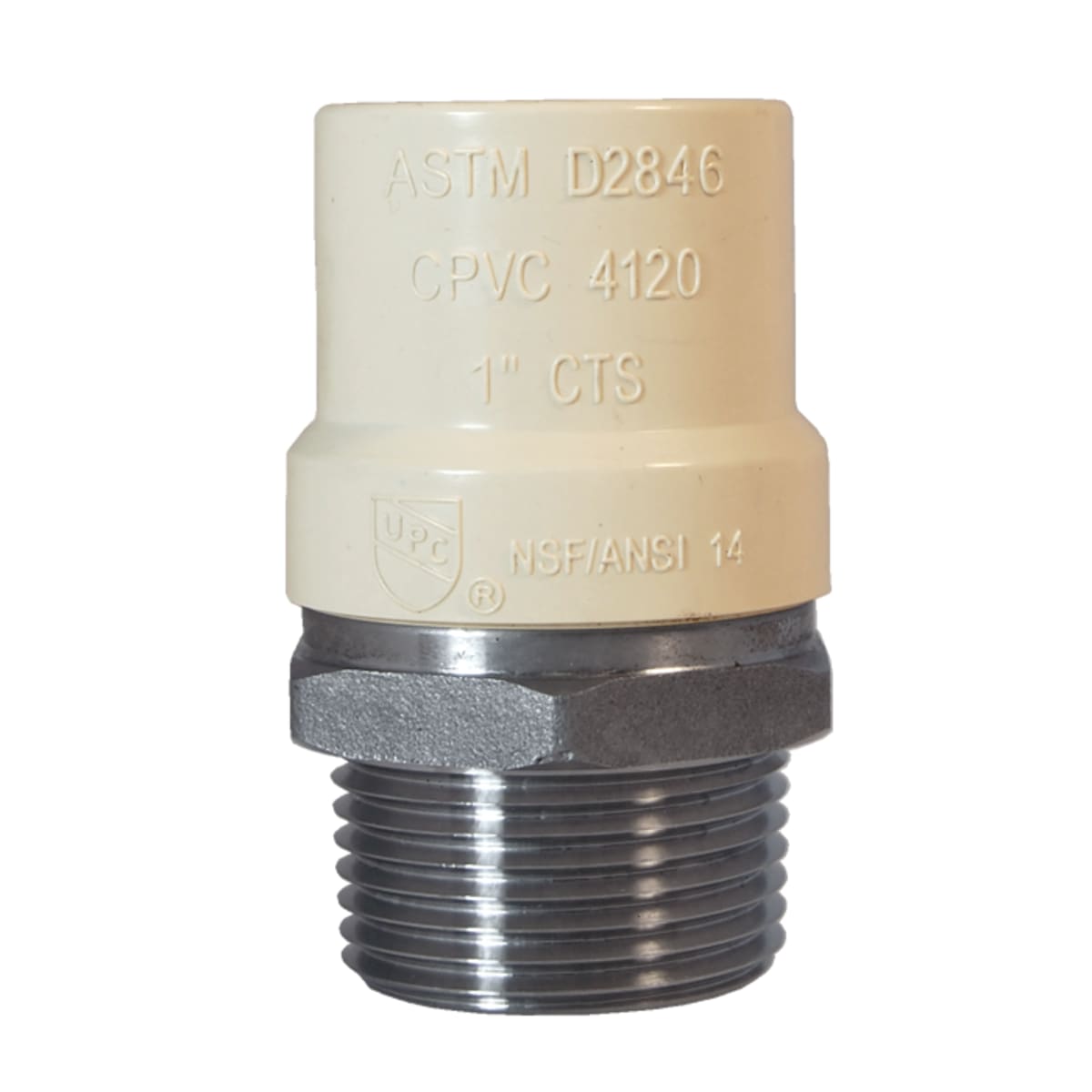

Legend Valve 302-435 1 inches MNPT X CPVC S/S X CPVC Transition Fitting

Product Description

The Legend Valve 302-435 is a transition adapter fitting with a 1-inch male threaded x CPVC socket end connection. Constructed from 304 stainless steel and CPVC, it is designed for residential, commercial, and industrial hot and cold water systems. It has a pressure rating of 100 PSI CWP and a temperature rating of 180 Deg F.

• Eliminates the Need for Multiple Adapter and Subsequently, their Additional Leak-Path and Run Length
• Ideal for Confined Application
• Lead-Free

Product Highlights

This transition fitting is ideal for transitioning between threaded piping and CPVC tubing in various applications.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 302-435
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Applicable Standard: CUPC, NSF/ANSI 14, ANSI/ASME B1.20.1, IAPMO, ISO 9002
• Application: Residential, Commercial, Industrial, Hot and Cold Water System
• CATALOG NUMBER: 302-435
• Category: Plumbing & Bath / Kitchen Fixtures
• End Connection: Male Threaded x CPVC Socket
• Features/Benefits: Eliminates the Need for Multiple Adapter and Subsequently, their Additional Leak-Path and Run Length; Ideal for Confined Application; Lead-Free; Made in USA
• Manufacturer Name: Legend Valve
• Manufacturer Part Number: 302-435
• Material: 304 Stainless Steel
• Material Specification: ASTM D1784/D2846 (CPVC)
• Pressure Rating: 100 PSI CWP
• Process: Investment Cast (Stainless Steel)
• Size A: 1 Inch
• Size B: 1 Inch
• Temperature Rating: 180 Deg F
• Type: Transition, Straight
• UNSPSC Code: 40171707
• UPC: 662545101439
• Additional Information: Lead-Free; Material NBR/Buna-N (O-Ring), Virgin CPVC-41 Resin (Solvent Weld Socket Tubing Adapter)
• Group: Pipe, Valves & Fittings
• Product Type: Transition Fitting
• Product Category: PLUMBING
• Type of Material: CPVC/Stainless Steel
• Size [Specifications]: 1"
• Standards [Specifications]: 100 CWP, max temp. 180 F
• Connection Type [Specifications]: MNPT x CPVC
• Country of Origin (subject to change) [Specifications]: Taiwan, Province of China
