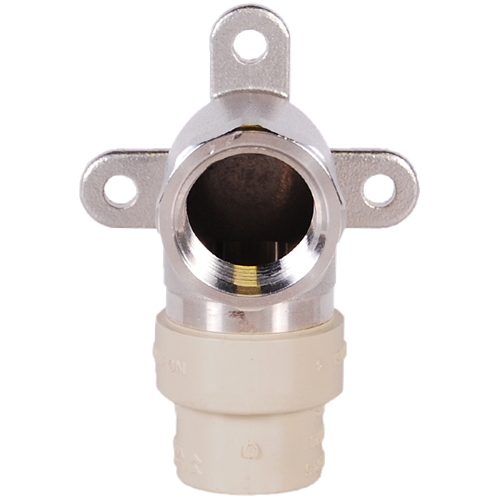

Legend Valve 302-238 1/2 Cpvc X Fip Ss 3 Hole Drop

Product Description

The LEGEND VALVE 302-238 is a 1/2 inch CPVC x FNPT 3-Hole Drop Ear Elbow, constructed from .304 Stainless Steel. This 90-degree fitting is designed for secure plumbing connections, offering durability and resistance to corrosion. It is suitable for various applications, but not intended for use in pot filler installations.

• 3-Hole Drop Ear Elbow design for secure mounting.
• Constructed from .304 Stainless Steel for durability.
• CPVC x FNPT end style for reliable connections.

Product Highlights

This 90-degree drop ear elbow provides a robust stainless steel connection for CPVC and FNPT systems, ideal for general plumbing installations.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 302-238
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Manufacturer: LEGEND VALVE
• Nominal Size: 1/2 in
• Connection Type: CPVC x FNPT
• Country of Origin: Taiwan, Province of China
• UPC: 662545115658
• Application Restriction: Not for use in a pot filler application.
• Fitting Type: 90 deg Drop-Ear Elbow
• Material: 304 Stainless Steel
• Pressure Rating: 100 psi CWP
• Temperature Rating: 180 deg F
• MPN: 302-238
• Number of Holes: 3
• Finish: No Finish Group
• Applicable Standard: NSF/ANSI 61
• Application: Potable Water
• Angle: 90 deg
