Legend Valve 302-231 1/2 CPVC x FIP 3 Hole Drop Ea

Product Description

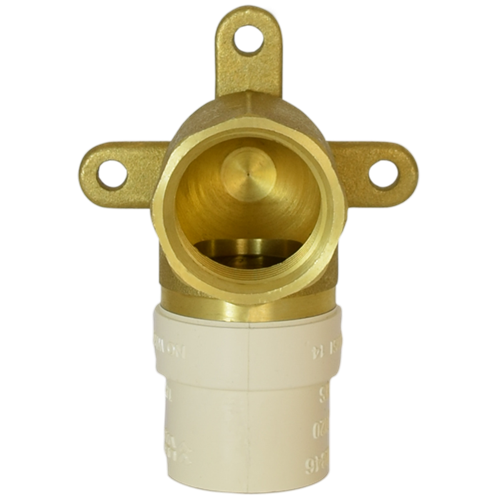

The LEGEND VALVE 302-231 is a 1/2 CPVC x FIP 3-Hole Drop Ear Elbow. It is manufactured using the latest technologies for material consistency and dimensional tolerances. The full-length drop-ears extend beyond the elbow's body, providing ample tool access when driving screws. Classified as a Class 150 malleable iron fitting.

• Manufactured using the latest technologies for material consistency and dimensional tolerances
• Full-length drop-ears extend beyond the elbow's body, providing ample tool access when driving screws
• Classified as a Class 150 malleable iron fitting, (rated at 150 psi) they are test pressure rated by UL and factory mutual at 300 and 500 psi, configuration-specific

Product Highlights

This elbow fitting is FM Approved and UL Listed. It features CPVC x FNPT end styles and is suitable for various plumbing applications.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 302-231
• Country of Origin: Taiwan, Province of China

Technical Specifications

• End Style: CPVC x FNPT
• Fitting/Connector Type: 90 deg Drop-Ear Elbow
• Length: 2.65 in
• Material: Brass
• Nominal Size: 1/2 in
• Pressure Rating: 125 psi
• Temperature Rating: 180 deg F
• Type: 3-Hole
• Manufacturer: LEGEND VALVE
• Size: 1/2"
• Connection Type: CPVC x FNPT
• Country of Origin: Taiwan, Province of China
• Configuration: CPVC x FNPT
• Connection Size 1: 1/2 in
• Connection Size 2: 1/2 in
• Connection Type 1: CPVC
• Connection Type 2: FNPT
• Fitting Type: Elbow
• Material Construction: Lead-Free Forged Brass
• Product Type: Elbow Fitting
