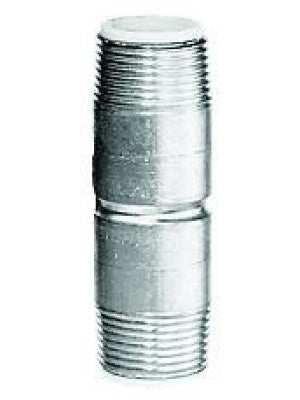

Legend Valve 301-507 2 T-575 Dielectric Nipple 425 psi 4 inch

Product Description

The Legend Valve 301-507 is a 2-inch by 4-inch T-575 dielectric nipple. This product is designed to connect dissimilar materials such as red brass or bronze with black and galvanized steel or malleable iron. It features a plastic lining to reduce galvanic corrosion. The durable construction includes a galvanized steel body and PEX plastic liner.

• Connection size of 2 inches
• Pressure rating up to 425 psi
• Temperature rating of 225 degrees Fahrenheit

Product Highlights

Ideal for domestic or commercial hot or cold water systems and hydronic heating applications, ensuring durability and isolation from dissimilar materials.

Product Information

Standard Information

• Brand: Legend Valve
• MPN: 301-507

Technical Specifications

• Nominal Size: 2 inches
• Length: 4 inches
• Material: Carbon Steel
• Finish: Galvanized
• End Style: MNPT
• Pressure Rating: 425 psi
• Schedule Rating: SCH 40
• Temperature Rating: 225 degrees Fahrenheit
• Series: T-575
• Standards/Certifications: ANSI/ASME B1.20.1, ASTM F1545 - 2009
• Warranty: 5/25 Years
