Legend Valve 301-503 Dielectric Nipple 3/4 X 3 Inch 425 Psi

Product Description

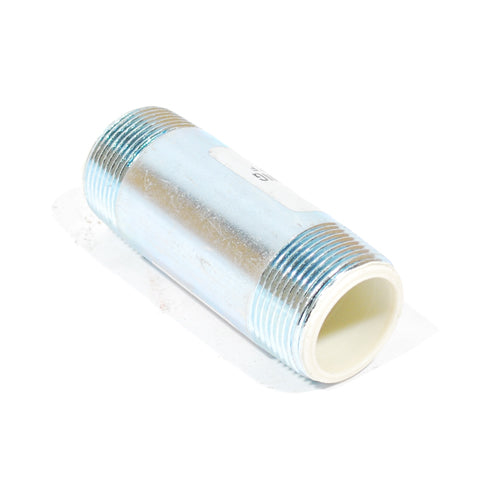

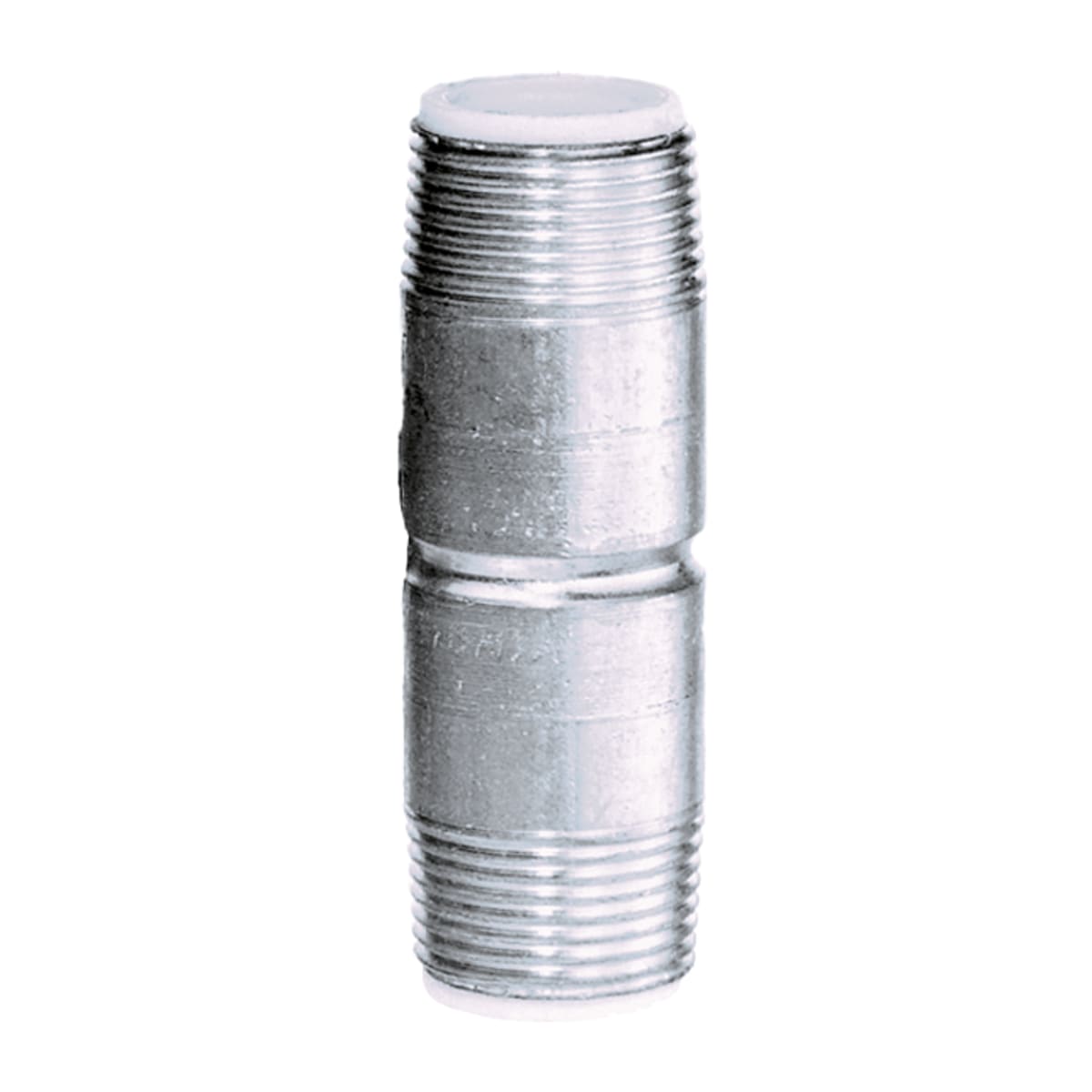

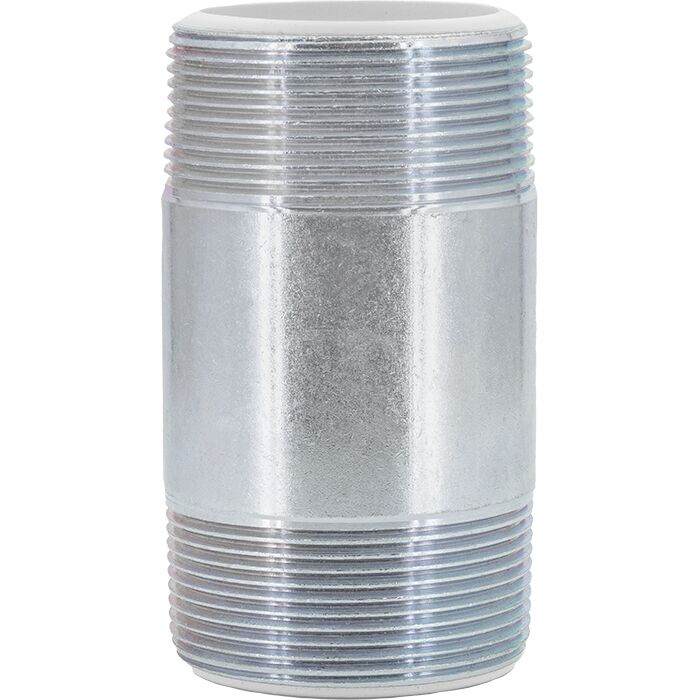

The LEGEND VALVE 301-503 is a T-575 dielectric nipple designed to prevent galvanic corrosion at the transition point between dissimilar metals in plumbing systems. Measuring 3/4 inch in diameter and 3 inches in length, this fitting is rated for service up to 425 PSI at a maximum temperature of 225 degrees F. Plumbers install dielectric nipples at water heater connections, boiler supply and return lines, and anywhere copper pipe meets steel or galvanized fittings. The dielectric sleeve isolates the two metals, stopping the electrochemical reaction that causes accelerated corrosion and premature joint failure.

This nipple is suited for residential and light commercial potable water and hydronic heating applications. It is commonly installed at water heater inlet and outlet ports, at boiler connections, and at any point where copper tubing transitions to a threaded steel or galvanized iron fitting. Its compact 3/4 inch by 3 inch profile fits standard service locations without requiring additional clearance. Licensed plumbers and pipefitters working on domestic hot and cold water systems or low-pressure hydronic loops are the primary installers of this fitting.

Key Features

• Rated 425 PSI at 225 degrees F maximum service temperature
• 3/4 inch thread size with 3 inch body length for standard water heater and boiler port applications
• Dielectric sleeve isolates dissimilar metals to prevent galvanic corrosion
• Compact single-unit weight of 0.25 pounds for easy single-hand installation
• T-575 series construction for consistent thread engagement and sealing

Compatibility

Designed as an OEM-style replacement dielectric nipple for 3/4 inch threaded connections in residential and commercial plumbing systems where dissimilar metal isolation is required.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before removing any existing fitting. Apply thread sealant or PTFE tape to male threads before tightening to avoid leaks. Do not over-torque threaded connections, as this can crack the internal dielectric sleeve and compromise galvanic isolation.

Technical Specifications

• Thread Size: 3/4 inch
• Body Length: 3 inches
• Pressure Rating: 425 psi
• Maximum Temperature: 225 degrees F
• Weight Each: 0.25 pounds
• Each Dimension (L x W x H): 3.1 x 1 x 1 inches
• UPC: 662545011240

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 301-503
