Legend Valve 301-435 1 D.U. Steam Gasket 1 in 1-1/12 in ID x 1-1/58 in OD x 0-1/12 in Thick

Product Description

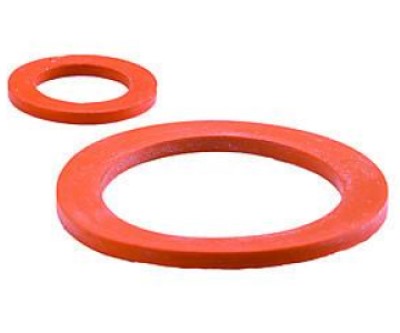

The Legend Valve 301-435 is a durable steam gasket designed for high-temperature applications. Made of rubber, this gasket fits nominal sizes of one inch and features an inside diameter of one point twelve inches and an outside diameter of one point fifty-eight inches. With a maximum temperature rating of three hundred degrees Fahrenheit and a pressure rating of two hundred psi, it provides reliable sealing performance in steam systems.

• Pressure rating of 200 psi.
• Temperature rating of 300 degrees Fahrenheit.
• Suitable for dielectric union applications.

Product Highlights

This steam gasket is ideal for use with dielectric unions in various plumbing systems, ensuring efficient and leak-proof connections.

Product Information

Standard Information

• Manufacturer: Legend Valve
• UPC: 662545011080

Technical Specifications

• Type: High Temperature
• Nominal Size: 1 in
• Inside Diameter: 1.12 in
• Outside Diameter: 1.58 in
• Thickness: 0.12 in
• Shape: Round
• Material: Rubber
• Domestic/Import: Import
• Warranty: 5/25 Years
