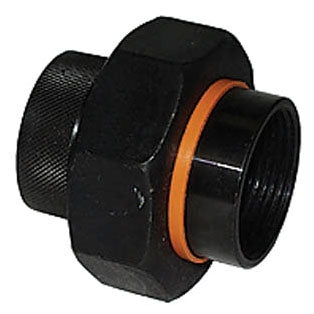

Legend Valve 301-337 1-1/2 Inch Black Dielectric Union for Gas Service

Product Description

The Legend Valve Dielectric Union model 301-337 features robust construction for gas piping systems. This coupling facilitates the seamless integration of different metal pipes, mitigating the risk of galvanic corrosion.

• Compatible with a pressure up to 200 PSI CWP.
• Designed for temperatures up to 180 degrees Fahrenheit.
• Forged from high-strength carbon steel for reliability in commercial settings.

Product Highlights

Fabricated using AISI 1008A carbon steel, the union offers exceptional sealing with its non-conductive elastomer gasket and thermoplastic insert, ensuring complete isolation between connected piping. This design standard complies with ANSI/ASME B16.39 and B1.20.1, confirming its adaptability to various gas applications, making it a go-to solution for plumbing, commercial, and residential setups.

Technical Specifications

• Product ID: 9200
• Type: Dielectric
• Size A and B: 1-1/2 Inch
• Connection: Female Threaded x Female Threaded
• Material: Forged Carbon Steel, Black Finish
• Pressure Rating: 200 PSI Non-Shock CWP
• Temperature: Up to 180 Deg F
• Standards: ANSI/ASME B16.39/B1.20.1, ISO 9002
