Legend Valve 301-323NL 1/2 FPT x FPT Dielectric Union Galv

Product Description

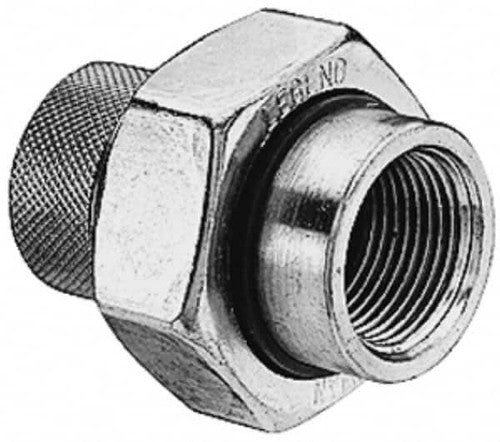

The LEGEND VALVE 301-323NL is a 1/2 inch FPT x FPT dielectric union with a galvanized finish. Constructed from forged steel, this union is designed to reduce stray current and galvanic corrosion in piping systems. It has a maximum pressure of 200 PSI and a temperature rating of 180 degrees Fahrenheit.

• Forged steel construction for durability.
• Reduces stray current and galvanic corrosion.
• Meets ANSI/ASME B16.39 and ANSI/ASME B1.20.1 standards.

Product Highlights

This dielectric union is ideal for residential and commercial applications, ensuring a secure and corrosion-resistant connection between dissimilar metals.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 301-323NL
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Nominal Size: 1/2 IN
• Connection Type: FPT X FPT
• Material: Forged Steel
• Finish: Galvanized
• Maximum Pressure: 200 PSI
• Temperature Rating: 180 DEG F
• Industry Standards: ANSI/ASME B16.39, ANSI/ASME B1.20.1, Meets NSF 372 2 Lead Content Requirement, WQA, U.S Federal Public Law 111-380 Certified
• End Style: FPT
• Pressure Rating: 200 psi CWP
• Manufacturer: LEGEND VALVE
• Applicable Standard: NSF 372, ANSI/ASME B16.39, ANSI/ASME B1.20.1
• Application: Residential and Commercial
• End Connection: Female Threaded x Female Threaded
• Material Specification: AISI 1008A
• Process: Forged
• Size A: 1/2 Inch
• Size B: 1/2 Inch
• Type: Dielectric
• Pipe Size: 0.5in
• Maximum Working Temperature: 180 F
• Standards: ANSI 372 Listed
