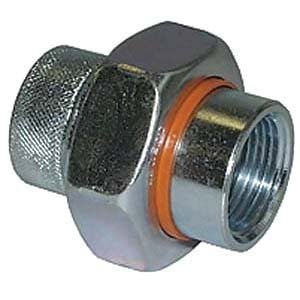

Legend Valve 301-306 1-1/4 T-572 Dielectric Union

Product Description

The Legend Valve 301-306 is a 1-1/4 inch T-572 dielectric union. This fitting is designed for pipe connections in plumbing systems. It features a female national pipe thread (FNPT) end style. The union has a length of two point five three inches and can handle pressure ratings up to 200 psi.

• Constructed from forged carbon steel
• Galvanized finish for corrosion resistance
• Includes self-aligning non-conductive elastomer gasket

Product Highlights

This fitting provides a positive seal to avoid leaks and reduce corrosion in piping systems. It is ideal for both residential and commercial applications.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Category: Plumbing
• Part Number: 301-306

Technical Specifications

• Nominal Size: 1-1/4 inch
• Connection Type: FNPT
• Pressure Rating: 200 psi
• Temperature Rating: 180 degrees F
• Material: Forged carbon steel
• Finish: Galvanized
• Length: 2.53 inches
• Width: 2-3/4 inches
