Legend Valve 301-305 1 T-572 Dielectric Union Power 1 EA

Product Description

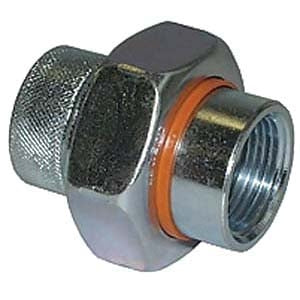

The Legend Valve 301-305 is a 1 T-572 dielectric union designed for plumbing applications. This union features a nominal size of one inch and FNPT end style. It is constructed from forged carbon steel with a galvanized finish for durability. The length is two and a half inches, and it is rated for a pressure of 200 psi. This product is suitable for a maximum temperature of 180 degrees Fahrenheit.

• UL listed and FM approved for fire suppression
• Self-aligning, non-conductive elastomer gasket for a positive seal
• Test pressure rated by UL and factory Mutual at 300 and 500 psi

Product Highlights

This dielectric union is ideal for use in residential and commercial plumbing systems, effectively reducing stray current and galvanic corrosion.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Warranty: 5/25 Years

Technical Specifications

• Dimensions: 2.26 in W
• Length: 2-1/2 in
• Nominal Size: 1 in
• Material: Forged Carbon Steel
• Pressure Rating: 200 psi
• Temperature Rating: 180 deg F
• Series: T-572
• End Style: FNPT
