Legend Valve 301-204PNL 3/4 inches MNPT x Press P-571NL DU

Product Description

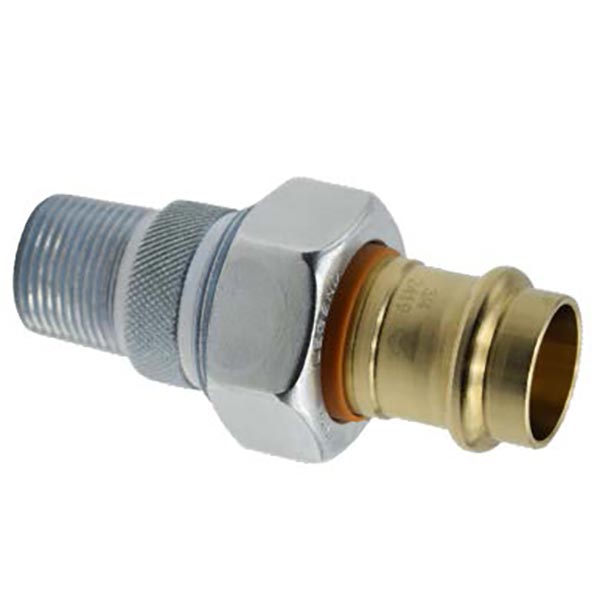

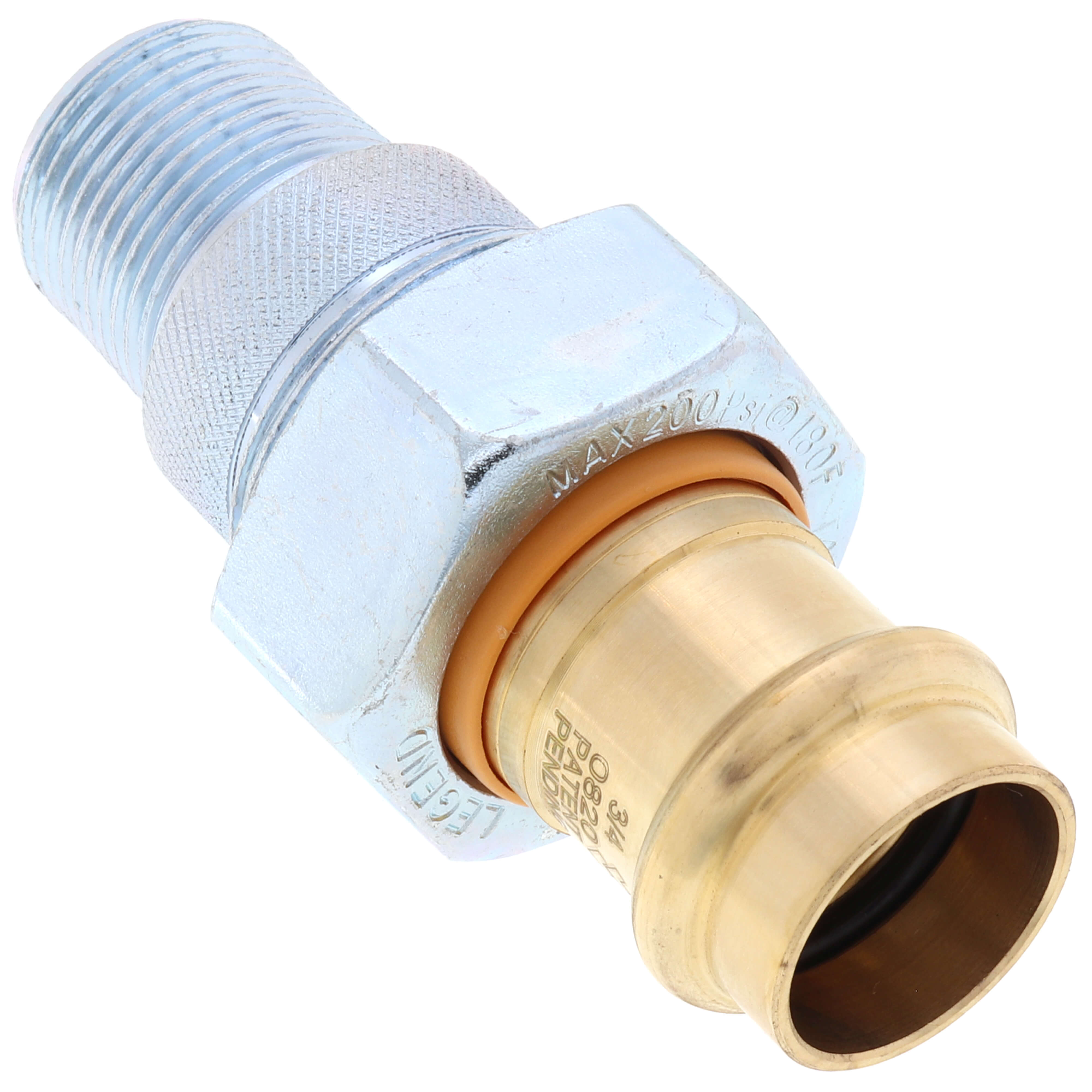

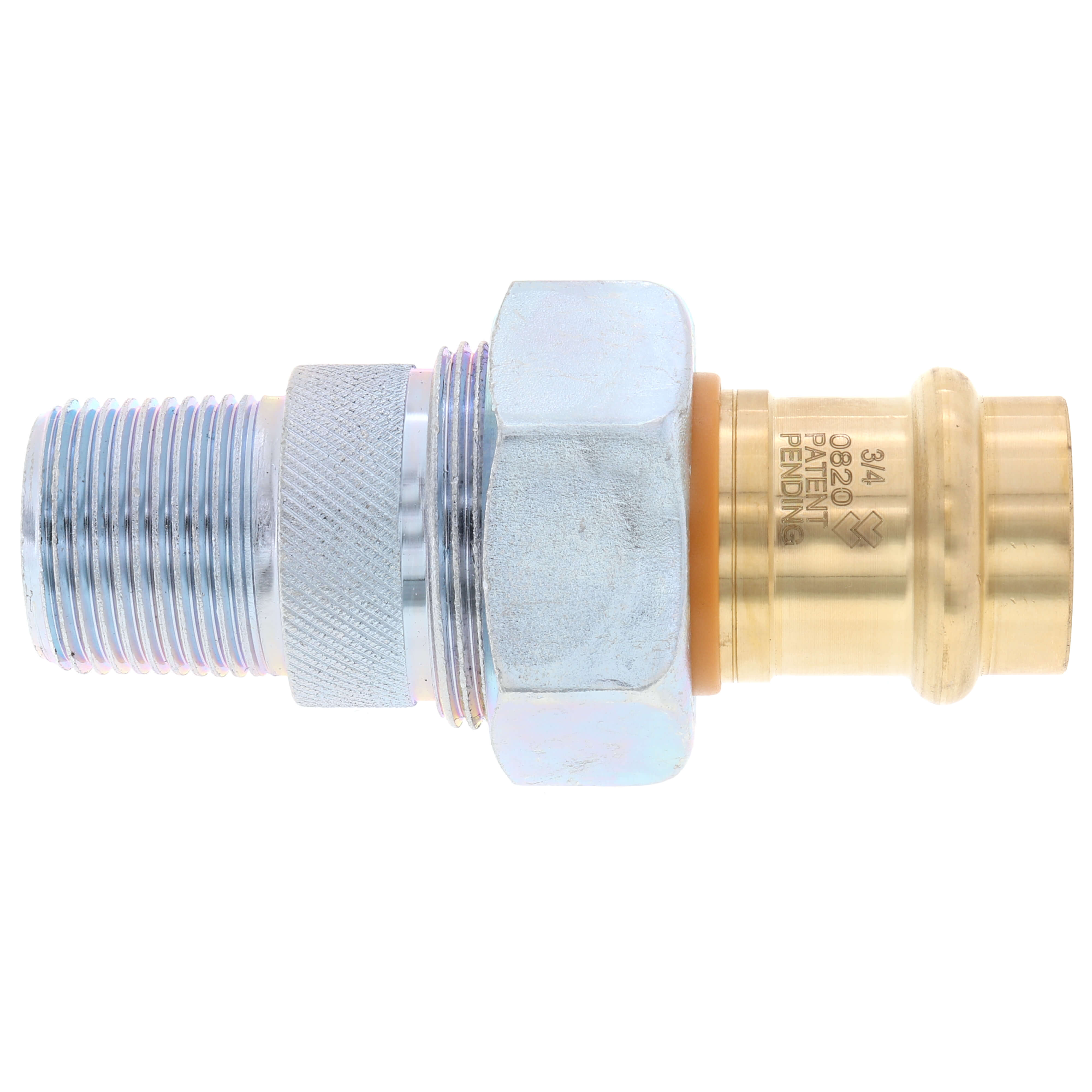

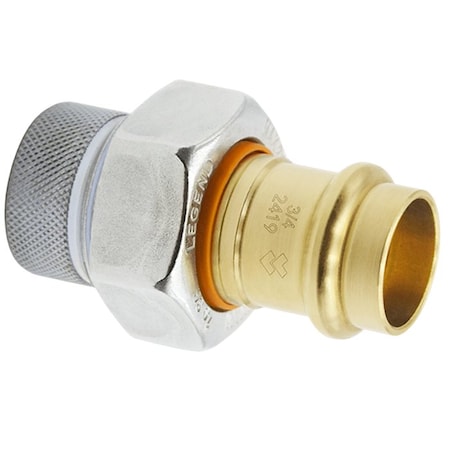

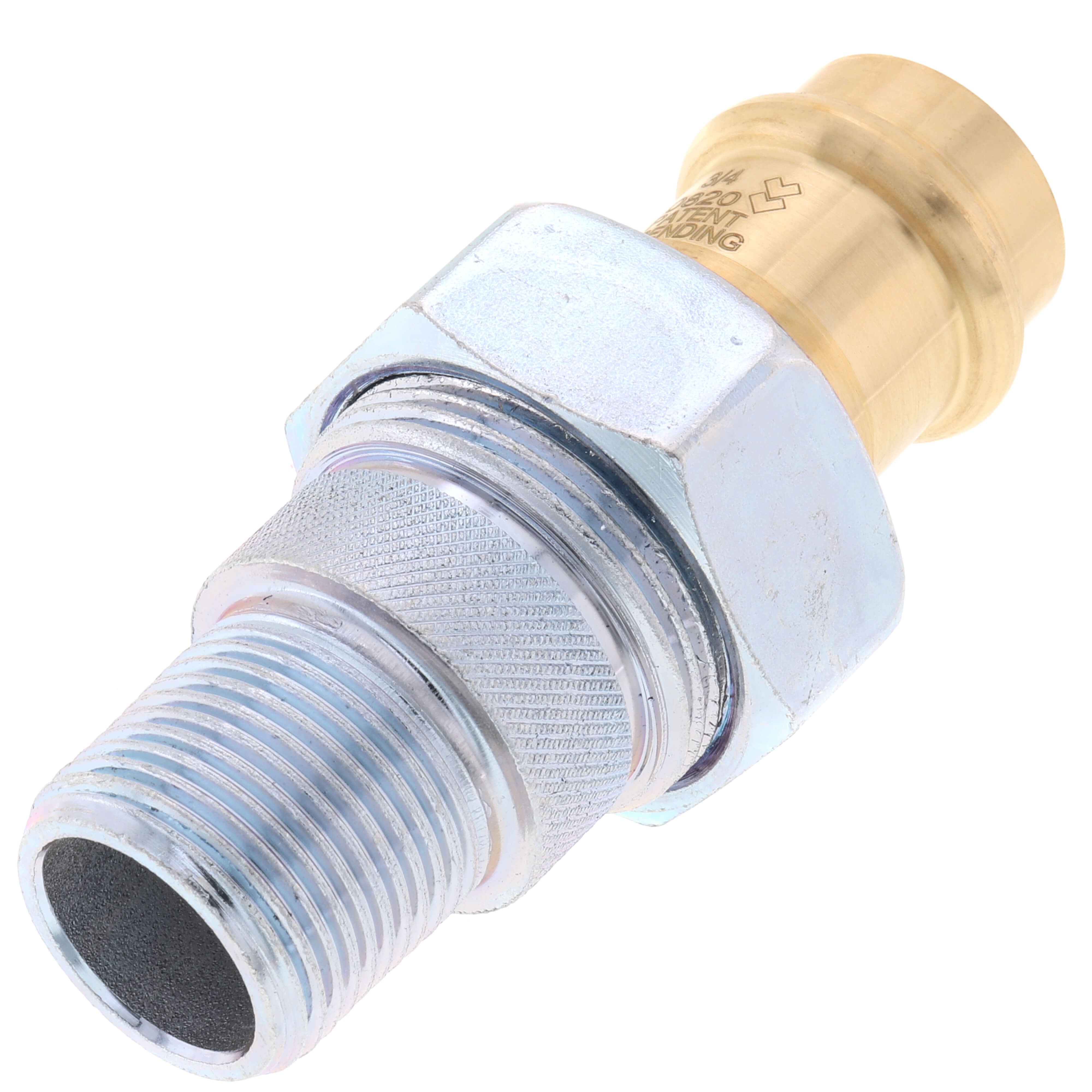

The Legend Valve 301-204PNL is a 3/4" MNPT x Press P-571NL dielectric union. Constructed with high-strength, galvanized forged steel, it is designed for residential and commercial applications. It reduces stray current and galvanic corrosion where two dissimilar metals are joined. It is manufactured for installation onto ASTM B88 types K, L and M hard drawn copper tubing.

• Features a self-aligning, non-conductive elastomer gasket and thermoplastic insert to create a positive seal.
• Made to reduce stray current and galvanic corrosion where two dissimilar metals are joined.
• Lead-free design is suitable for all no-lead potable water installations.

Product Highlights

This dielectric union is designed to reduce galvanic corrosion and stray current. It features a galvanized forged steel construction and is suitable for residential and commercial applications.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 301-204PNL
• Country of Origin: Import

Technical Specifications

• End Style: MNPT x Press
• Finish: Hot Dipped Galvanized
• Material: Steel
• Method of Manufacture: Forged
• Nominal Size: 3/4 in
• Pressure Rating: 200 psi CWP
• Series: P-571NL
• Temperature Rating: Up to 180 deg F
• Mfg Standards/Approvals: NSF/ANSI 61, NSP/ANSI 372, ANSI/ASME B1.20.1, ANSI/ASME B16.51
• Product Type: Dielectric Union
• Connection Type: Press x MNPT
• Connection Size 1: 3/4 in
• Connection Size 2: 3/4 in
• Connection Type 1: MNPT
• Connection Type 2: Press
