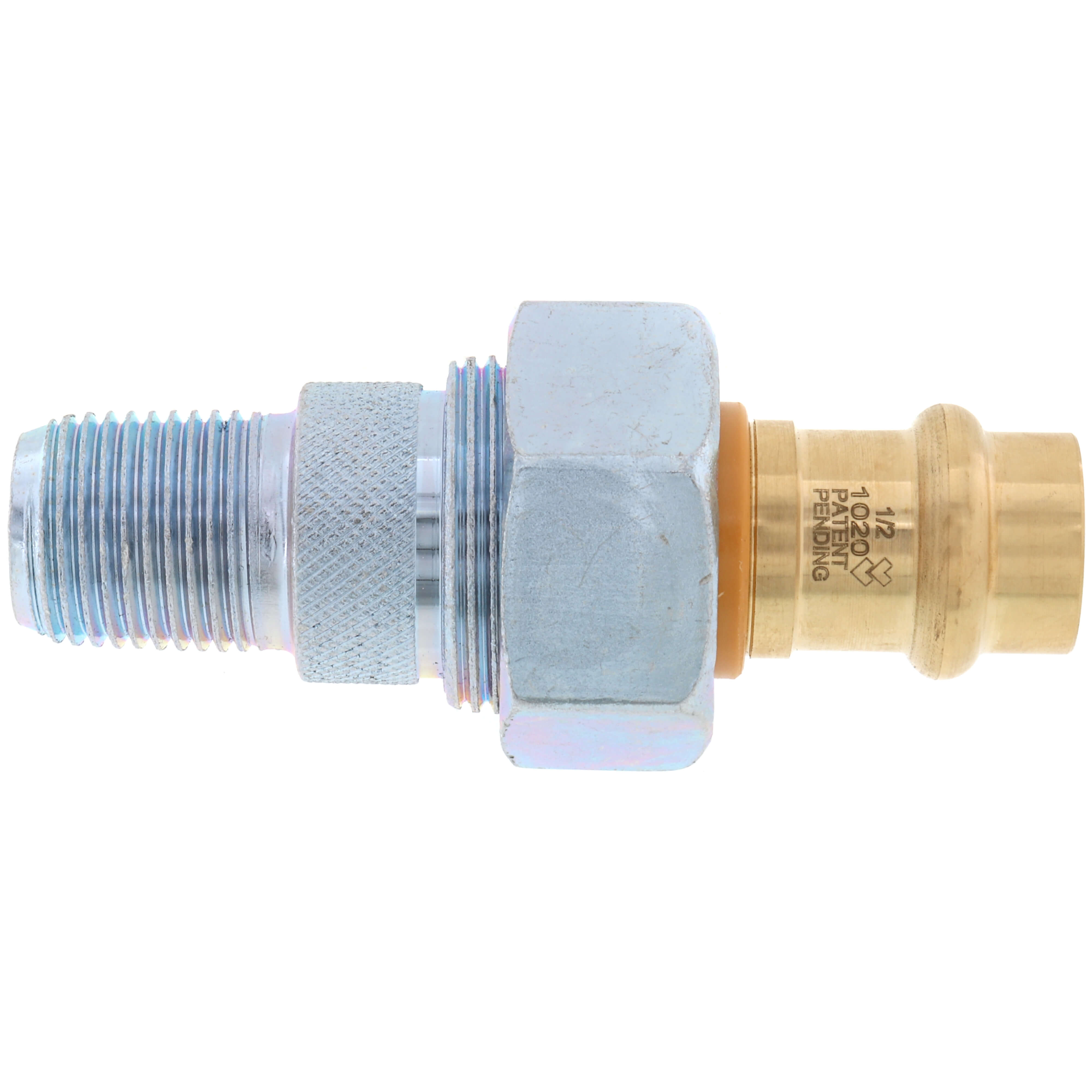

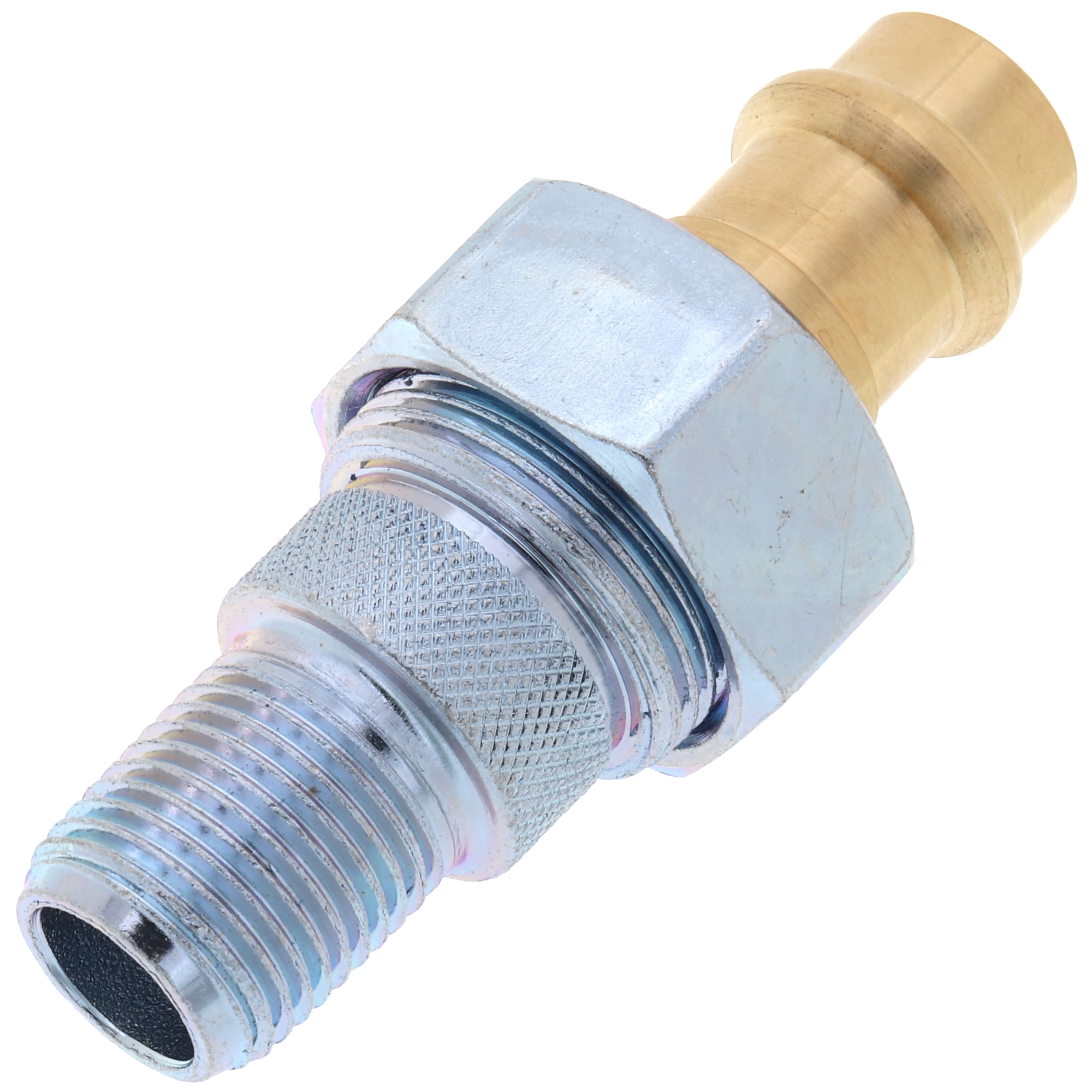

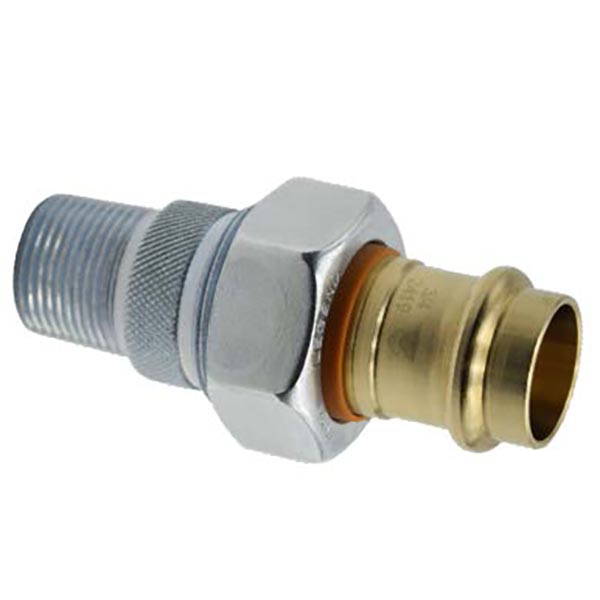

Legend Valve 301-203PNL 1/2 MNPT x PRESS P-571NL Dielectric Union

Product Description

The Legend Valve 301-203PNL is a 1/2 inch MNPT x PRESS P-571NL dielectric union. It has a lead-free design suitable for potables. This union is suitable for residential and commercial use.

• Lead-free design ensures safety for potable water installations.
• High-strength, galvanized forged steel construction.
• Designed for ASTM B88 types K, L, and M hard-drawn copper tubing.

Product Highlights

This union prevents stray current and galvanic corrosion where two dissimilar metals join. The self-aligning gasket creates a positive seal and isolation between the piping ends.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Series: P-571NL

Technical Specifications

• Dimensions: 3.58 inches length, 1.63 inches height
• Pressure Rating: 200 psi CWP
• Material: Lead-free forged steel
• Temperature Rating: Up to 180 degrees Fahrenheit
• Connection Style: MNPT x Press
• Method of Manufacture: Forged
• Domestic/Import: Import
