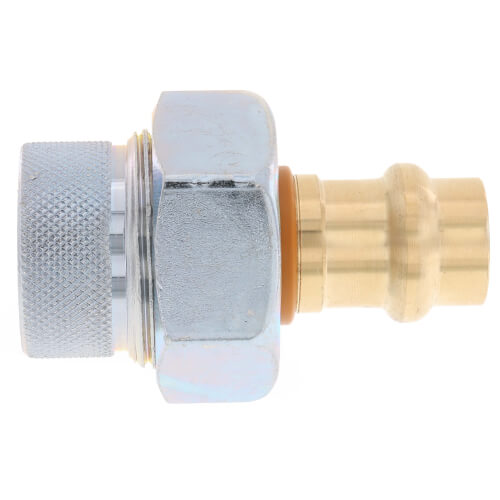

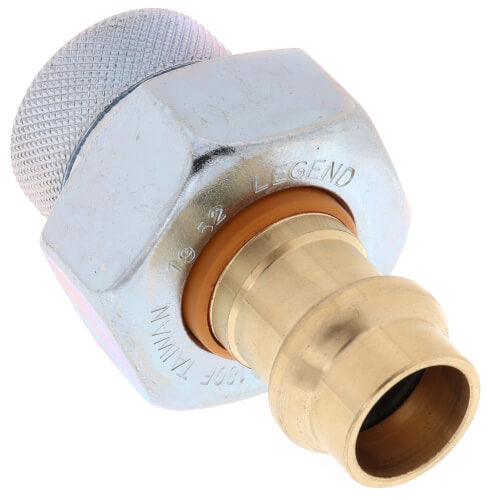

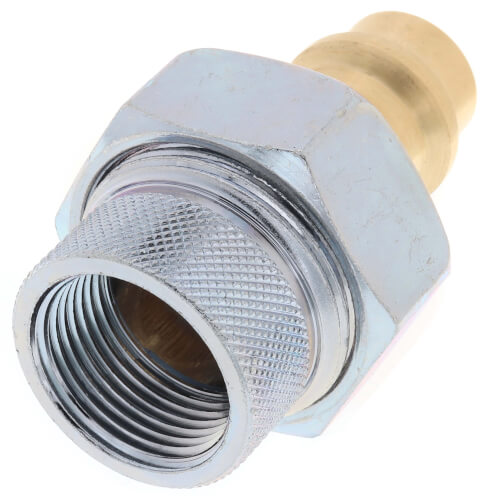

Legend Valve 301-123PNL Dielectric Union FNPT x Press P-571NL

Product Description

Legend Valve's 301-123PNL Dielectric Union is a lead-free fitting designed to ensure a secure and reliable connection between dissimilar metal pipes. The dielectric union minimizes the risk of galvanic corrosion and stray currents, making it suitable for potable water systems. The fitting is constructed from high-strength, galvanized forged steel, ideal for both residential and commercial use. This dielectric union complies with all relevant national lead-free laws.

• Lead-free design
• Reduces galvanic corrosion
• Suitable for various applications

Product Highlights

The Legend Valve 301-123PNL Dielectric Union is designed for installation with ASTM B88 types K, L, and M hard-drawn copper tubing. It is not recommended for use with coiled soft copper tubing.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer: Legend Valve

Technical Specifications

• MPN: 301-123PNL
• Series: P-571NL
• Nominal Size: 3/4 inch
• End Style: FNPT x Press
• Material: Steel
• Finish: Hot Dipped Galvanized
• Method of Manufacture: Forged
• Pressure Rating: 200 psi CWP
• Temperature Rating: Up to 180 degrees Fahrenheit
• Dimensions: 2.7 inches in length, 1.86 inches in height
• Compliance: ANSI/ASME B16.51, ASTM B88, ANSI/NSF 372, AISI Alloy 1008A
• Country of Origin: Taiwan, Province of China
