Legend Valve 301-121NL 4 inches Flanged Dielectric Union Lead Free

Product Description

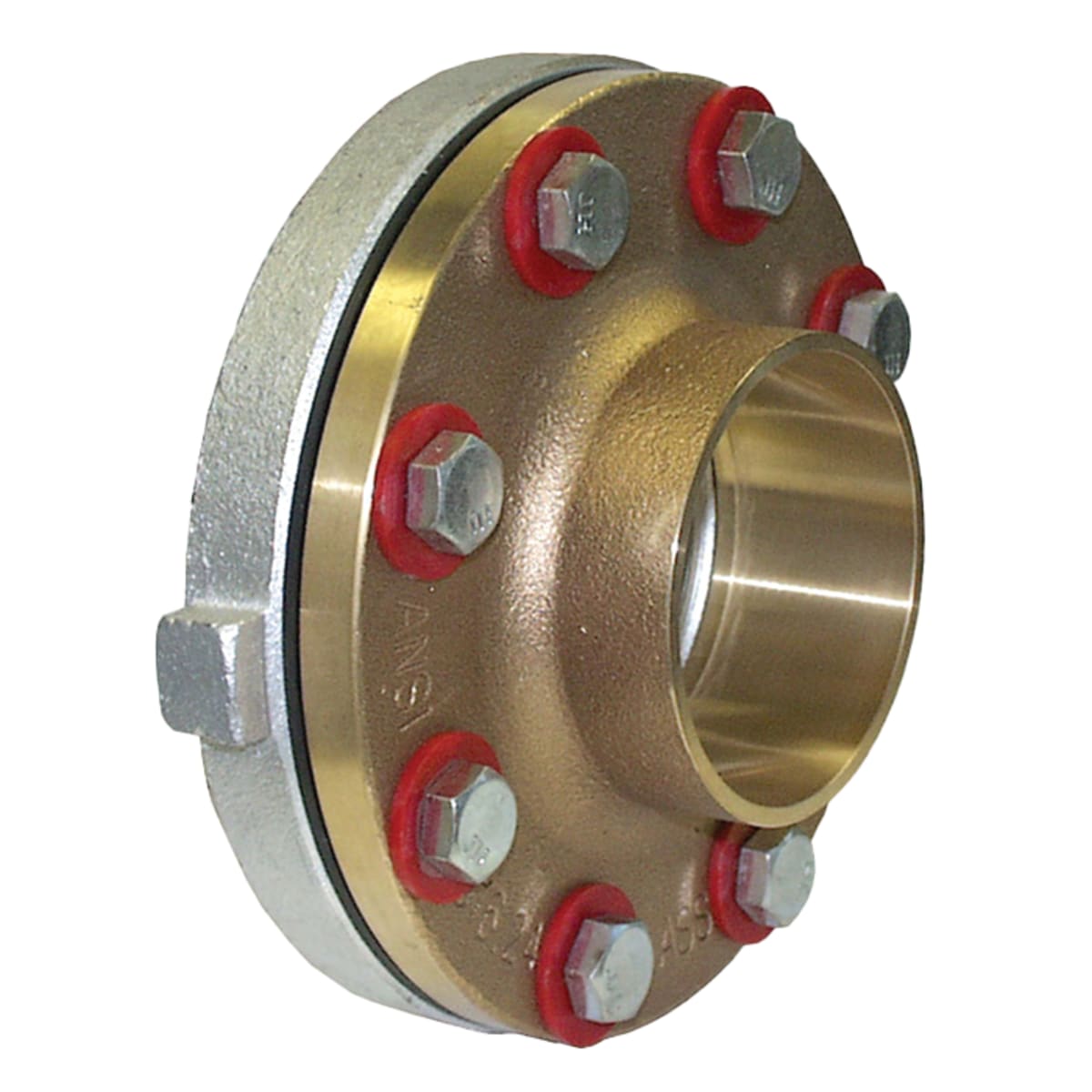

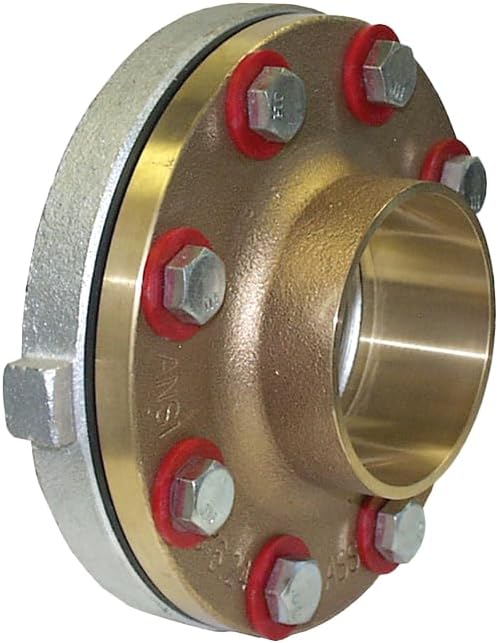

The LEGEND VALVE 301-121NL is a 4" flanged dielectric union, designed to reduce stray current and galvanic corrosion when joining dissimilar metals. Constructed from cast iron with a galvanized finish, it conforms to industry standards ANSI/ASME B16.24, ANSI/ASME B1.20.1, and ANSI/ASME B16.18. This lead-free union is suitable for potable water applications.

• Flanged Dielectric Union
• Lead Free
• All fittings are UL listed and FM approved for fire suppression

Product Highlights

The LEGEND VALVE 301-121NL Dielectric Union is ideal for reducing corrosion in systems with dissimilar metals.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 301-121NL
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Nominal Size: 4 IN
• Connection Type: Flanged
• Material: Cast Iron
• Material Standard: ASTM A48
• Finish: Galvanized
• Outside Diameter: 9.12 IN
• Length: 4.01 IN
• Maximum Pressure: 200 PSI
• Temperature Rating: 180 DEG F
• Industry Standards: ANSI/ASME B16.24, ANSI/ASME B1.20.1, ANSI/ASME B16.18, WQA, U.S Federal Public Law 111-380 Certified
• Other Physical Dimension: 1.02/0.63 IN Flange Thickness, 7-1/2 IN Bolt Circle Diameter
• Domestic/Import: Import
• Pressure Rating: 200 psi
• Manufacturer: LEGEND VALVE
• Size: 4"
• Type: Dielectric Union
• Specific Fitting Shape: Dielectric Union
• Basic Pipe Fitting Shape: Union
• Standards: 180°F Max. Temp., 200 CWP
• Product Type: Dielectric Union
