Legend Valve 301-108PNL 2 FNPT x Press P-571NL DU

Product Description

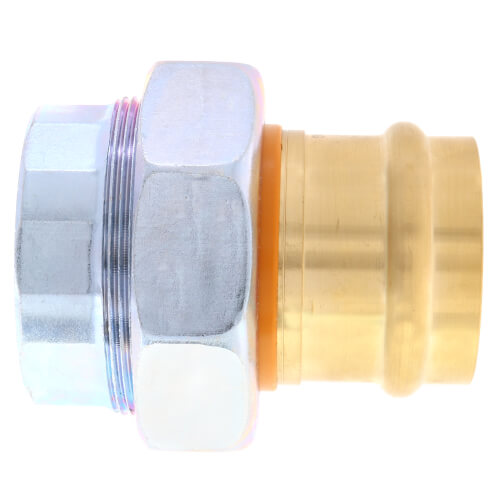

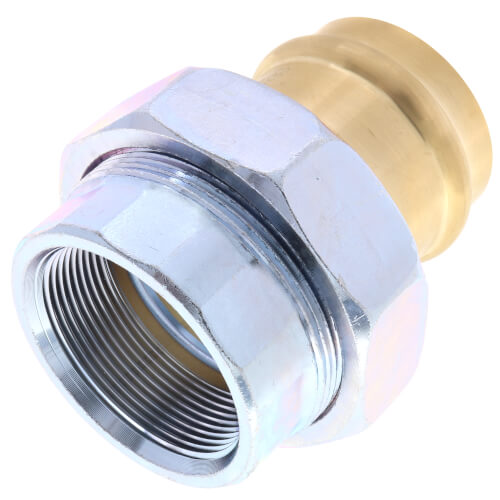

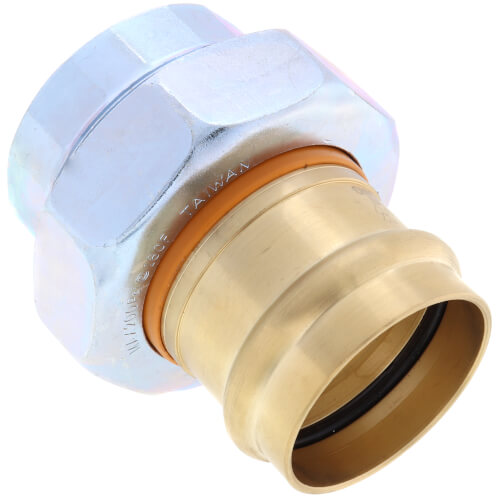

The Legend Valve 301-108PNL is a dielectric union designed to connect FNPT to Press connections. It is made of high-strength, galvanized forged steel, making it suitable for both residential and commercial applications.

• Lead-free design
• 200 psi CWP pressure rating
• Manufactured for use with ASTM B88 copper tubing

Product Highlights

This dielectric union prevents galvanic corrosion due to its non-conductive elastomer gasket and thermoplastic insert. It ensures a secure seal and complete isolation between tubing and piping ends.

Product Information

Standard Information

• Brand: Legend Valve
• MPN: 301-108PNL

Technical Specifications

• Material: Steel
• Finish: Hot Dipped Galvanized
• End Style: FNPT x Press
• Nominal Size: 2 inches
• Length: 4 inches
• Height: 4 inches
• Pressure Rating: 200 psi CWP
• Temperature Rating: Up to 180 degrees F
• Series: P-571NL
• Country of Origin: Taiwan, Province of China
• Compliance Standards: ANSI/ASME B16.51, ASTM B88, ANSI/NSF 372, PROP65
