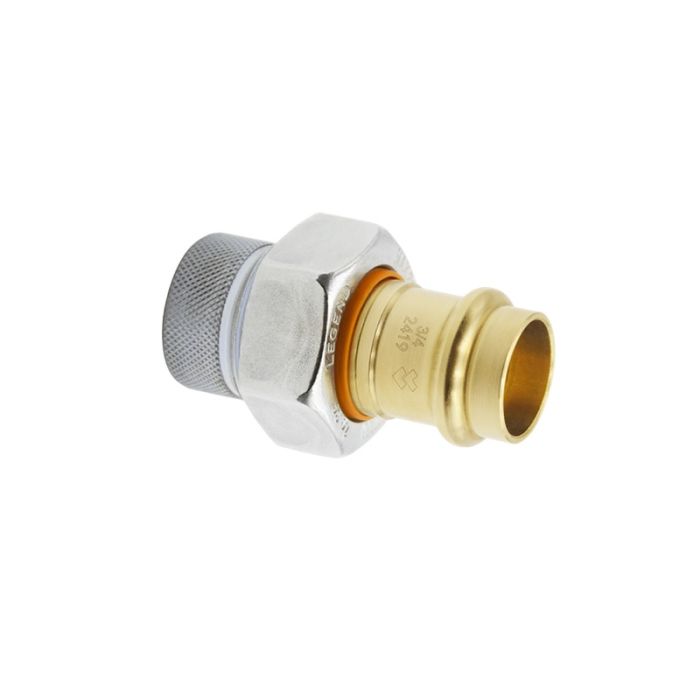

Legend Valve 301-107PNL 1-1/2 inches FNPT x Press P-571NL DU

Product Description

The LEGEND VALVE 301-107PNL is a 1-1/2" FNPT x Press P-571NL DU. It is intended for both residential and commercial applications and manufactured for installation onto ASTM B88 types K, L and M hard drawn copper tubing.

• Configuration: FNPT x Press
• Nominal Size: 1-1/2 in
• Pressure Rating: 200 psi CWP

Product Highlights

This lead-free dielectric union features a high-strength, galvanized forged steel construct and is suitable for up to 180 deg F.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: LEG301-107PNL
• Country of Origin: Import

Technical Specifications

• UPC: 662545136394
• Size: 1-1/2"
• Configuration: FNPT x Press
• Connection Type: Press x FNPT
• Product Material: Copper
• MPN: 301-107PNL
• End Style: FNPT x Press
• Finish: Hot Dipped Galvanized
• Material: Steel
• Method of Manufacture: Forged
• Pressure Rating: 200 psi CWP
• Series: P-571NL
• Temperature Rating: Up to 180 deg F
• No lead: Yes
• Length: 3-1/2 in
